Product Name 315MHz (300 to 346) Bandpass Filter Ultra Small Size Low Insertion Loss with SMA Connector for VTX Receivers
Item NO. F53106
Weight 0.04 kg = 0.0882 lb = 1.4110 oz
Category Computer Accessories
Creation Time 2024-09-18

315 (300 to 346) MHz Bandpass Filter Ultra Small Size Low Insertion Loss with SMA Connector for VTX Receivers

Features:


Ultra small size, low insertion loss, excellent selectivity,

high out-of-band rejection, high power handling


Applications:


300 to 346 MHz (covering 315 MHz) For use in VTX receivers,

laboratories and other highly selective applications.


Model: FBP-315


Impedance: 50 Ohms


Centre frequency: 323 MHz


Centre frequency insertion loss: <= 3.5 dB @ 323 MHz


3 dB bandwidth: 290 to 360 MHz


30 dB bandwidth: 250 to 440 MHz


Greater than 50 dB Bandwidth: DC to 200 MHz & 600 to 2000 MHz


Maximum Carrying Power: 5 W (37 dBm)

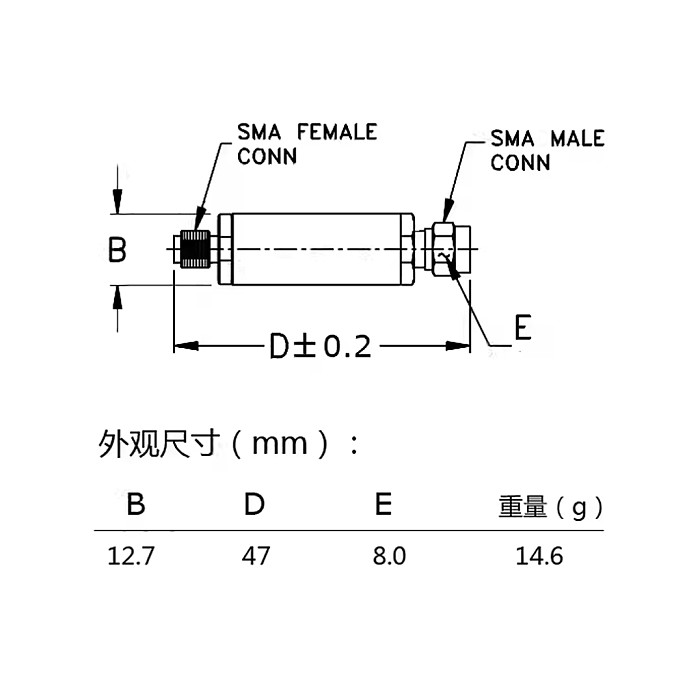

Interface: SMA-M, SMA-F


Frequency Response Graph (Blue-green line is S21, Yellow-brown line is S11,

Sweep range: 0.1-800 MHz,

Purple line is S21, Sweep range: 0.1-2000 MHz,

Vertical scale is 10 dB per cell, 3 dB bandwidth is marked on the graph):
