300-470MHz UHF Wireless Remote Control ISM Band Bandpass Filter Compact Size with SMA Connector
-
Detail
- Product Name: 300-470MHz UHF Wireless Remote Control ISM Band Bandpass Filter Compact Size with SMA Connector
- Item NO.: F53105
- Weight: 2024 kg = 4462.1562 lb = 71394.4990 oz
- Volume: 1 CBM
- Category: Computer Accessories
- Creation Time: 2024-09-18
300-470MHz UHF Wireless Remote Control ISM Band Bandpass Filter Compact Size with SMA Connector
Features:
Compact and lightweight, excellent selectivity, high out-of-band rejection
Applications:
ISM band applications
315, 433MHz UHF remote control
Laboratory and other high selectivity applications

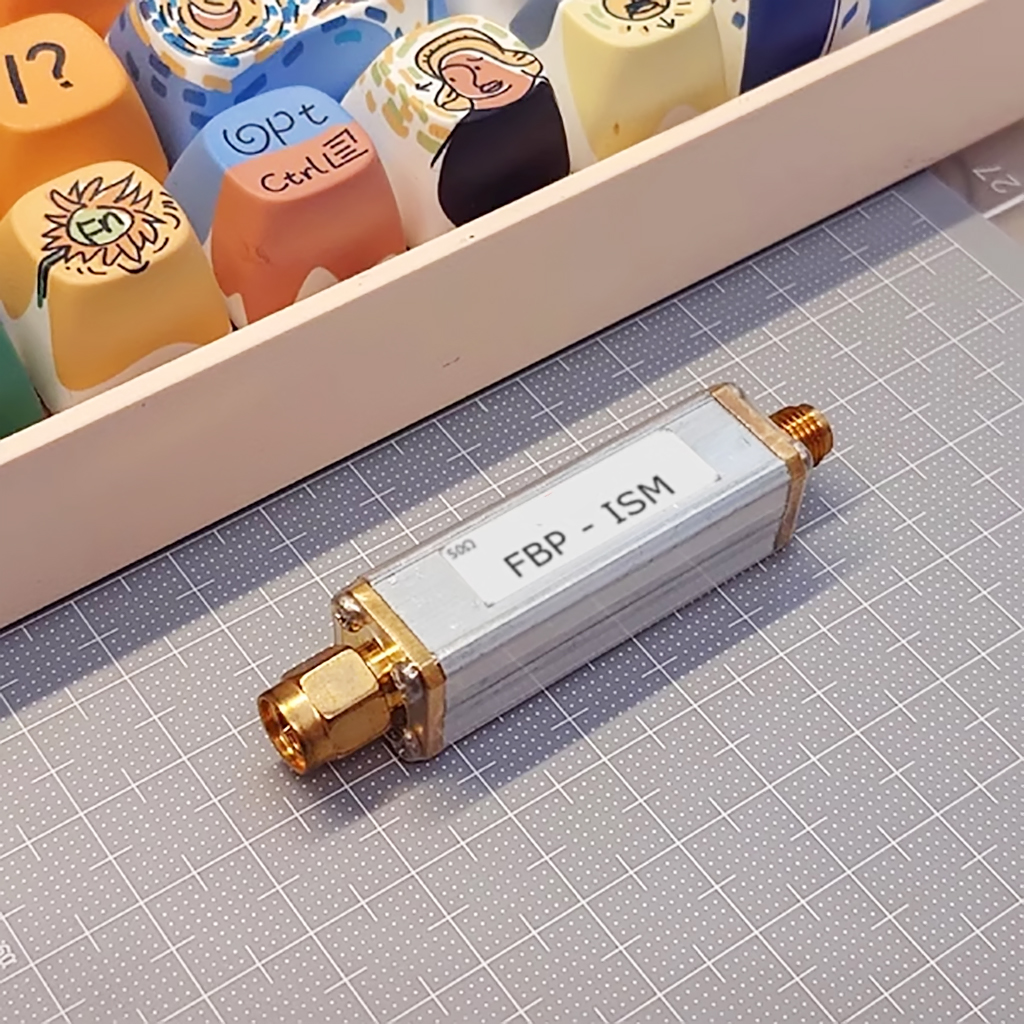

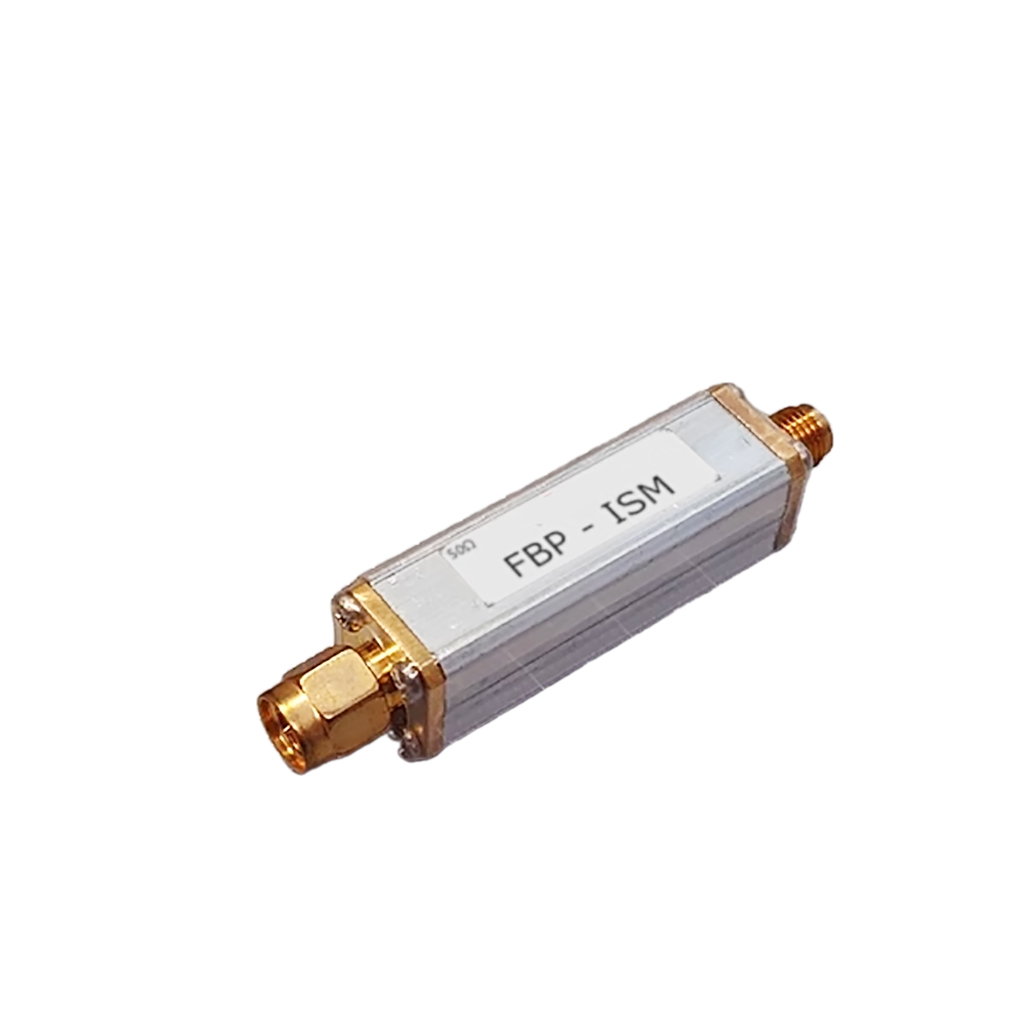

Model: FBP-ISM
Impedance: 50 Ohms
Centre frequency: 385 MHz
Centre frequency insertion loss: 1.5 to 2.0 dB @385 MHz
3 dB bandwidth: 285 to 490 MHz
30 dB bandwidth: 220 to 650 MHz
Greater than 50 dB Bandwidth: DC ~ 150 MHz & 780 ~ 1800 MHz
Maximum Carrying Power: 3 W (35 dBm)
Interface: SMA-M, SMA-F

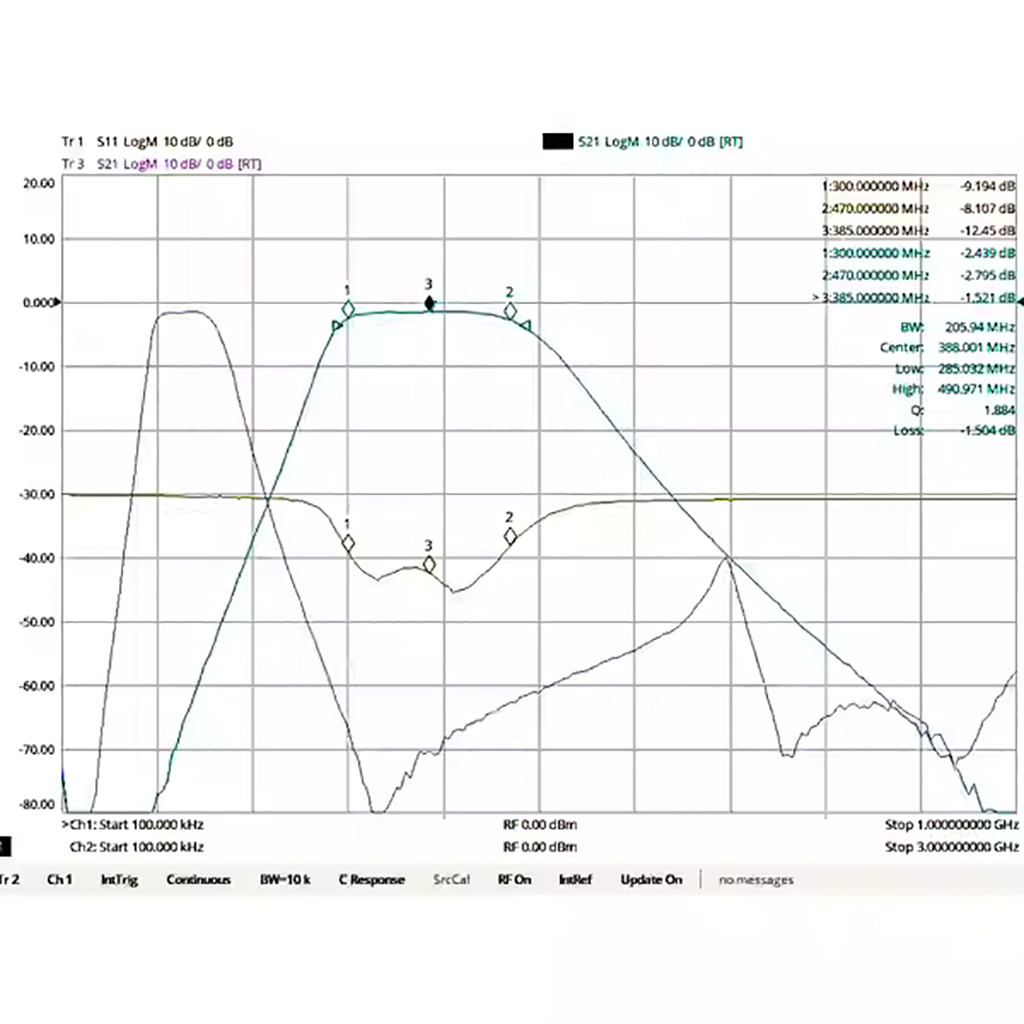

Insertion Loss Diagram (Blue-green line is S21, Yellow-brown line is S11,
Sweep range: 100kHz - 1000MHz.
Purple line is S21, Sweep range: 0.1-3000MHz.
Vertical scale is 10dB/div, 3dB bandwidth is marked):
