Copy| Product Name | 1PCS IFlight For NIDICI Series Brushless Motor 2807 1300KV/ 2809/ 1250KV / 2812 3314 900KV/ 3115 900KV/ 1250KV/ Motor For Drone |
| Item NO. | F54502 F54506 |
| Weight | 0.09 kg = 0.1984 lb = 3.1747 oz |
| Category | DIY RC Drone Accessories |
| Creation Time | 2025-08-15 |
IFlight For NIDICI Series Motor 2807 1300KV/ 2809 1250KV /2812 3314 900KV/ 3115 900KV/ 1250KV/ Brushless Motor 8-9-10inch Propeller for RC FPV Drone
Notice
28 series - For 7 inches Frame Kit
3115/3314 - for 10 inches Frame Kit
Description
For NIDICI Affordable Series Motor, is designed to provide high-quality performance at an economical price. This series combines cost-effectiveness with reliable power, making it an excellent choice for hobbyists and enthusiasts who seek value without compromising on quality.
Specifications
KV: 1300KV
Weight(included wire): 60.5g
Dimension: Ф33.55*34mm
Interphase Resistance: 61.15mΩ
Input Volts: 24V
Peak Current: 40.28A
Max Watt: 959.9W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 13.65mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*5*5
Winding: Single Strand copper winding
Packing List
1 x for NIDICI 2807 1300 Brushless Motor
4 x M3x8 screws
1 x M5 Flange Nut
Description
For NIDICI Affordable Series Motor, is designed to provide high-quality performance at an economical price. This series combines cost-effectiveness with reliable power, making it an excellent choice for hobbyists and enthusiasts who seek value without compromising on quality.
Specifications
KV: 1250KV
Weight(included wire): 60.4g
Dimension: Ф33.55*39.3mm
Interphase Resistance: 65mΩ
Input Volts: 24V
Peak Current: 49.23A
Max Watt: 1147.1W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 15.15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*5*5
Winding: Single Strand copper winding
Packing List
1 x for NIDICI 2809 1250KV Brushless Motor
4 xM3*10 screws
1 x M5 Flange Nut
Description
For NIDICI Affordable Series Motor, is designed to provide high-quality performance at an economical price. This series combines cost-effectiveness with reliable power, making it an excellent choice for hobbyists and enthusiasts who seek value without compromising on quality.
Specifications
KV: 900KV
Weight(included wire): 60.4g
Dimension: Ф33.55*27.65mm
Interphase Resistance: 83.21mΩ
Input Volts: 24V
Peak Current: 43.86A
Max Watt: 1018W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 15.15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*5*5
Winding: Single Strand copper winding
Packing List
1 x for NIDICI 2812 900KV Brushless Motor
4 x M3*10 screws
1 x M5 Flange Nut
Description
For NIDICI Affordable Series Motor, is designed to provide high-quality performance at an economical price. This series combines cost-effectiveness with reliable power, making it an excellent choice for hobbyists and enthusiasts who seek value without compromising on quality.
Specifications
KV: 900KV/1250KV
Weight(included wire): 77g
Dimension: Ф36.85*46.8mm
Interphase Resistance: 51.24mΩ/24.15mΩ
Input Volts: 24V
Peak Current: 63.28A/78.86A
Max Watt: 1479.5W/1830.3W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 15.65mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*5*5
Winding: Single Strand copper winding
Packing List
1 x for NIDICI 3115 Brushless Motor
4 xM3*10 screws
1 x M5 Flange Nut
Description
For NIDICI Affordable Series Motor is designed to provide high-quality performance at an economical price. This series combines cost-effectiveness with reliable power, making it an excellent choice for hobbyists and enthusiasts who seek value without compromising on quality.
Specifications
KV: 900KV
Weight(included wire): 123g
Dimension: Ф38.6*46.8mm
Interphase Resistance: 48.1mΩ
Input Volts: 24V
Peak Current: 58.48A
Max Watt: 1366.1W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 16.65mm
Lead: 400mm/16AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*5*5
Winding: Single Strand copper winding
Packing List

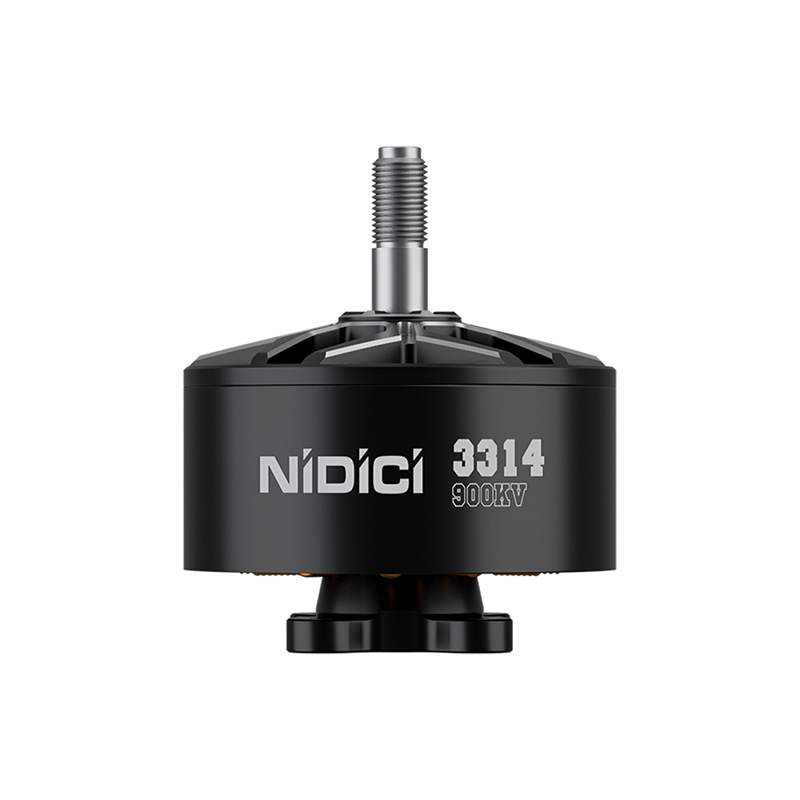

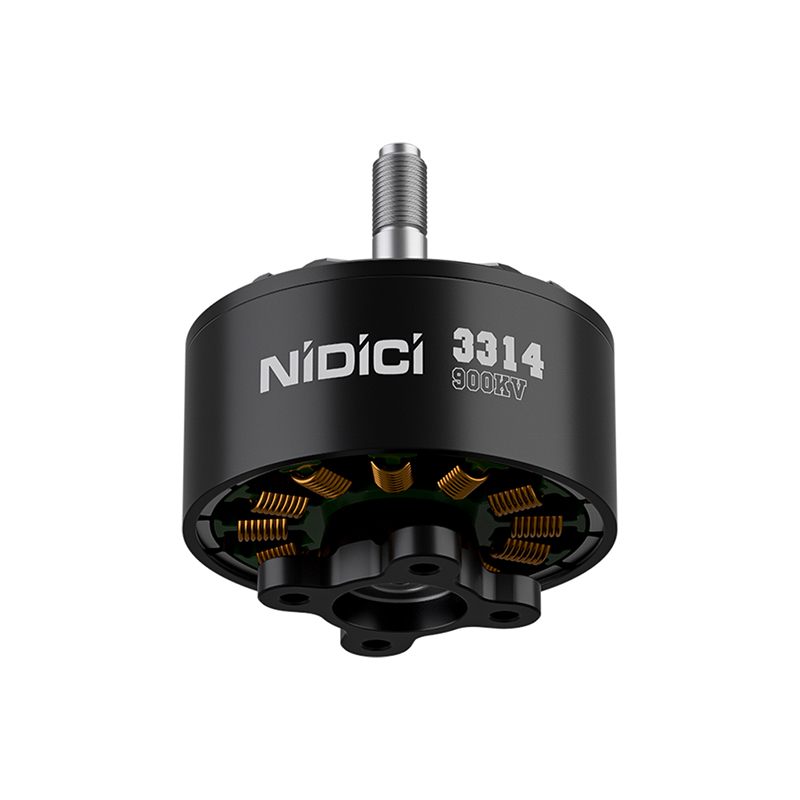

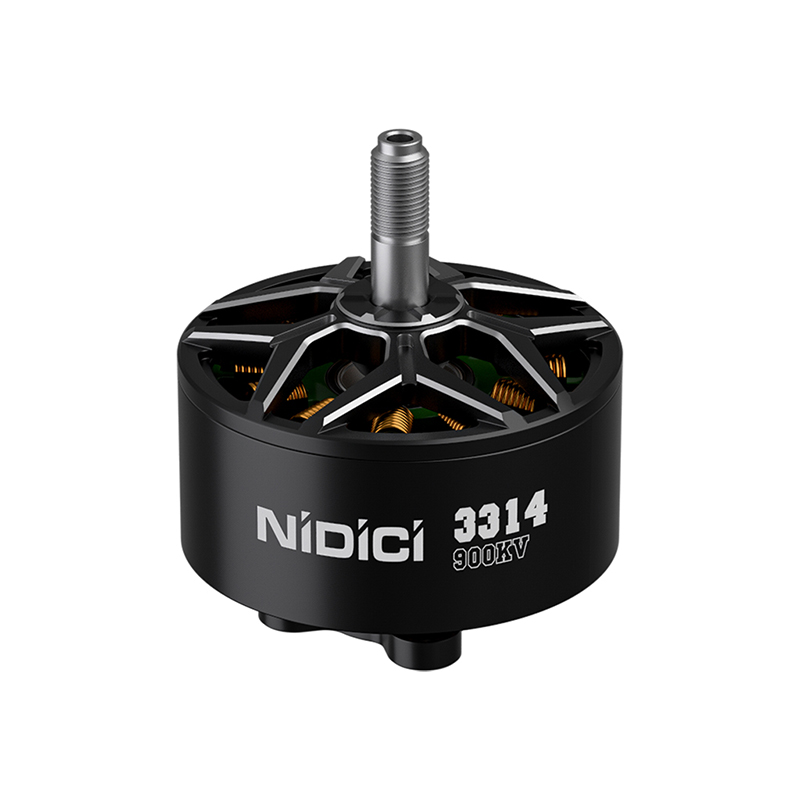

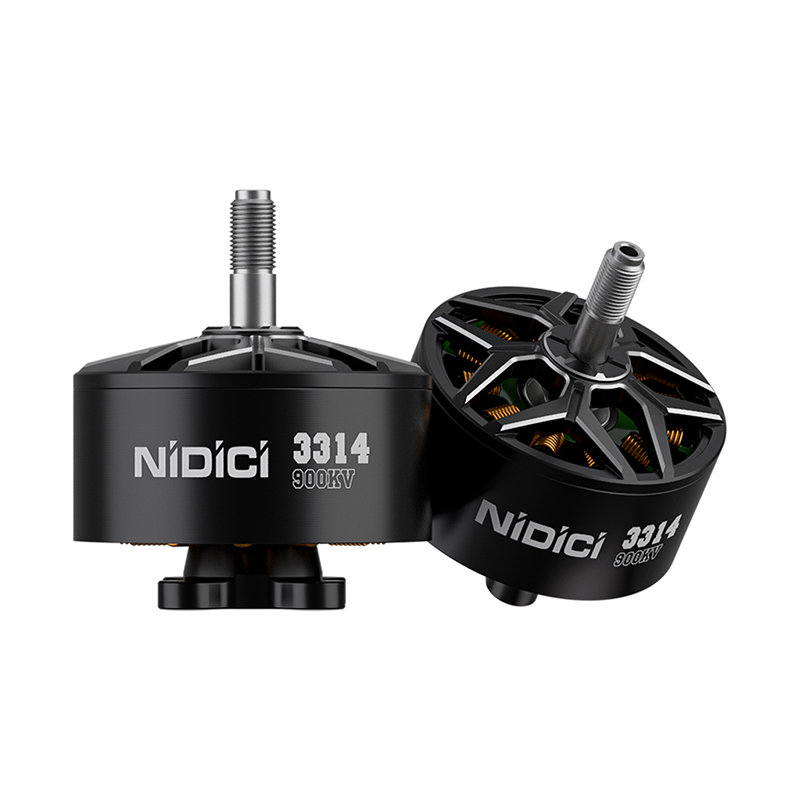

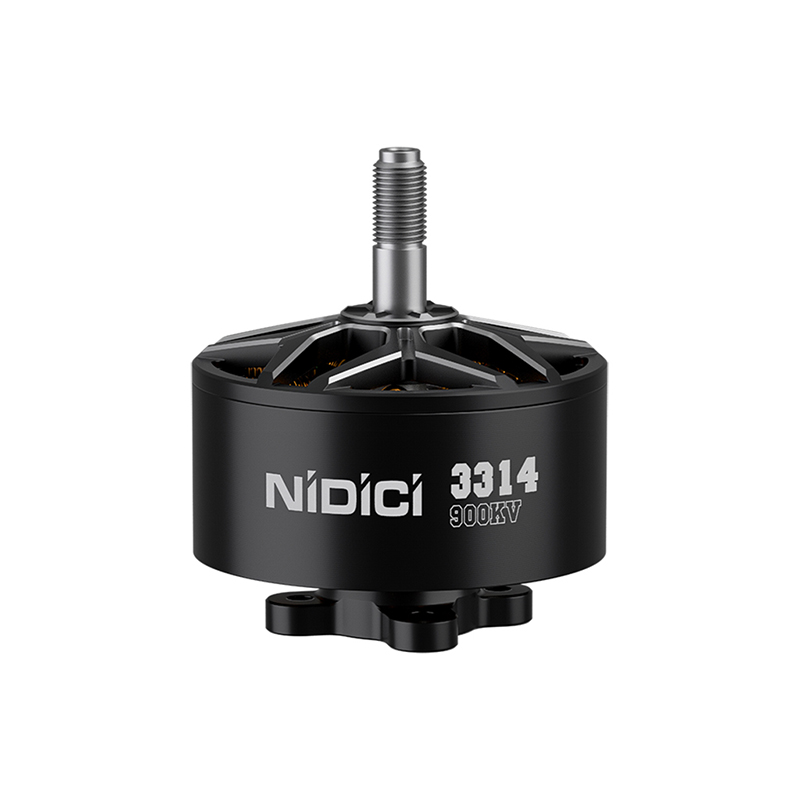

1 x for NIDICI 3314 Brushless Motor
4 xM3*10 screws
1 x M5 Flange Nut
