HI-LINK ​HLK-10D2405A 10D2405B 5v/12v/15v/24v 10W2000mA DC Isolated Power Module DCDC Switching Power Module Item NO.: F37274 F37275

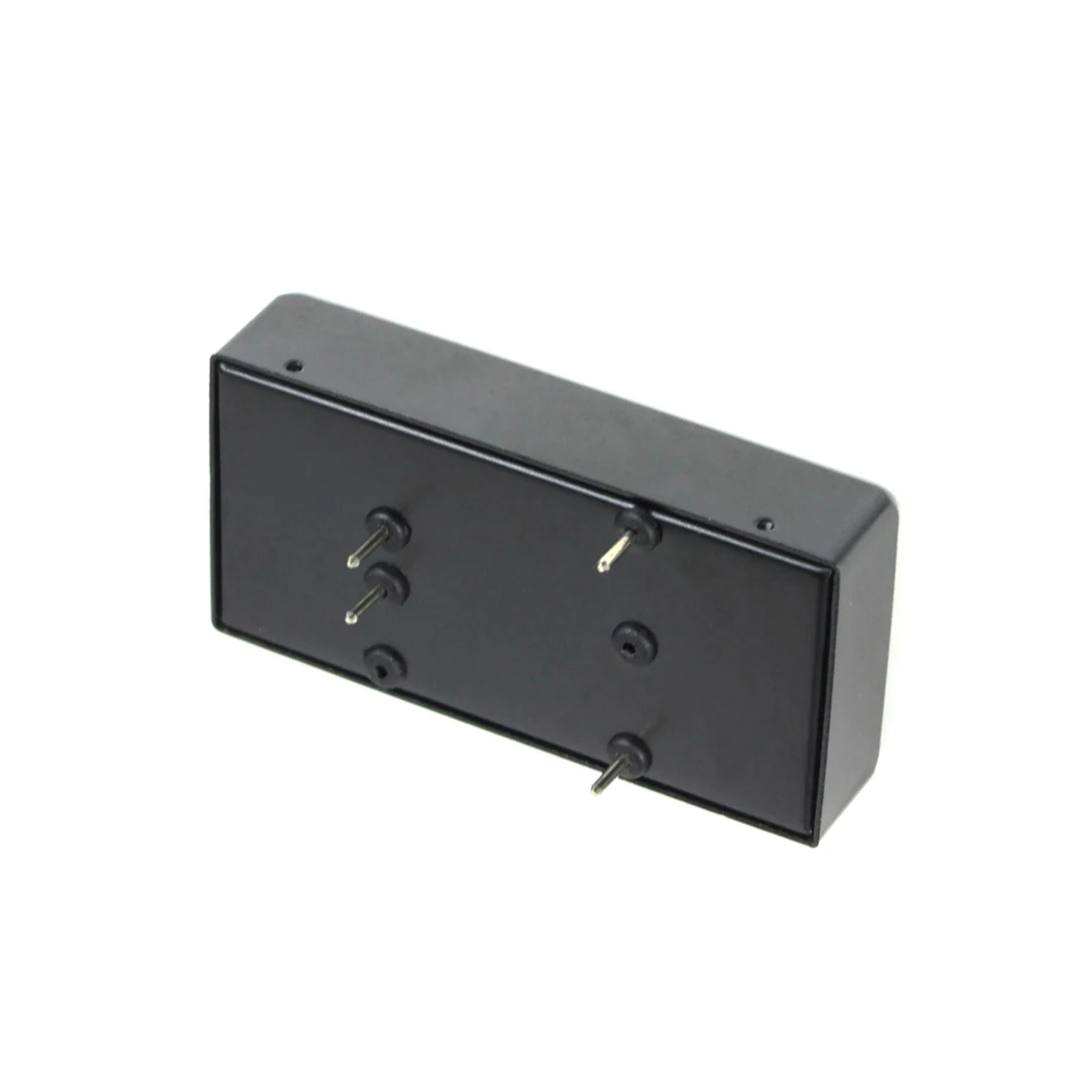

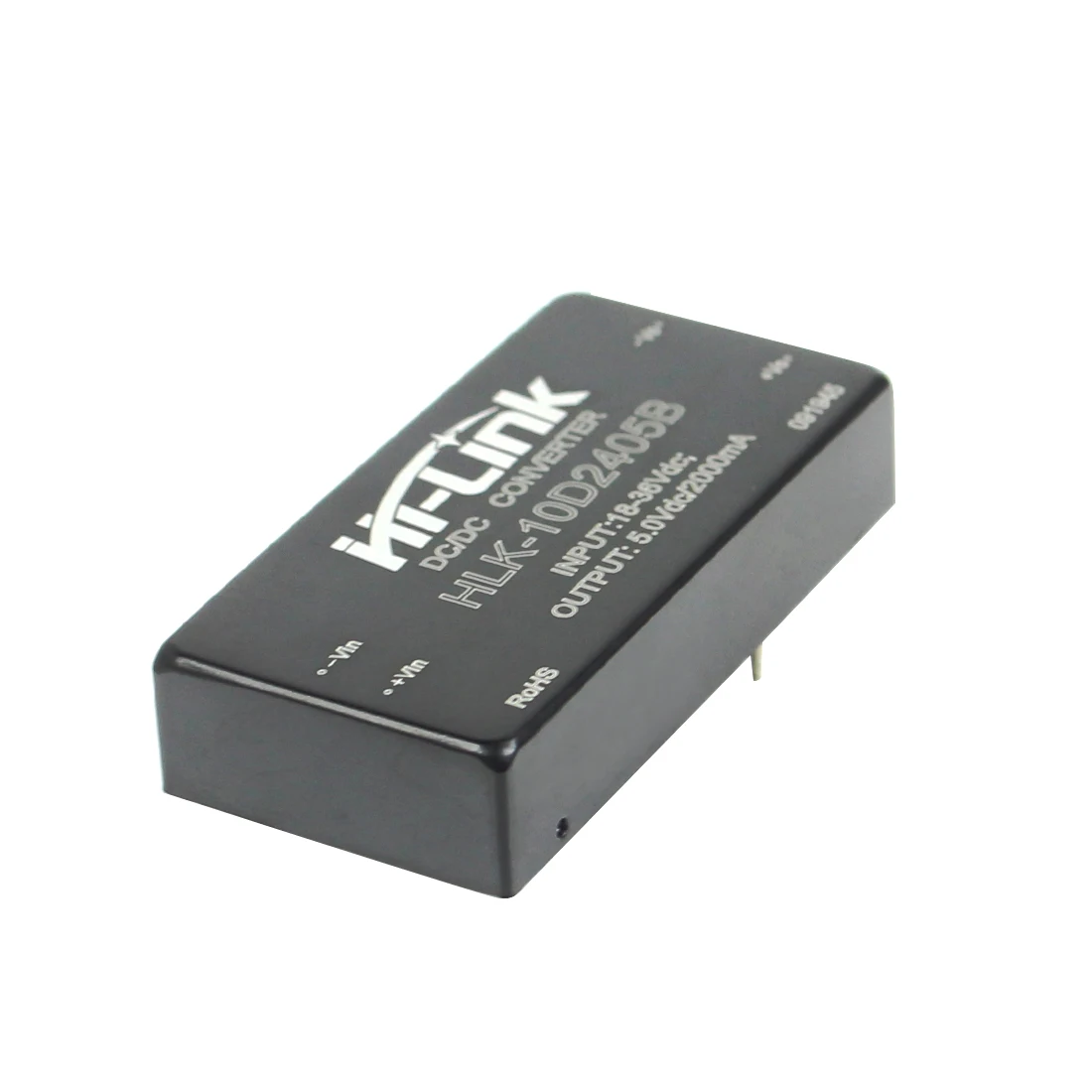

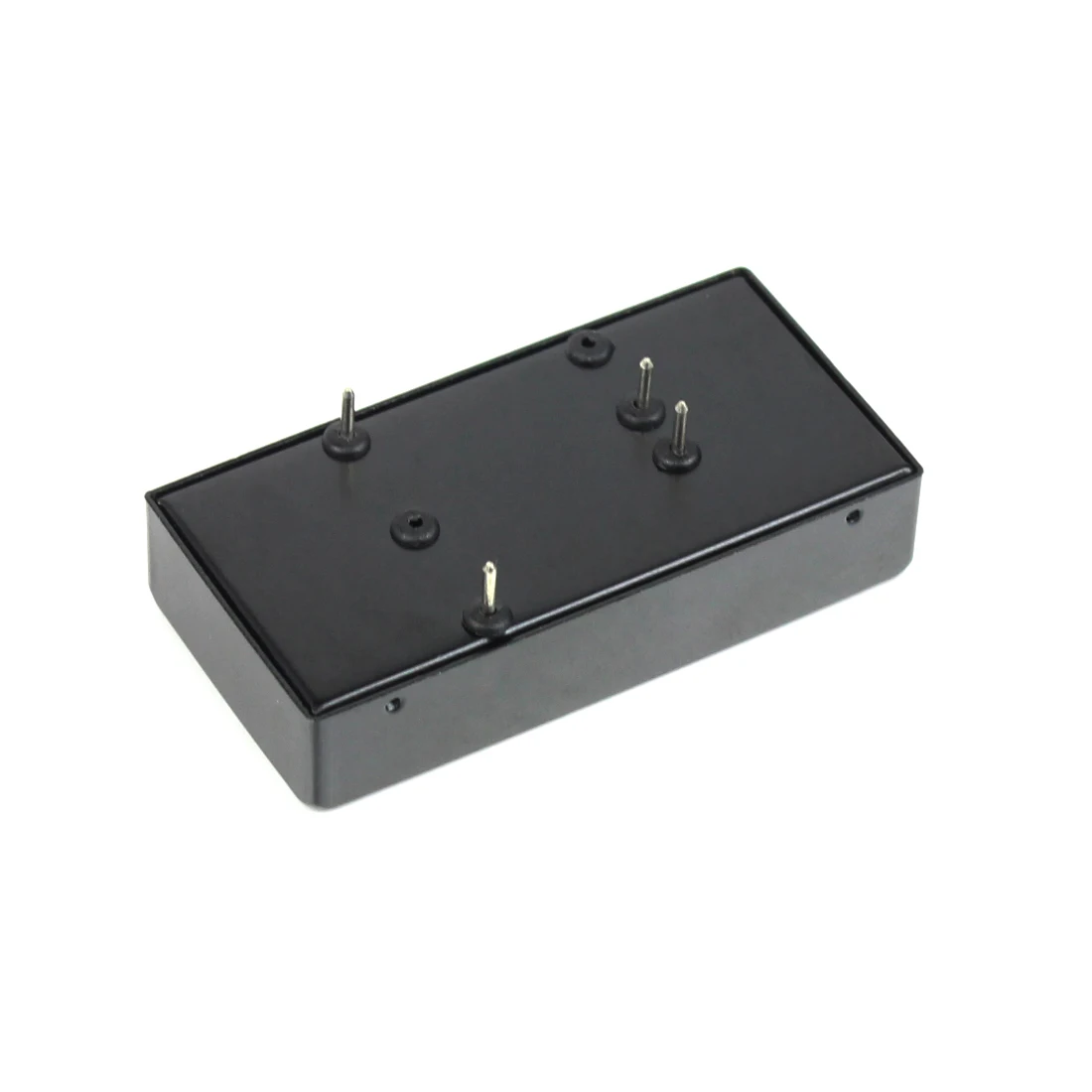

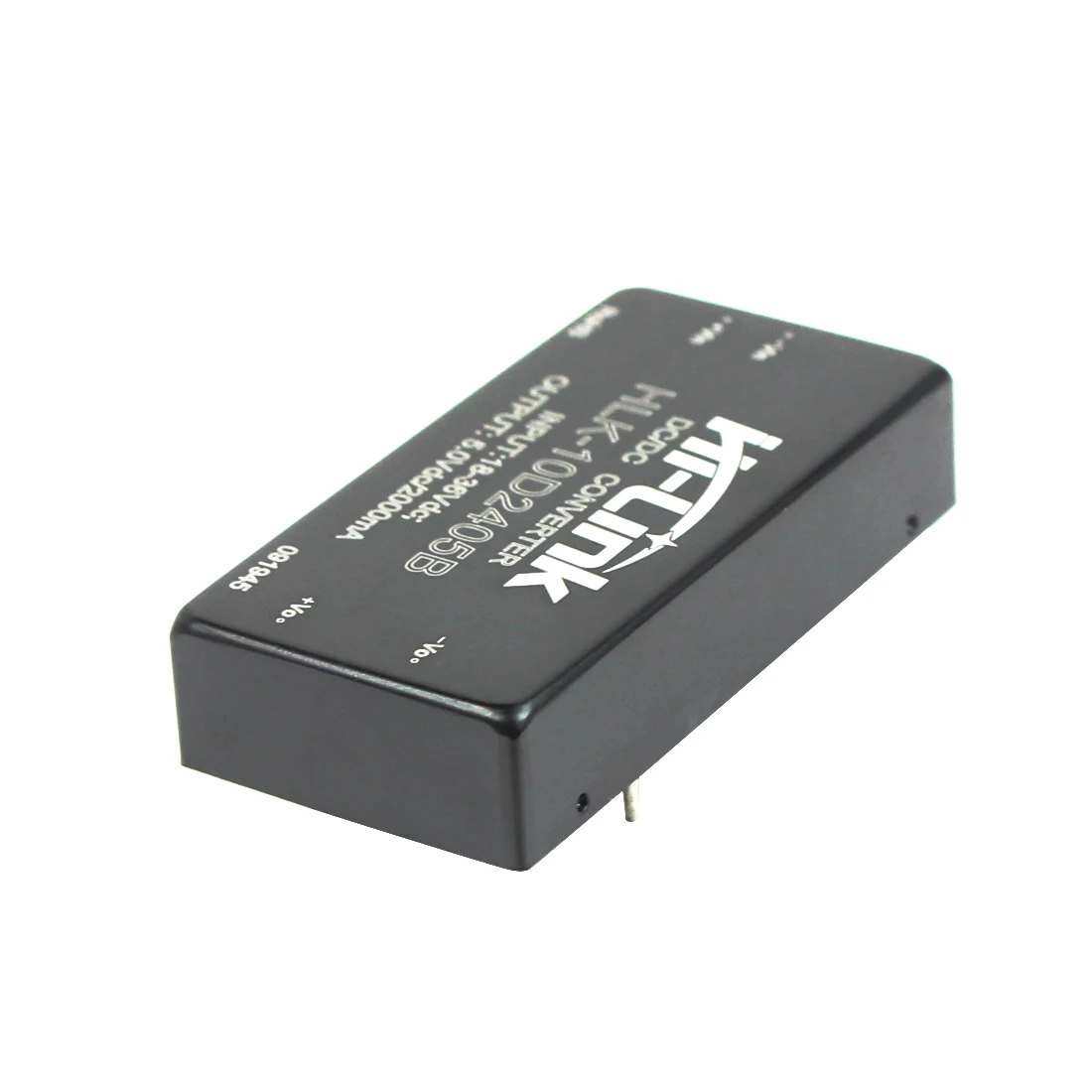

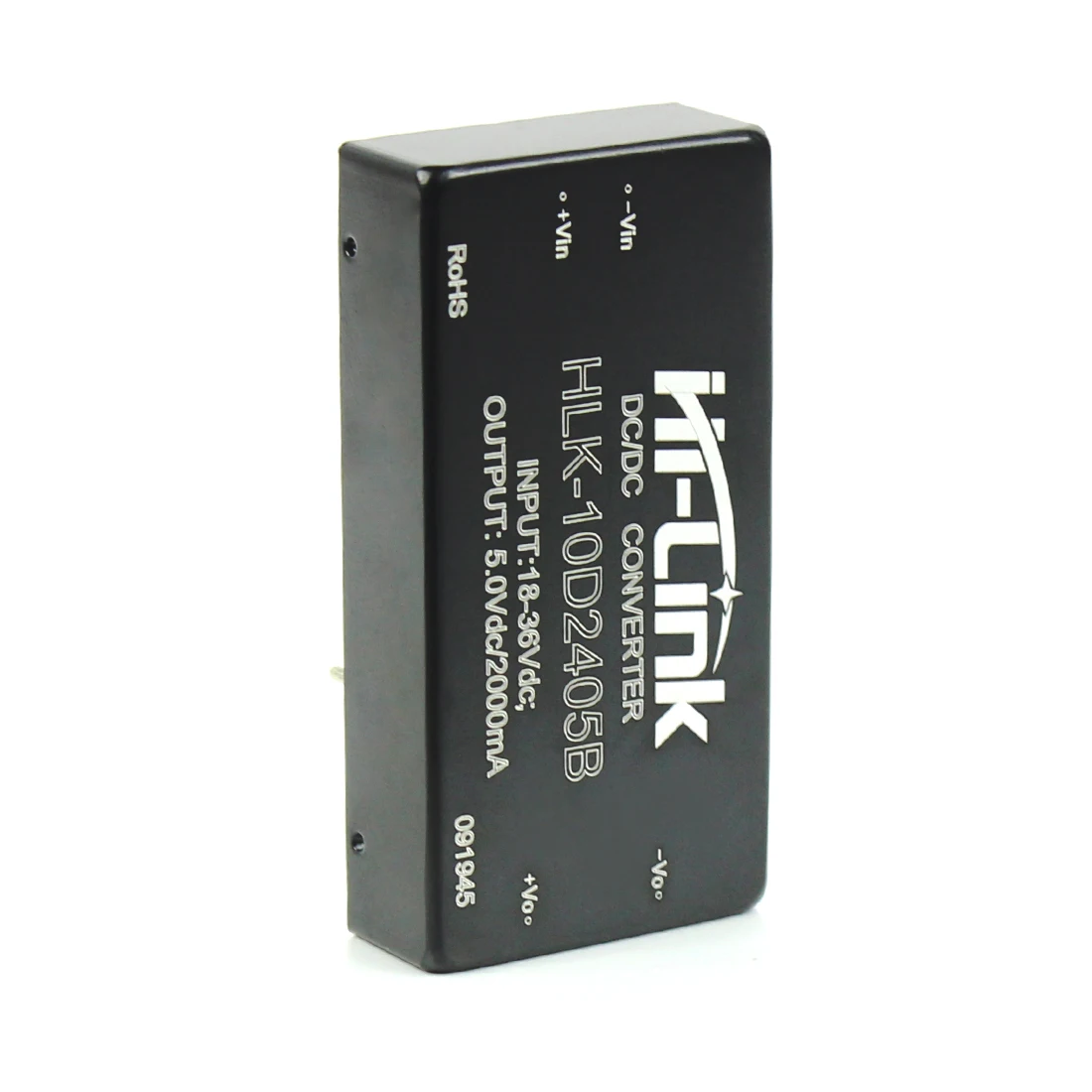

HLK-10D2405B

1) Wide voltage 2: 1 input (18 ~ 36VDC), isolated and regulated single output

2) Isolation voltage: 1500VDC

3) Small DIP package

4) International standard pin method

5) Ripple / Noise <50mVp-p

6) Efficiency up to 86%

7) Low standby power

8) Output over voltage, overload, short circuit protection

9) Wide working environment temperature: -40 ℃ ~ + 85 ℃

10) Shell temperature rise is low

11) High accuracy of output voltage ± 2%

12) Good electromagnetic compatibility (EMC)

Size:50.8*25.4*11mm

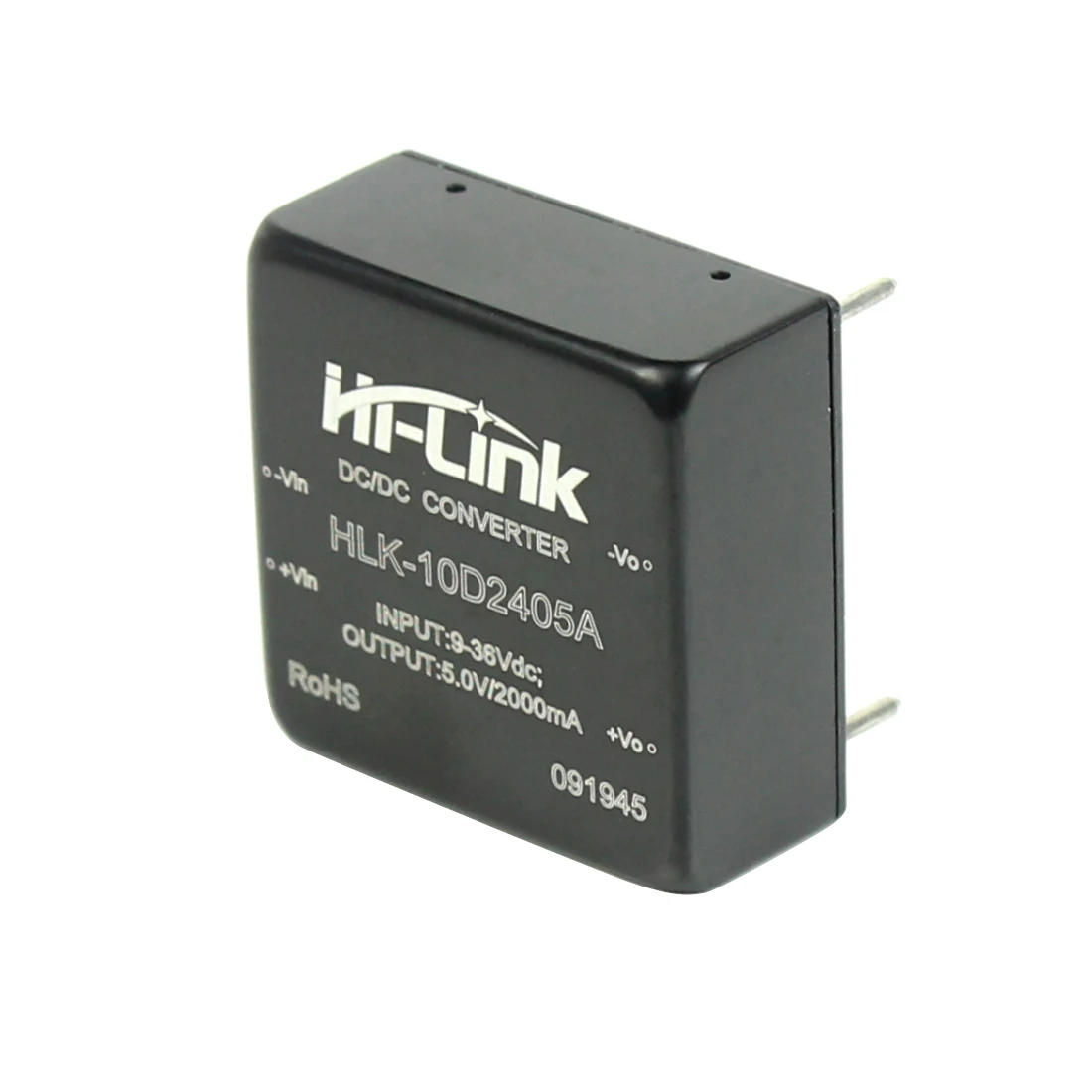

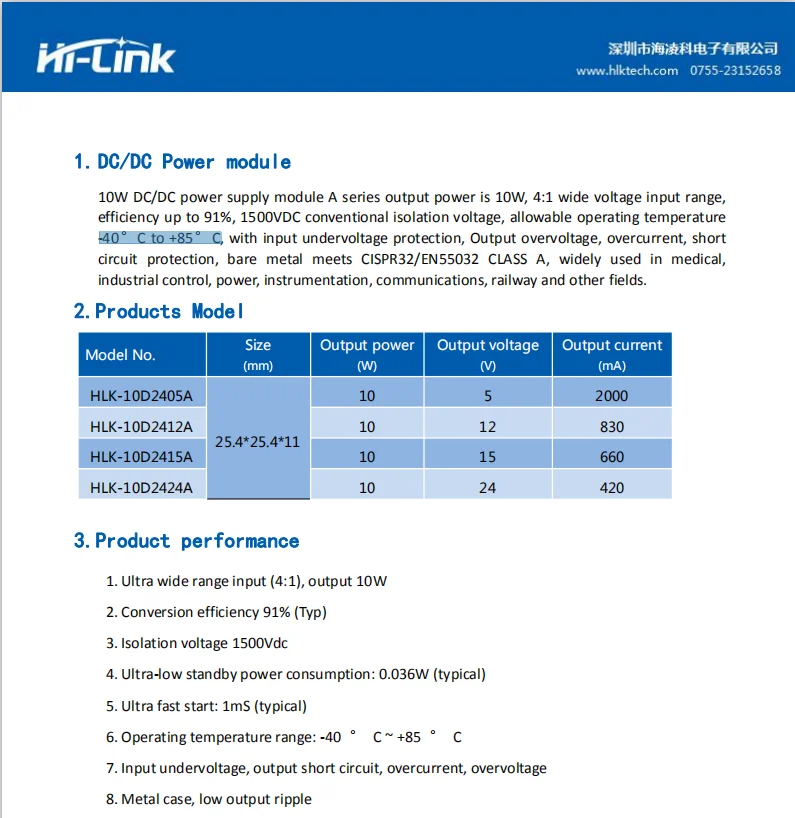

HLK-10D2405A

1) Wide voltage 4: 1 input (9 ~ 36VDC), isolated and regulated single output

2) Isolation voltage: 1500VDC

3) Small DIP package

4) International standard pin method

5) Low ripple / noise <50mVp-p

6) Efficiency up to 91%

7) Ultra-low standby power 0.036W

8) Ultra fast start 1mS

9) Input undervoltage, output overvoltage, overload, short circuit protection

10) Wide working environment temperature: -40 ℃ ~ +85 ℃

11) Shell temperature rise is low

12) High output voltage accuracy ± 2%

13) Good electromagnetic compatibility (EMC)

Size:25.4*25.4*11mm
