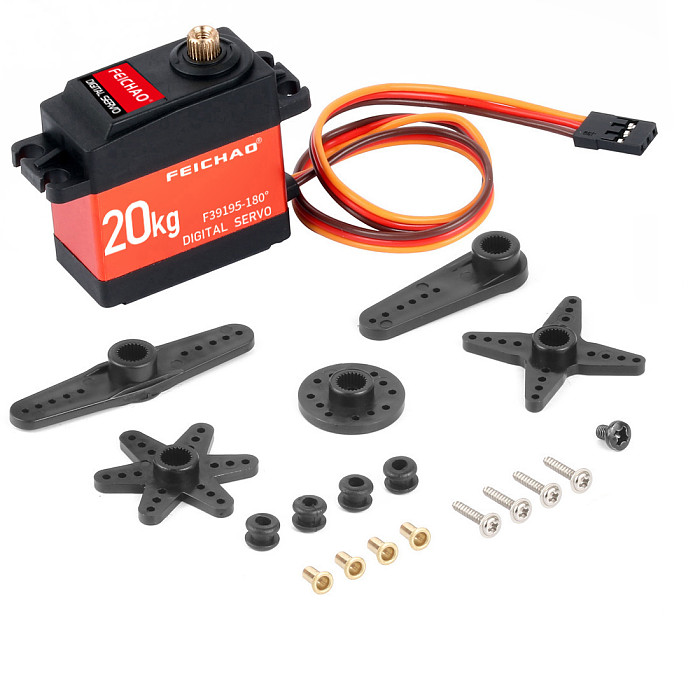

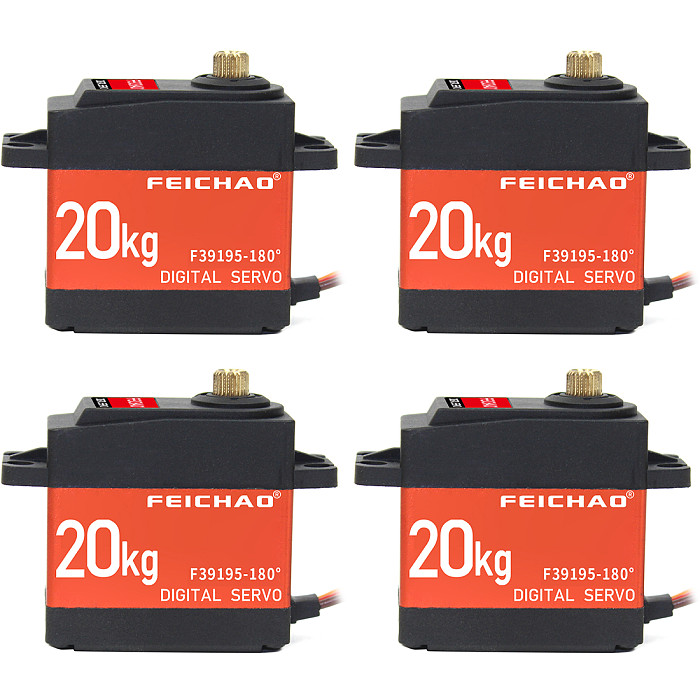

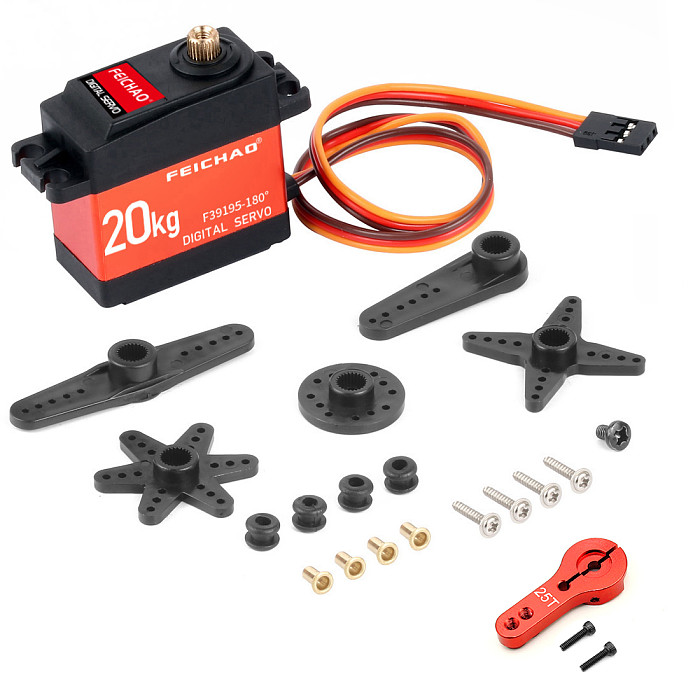

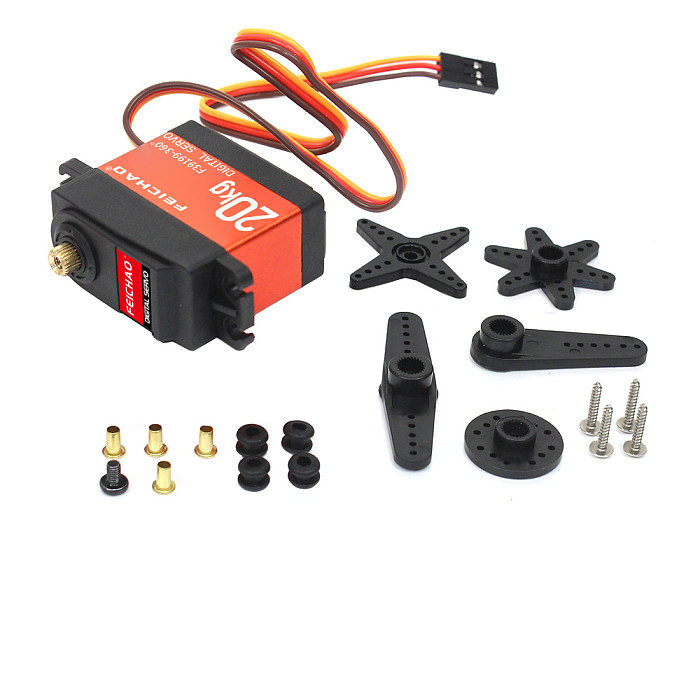

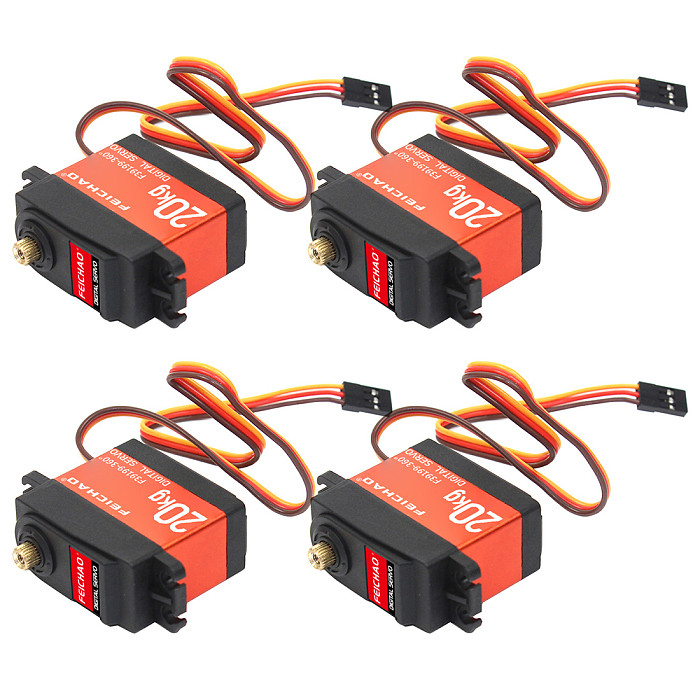

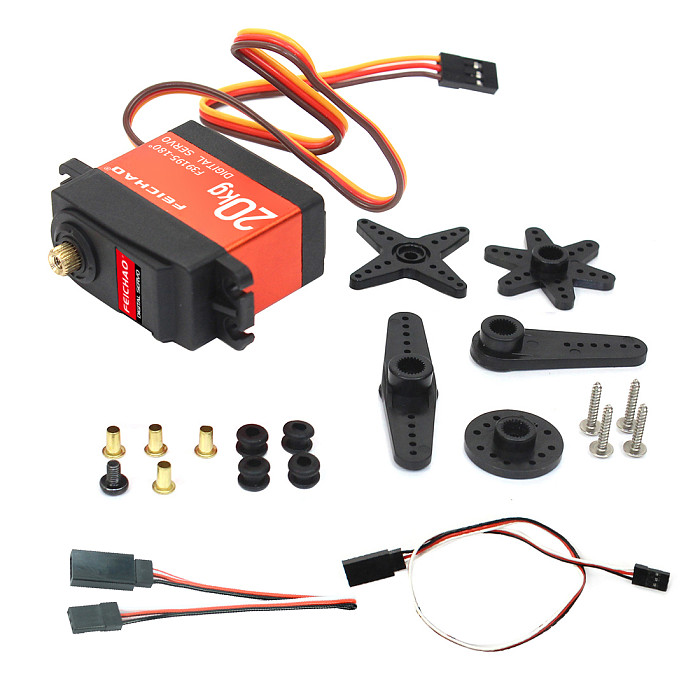

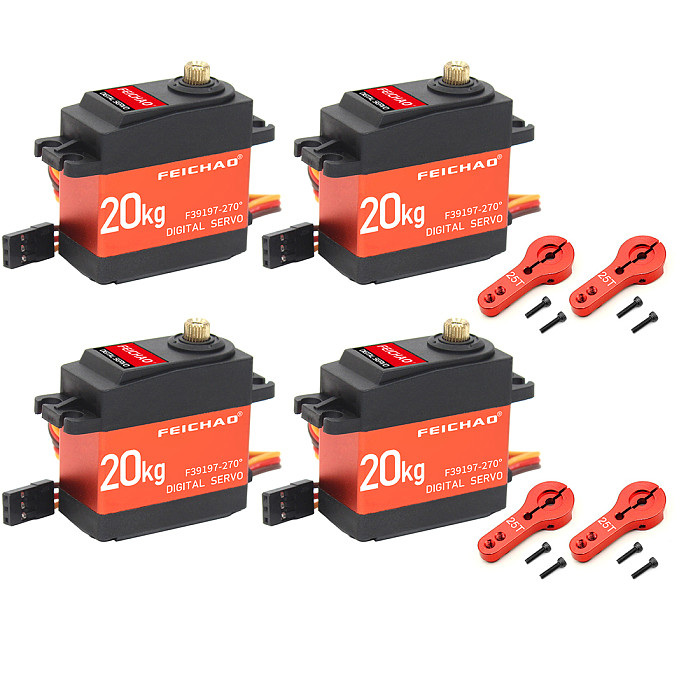

Feichao Waterproof Servo 20kg Coreless Servo 180 270 360 Degree Large Torque Digital Aluminium Metal Gears 25T Arm For Helicopter Car

Feichao Waterproof Servo 20kg Coreless Servo 180 270 360 Degree Large Torque Digital Aluminium Metal Gears 25T Arm For Helicopter Car Item NO.: F39195 F39196 F39197 F39198 F39199 F39195-4 F39195-A/B/C/D

Write a Review
US$ 5.60
US$ 6.59 Save US$ 0.99 (15% Off)
Version
1X180D Standard 1X180D Metal Arm 1X270D Standard 1X270D Metal Arm 1X360D Standard 1X360D Metal Arm 4PCS 180D Standard 4PCS 270D Standard 4PCS 360D Standard 180D Standard A 4x180D Metal Arm 180D Standard C 180D Standard D 4x270D Metal Arm 4x360D Metal Arm 360D Standard B 360D Standard C
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Feichao Waterproof Servo 20kg Coreless Servo 180 270 360 Degree Large Torque Digital Aluminium Metal Gears 25T Arm For Helicopter Car
Item NO. F39195 F39196 F39197 F39198 F39199 F39195-4 F39195-A/B/C/D
Weight 0.095 kg = 0.2094 lb = 3.3510 oz
Category DIY RC Drone Accessories > Servo
Brand FEICHAO
Creation Time 2020-07-31

Feichao Waterproof Servo 20kg Coreless Servo 180 270 360 Degree Large Torque Digital Aluminium Metal Gears 25T Arm For Helicopter Car


20KG Servo:
- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell,

Control system :PWM control (1500 u-sec is the central point)
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed :4.8V/0.15sec / 60 deg
6.0V/0.13sec / 60 deg
Steering angle: 180 / 270 degree
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter
