Copy| Product Name | Feichao 4pcs Wooden Speed Reduction Motor 130/300 3VGeared Motor Double Output Shaft for DIY Model Toys Cars Boats Engine Gearmotor Part |
| Item NO. | F32069 F32070 F32071 |
| Weight | 0.08 kg = 0.1764 lb = 2.8219 oz |
| Category | Toy and Hobbies > Science Education Toy |
| Brand | FEICHAO |
| Creation Time | 2019-10-25 |
Feichao 4pcs Wooden Speed Reduction Motor 130/300 3VGeared Motor Double Output Shaft for DIY Model Toys Cars Boats Engine Gearmotor Part
Specification:

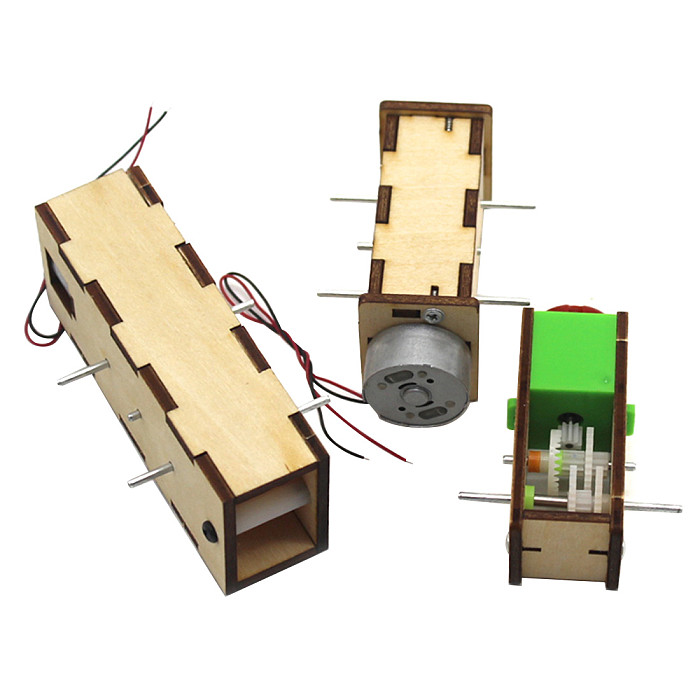

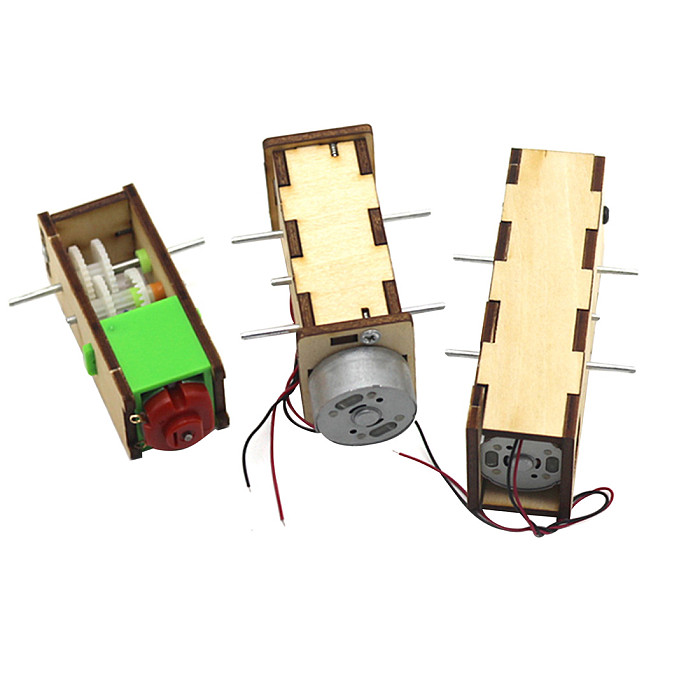

The wooden case gear motor can be disassembled or modified to more intuitively observe the gear transmission principle. It can be used to make a variety of small and medium-sized production toys.
300 geared motor is double output shaft with line; 130 gear motor is single output shaft without line.

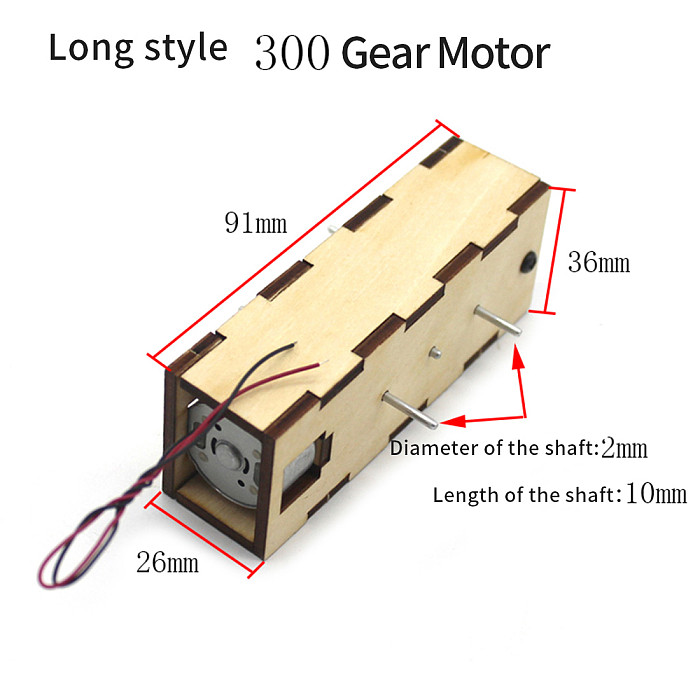

Long 300 geared motor:
[product size]: 26*36*91mm
[Motor shaft diameter]: 2mm
[Output shaft length]: 10mm (double output shaft)
[rated voltage]: 3v
[Motor parameters]: The speed is about 116 rpm, the current is 0.05A.
[Wire length]: about 13cm
[product weight]: about 49.2 grams
Short 300 gear motor:
[product size]: 27.5*36*74mm
[Motor shaft diameter]: 2mm
[Outlet shaft length]: 13mm (double output shaft)
[rated voltage]: 3v
[Motor parameters]: The speed is about 115 rpm, the current is 0.04A.
[Wire length]: about 13cm
[product weight]: about 39 grams

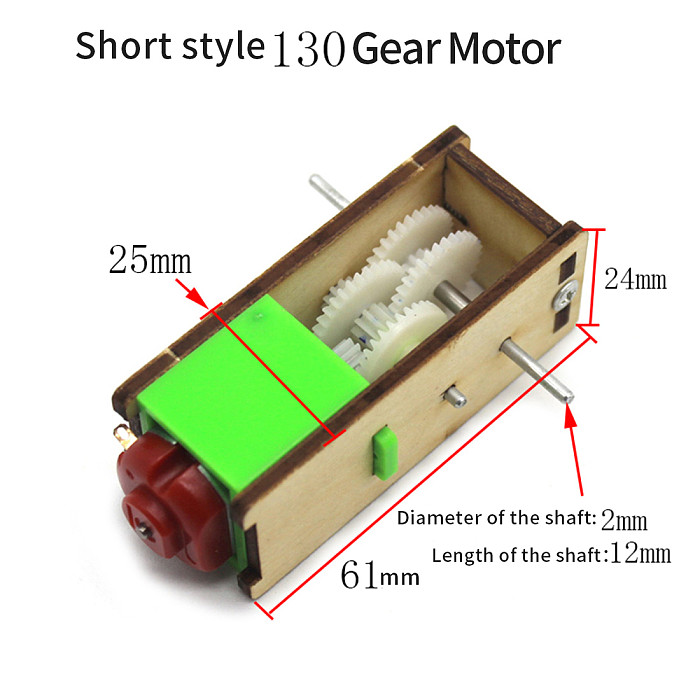

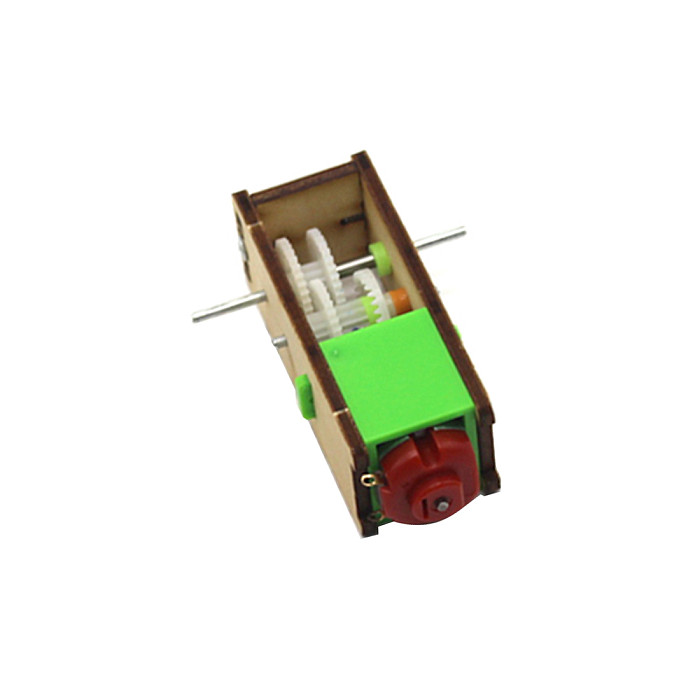

Short 130 geared motor:
[product size]: 24*25*61mm
[Motor shaft diameter]: 2mm
[Outlet shaft length]: 12mm
[rated voltage]: 3v
[Motor parameters]: The speed is about 161 rpm, the current is 0.63A.
[product weight]: about 28 grams
