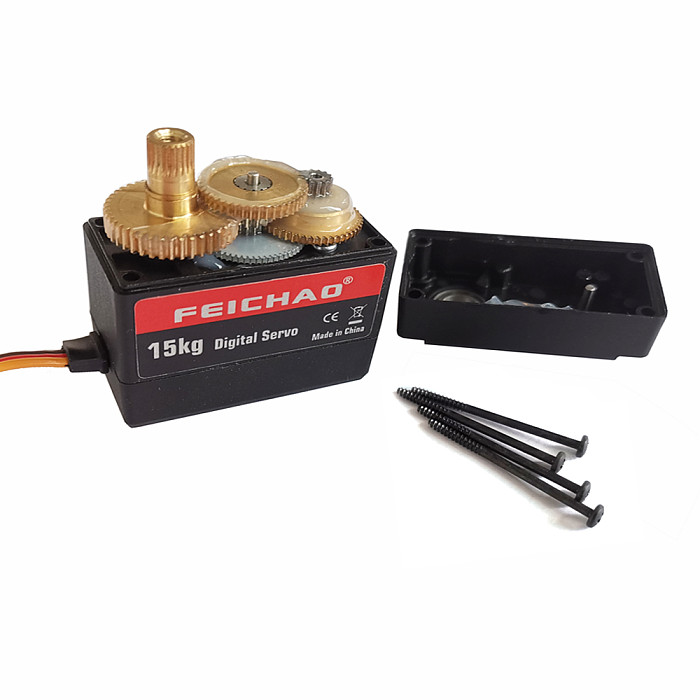

FEICHAO Dual Ball Bearing Robot Servo 15kg 180°/270°/360° Metal Gear Digital Servo with Long and Short Straight Bracket Holder

Product parameter:

Product size: 40 * 20 * 40.5mm

Product speed: 0.16 sec / 60 ° 7.4V

Closed rotor torque: 15 kg / cm 6V; 17 kg / cm 7.4 V

Operating voltage: 6-7.4V

No-load current: 100mA

Product line length: 30cm



PWM pulse width type adjustment angle, cycle is 20ms, pulse width level 0.5ms ~ 2.5ms duty cycle corresponds to 0 ° steering gear angle range ~ 180 °, and the relationship is linear. Our steering gear controller adopts the value of 500 ~ 2500 to correspond to the range of 0.5ms ~ 2.5ms duty cycle of the output angle of the steering gear control, so that the precision of the gear control of direction is 3us, and the control precision can reach 0.3 degrees in the 2000 pulse width range.



Note: When using the steering gear, avoid binding. Stalling means that it is man-made or that mechanics hinder the normal rotation of the steering gear output shaft. The steering gear will cause the internal current to increase by more than 7 times due to the lock of the steering gear, and the increase in temperature will cause the steering gear to burn out.

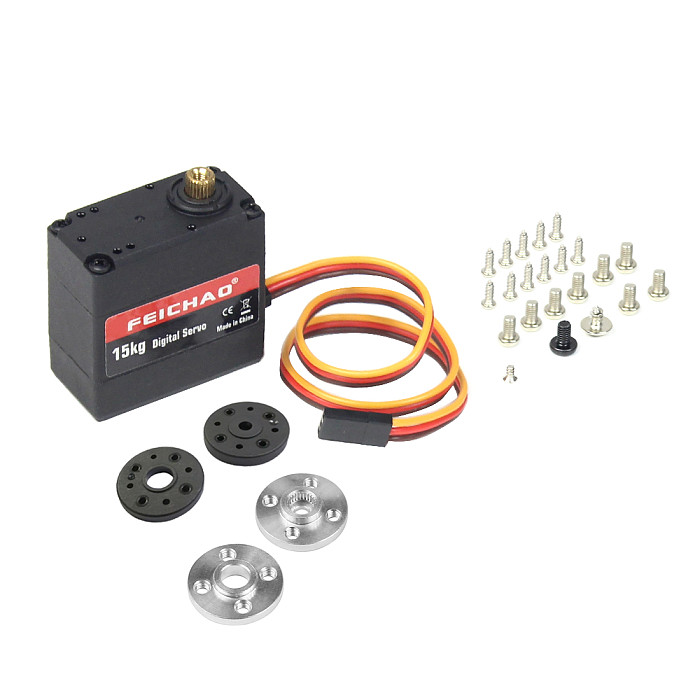

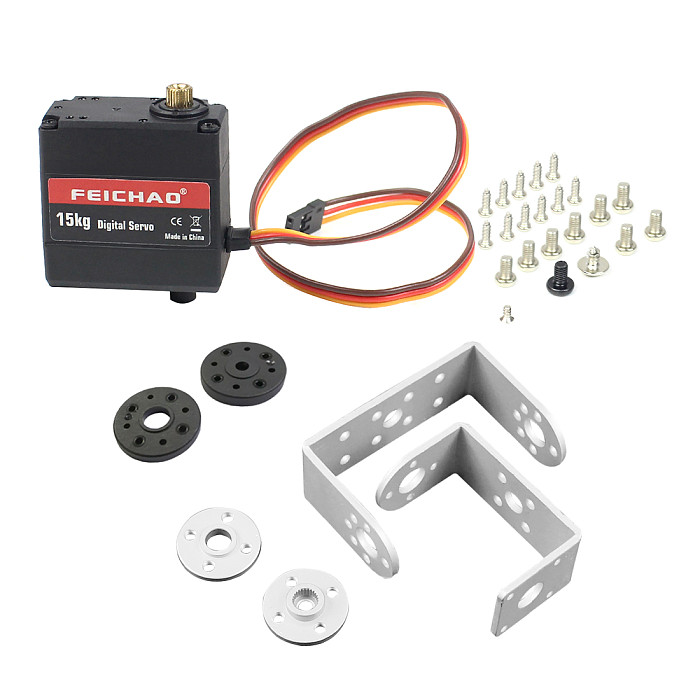

The package contains:



1X15KG Digital Robotic Metallic Servo



2 X Plastic Driven Disc Servo Arm



1 X Long U Metal Bracket (Optional)



1 X Short Metal U Bracket (Optional)



2 X Metal Driven Disc Servo Arm (Optional)



A set of screws (see picture)
