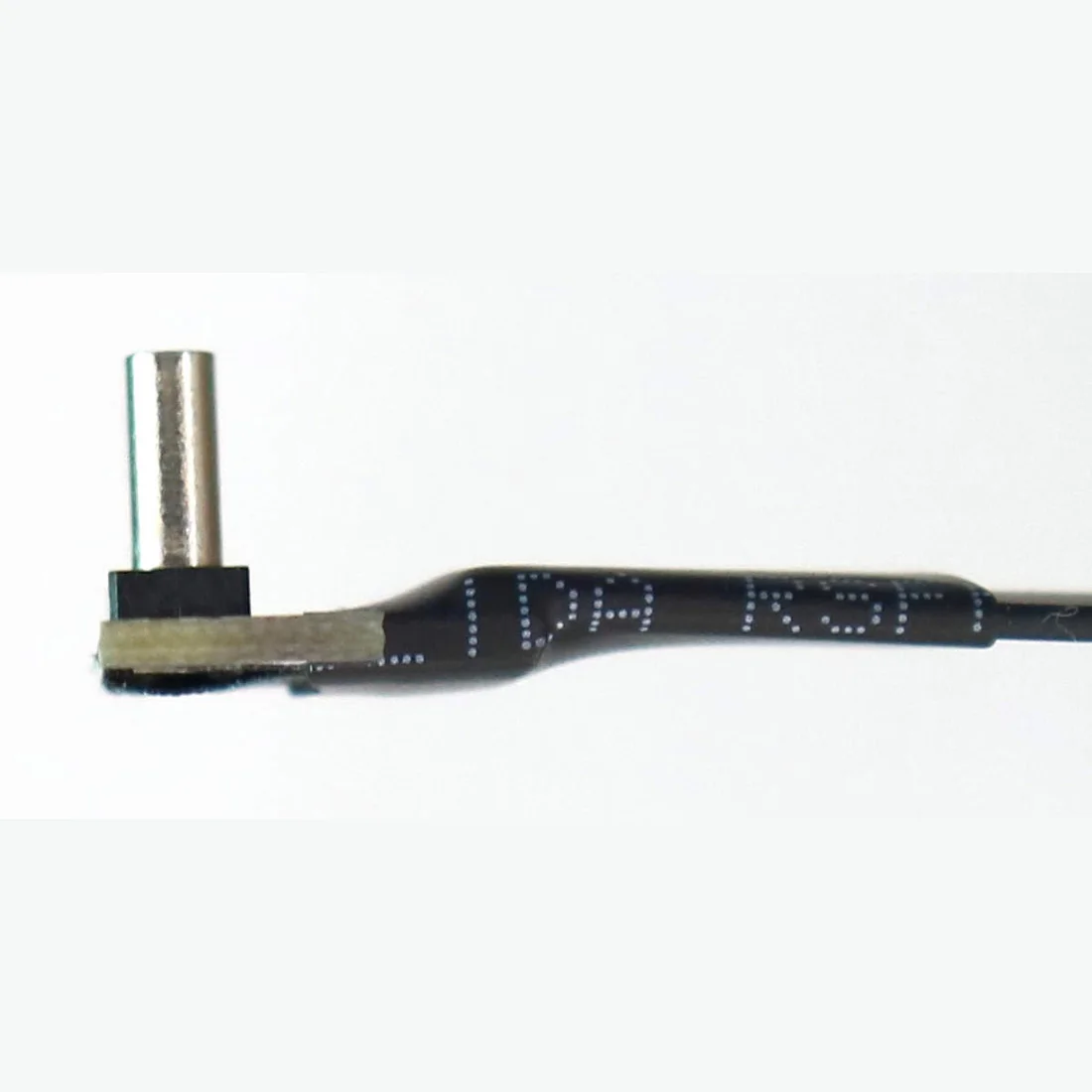

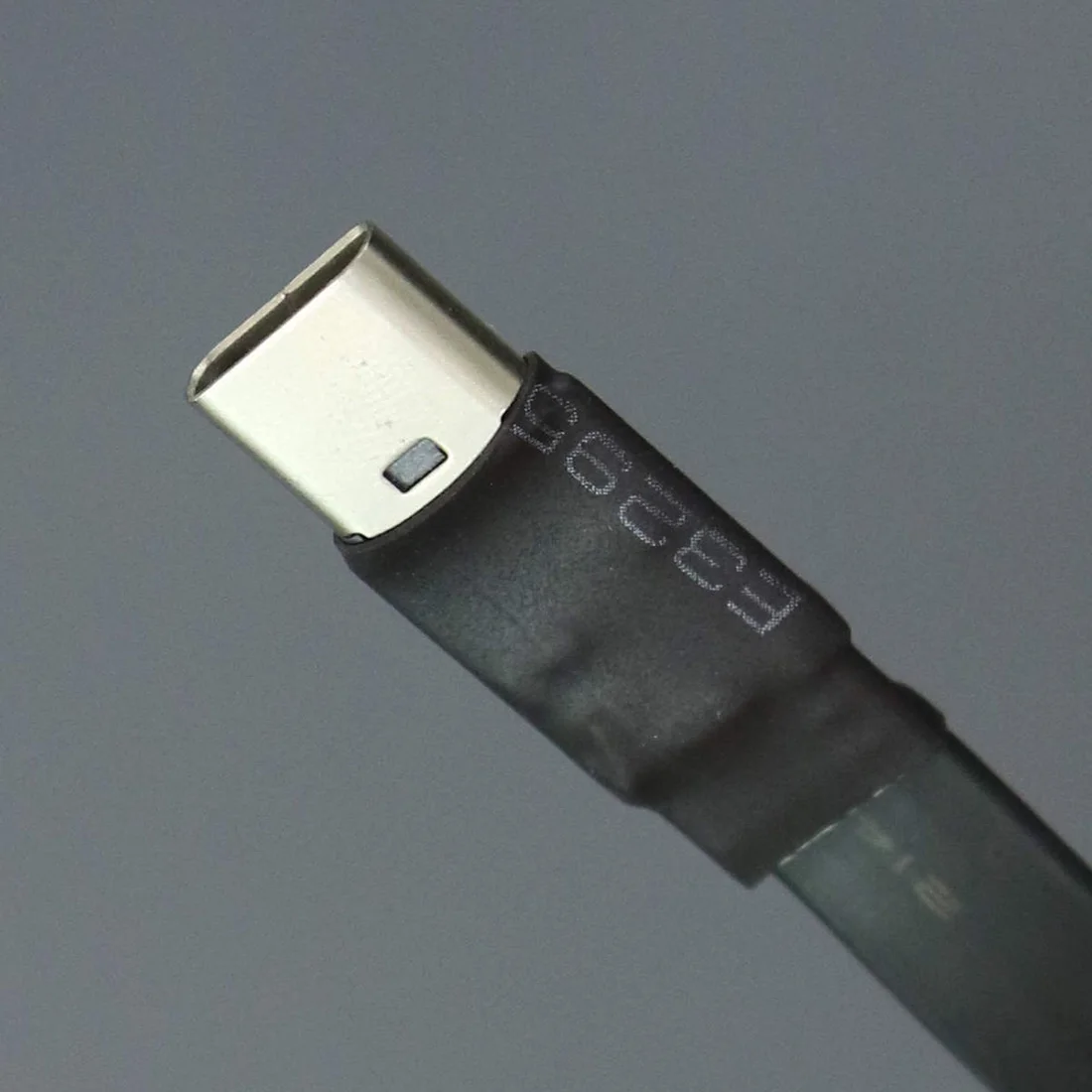

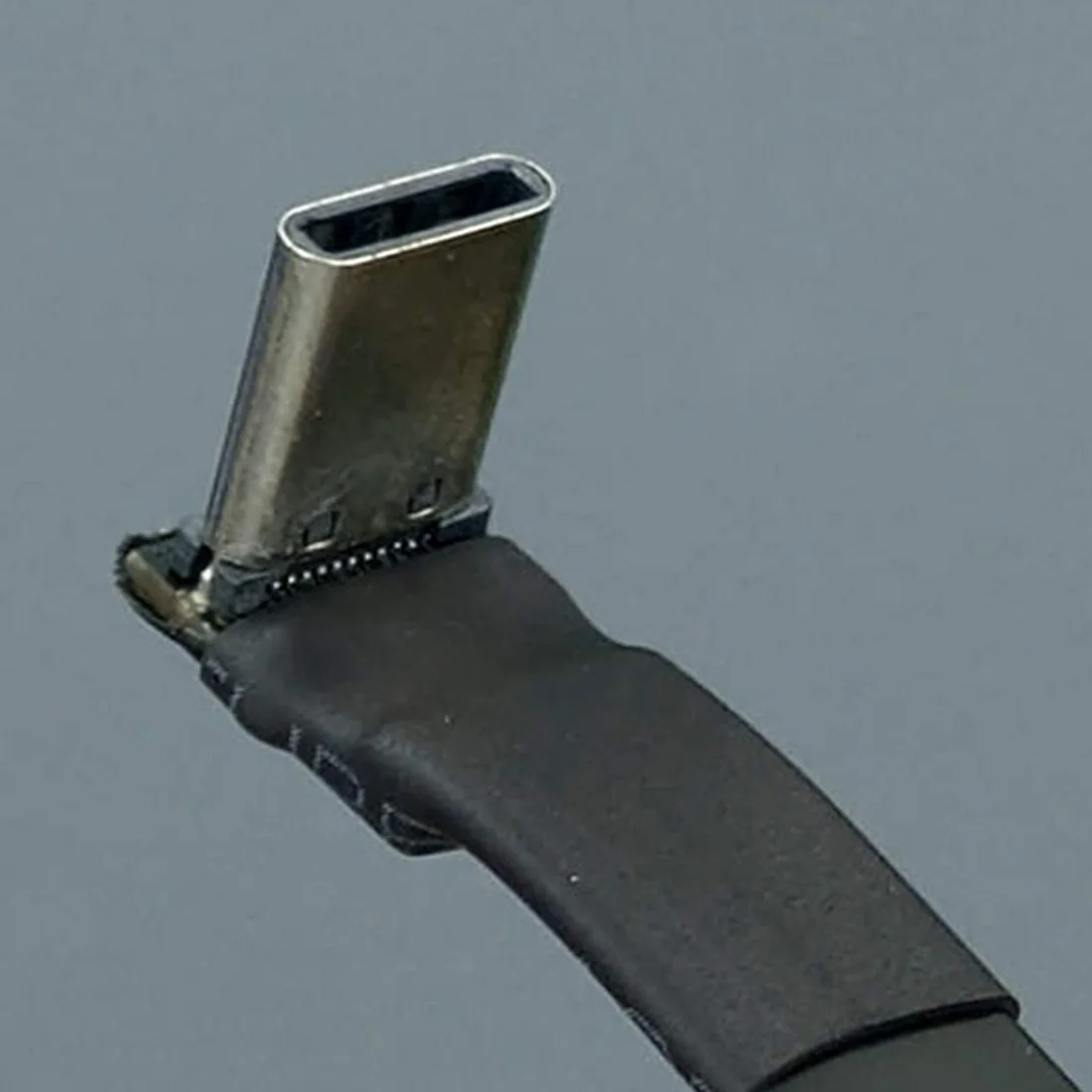

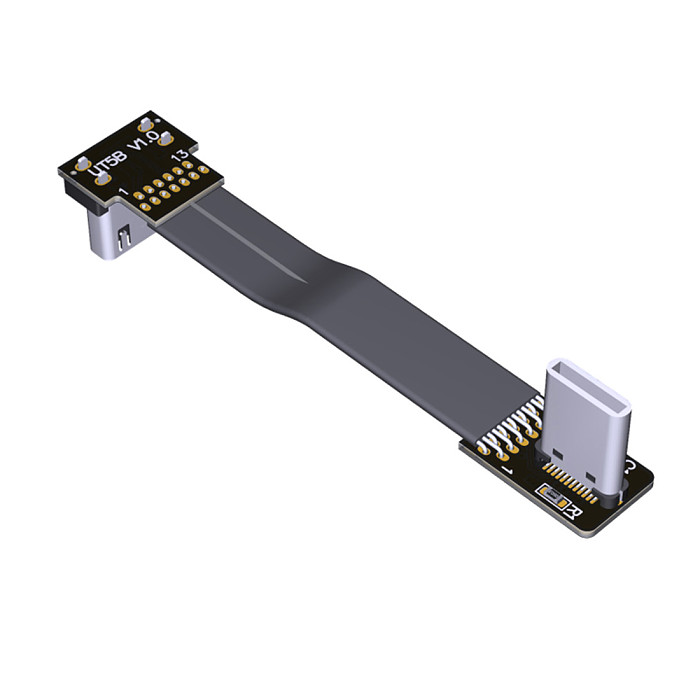

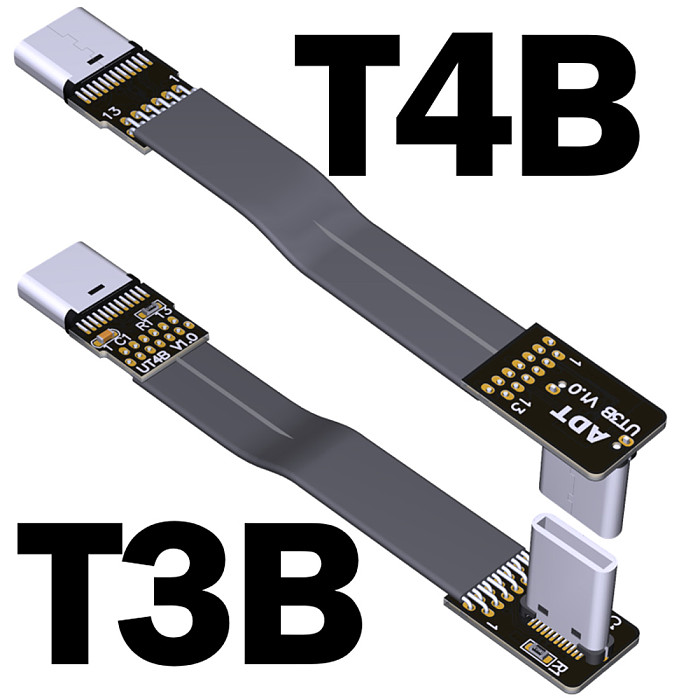

ADT-Link FPV USB 3.1 Type-C USB-C 90 Degree Adapter 15cm FPC Ribbon Flat Type-C USB-C Cable for Multicopter Aerial Photography

Brand: ADT-Link

Colour: Black

product description:

Product name: USB3.1 Type C adapter extension cable

Wire length: 15cm (support length customization, if you need other lengths, please contact us to change the price, thank you!)

Adaptation range: USB 3.1 USB-C to USB-C

Speed Bandwidth: USB 3.1 standard, 10G.bps (measured to support 10G.bps within 0.5 meters, and 5G.bps within 1 meter)

Current capacity: 3A (measured to support 3A within 50cm, 1.5A within 1 meter)

Product application: GPS navigator, storage device, imaging device, ROCK Pi 4 Raspberry Pi MCU development board, built-in USB device to extend the purpose of adapter, convenient for USB power supply and USB signal transmission of SLR handheld gimbal, etc.

Purchase restriction: This product is designed to be connected to built-in USB devices. It is not suitable for general external use. It is limited to product engineers to specify purchases. Individual buyers should not place orders for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support return or exchange. Please consider carefully before placing an order.

Procurement Tips: Be sure to buy 1~2 samples first, and then purchase in bulk after testing and verification.

Description of wire length:

The length of the wire refers to the part of the visible wire, excluding PCB and connectors.

Remark 1: Speed bandwidth: gen2 speed is supported within 50cm, and gen1 speed is supported within 1 meter.

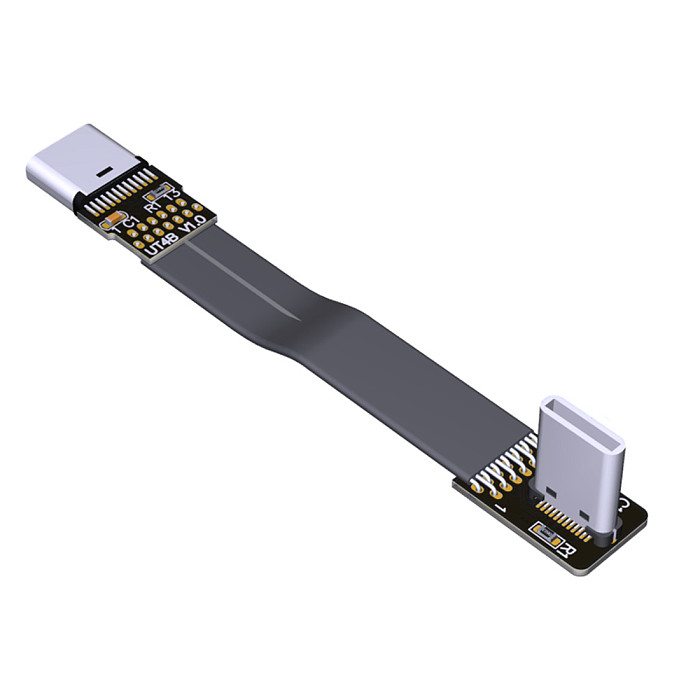

Note 2: Male to male TX-RX signal exchange data line, CC pin is directly connected, no need to distinguish between master and slave.

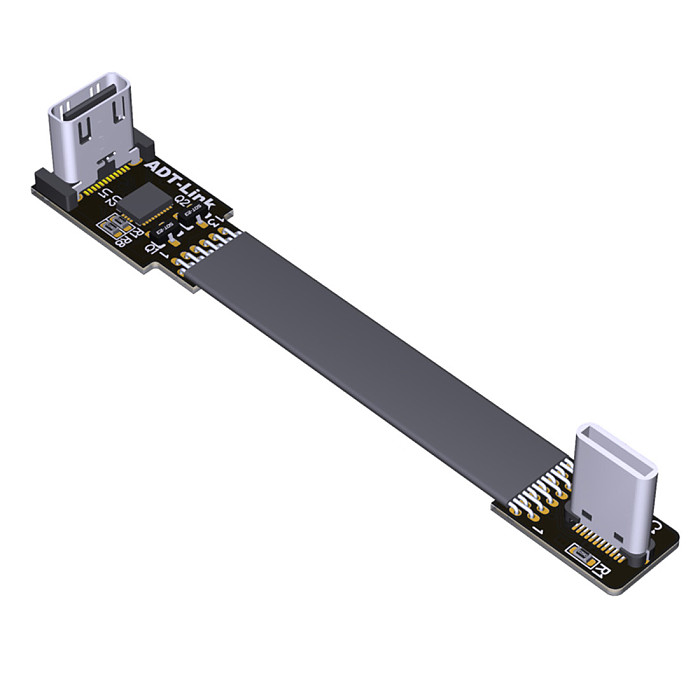

Remark 3: Male-to-female TX-RX signal is directly connected to the extension cable, and the master and slave terminals must be distinguished when using.

Note 4: (Master) means to connect to the host port; (Slave) means to connect to the hard disk box, camera and other equipment.

Product advantages:

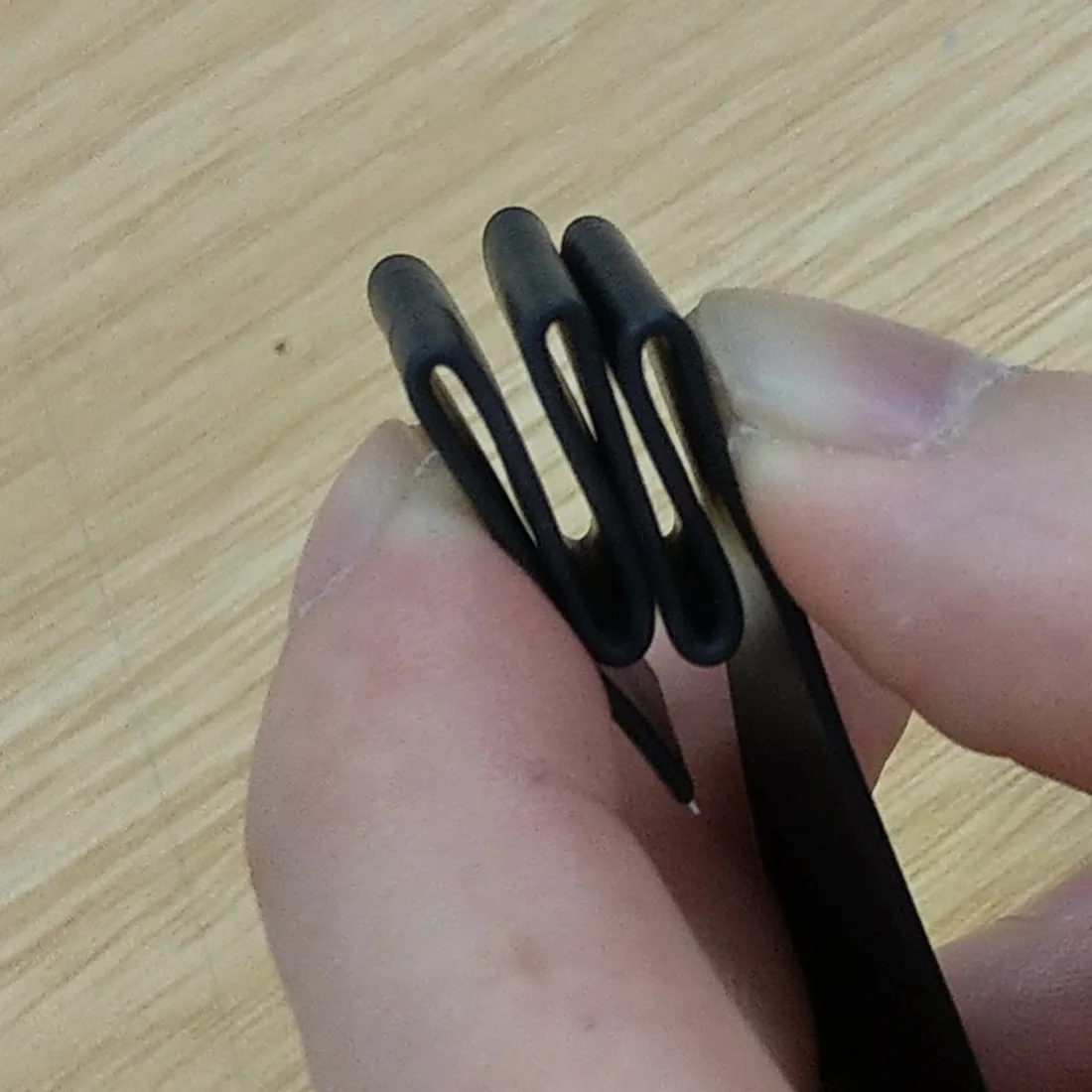

1. Wire advantage, using German patent imported wire.

2. Cable length advantage, from 3 cm to 3 meters can be customized.

3. The differential signal has no via hole design, the signal is pure, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there will be no CAF micro short circuit phenomenon, and the product is durable.

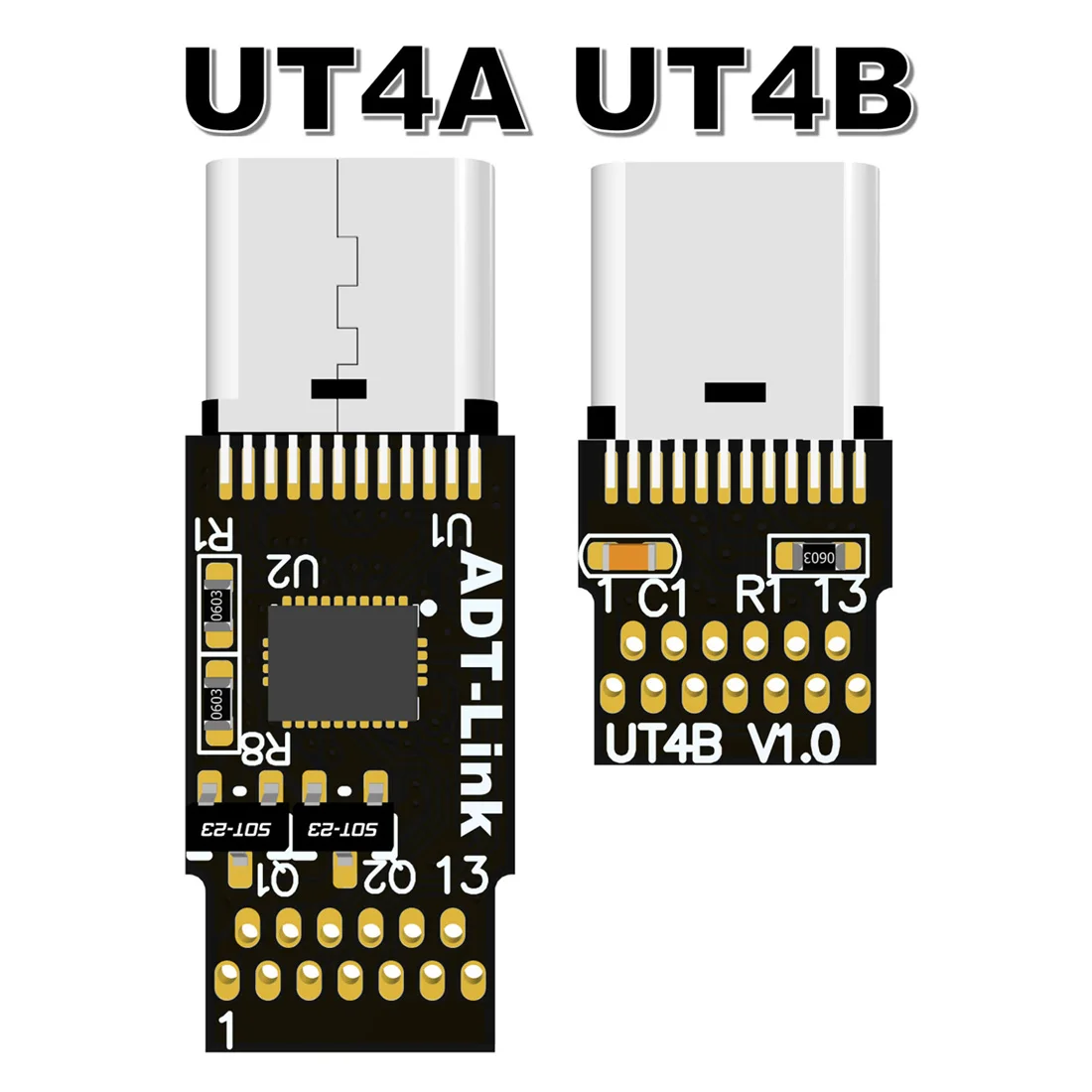

4. The PCB is made of high-quality materials with high frequency and low resistance. The PCB is made of precision. The PCB is made of high TG plates. The thickness of the copper material is thickened to 1oz. The PCB power circuit is strengthened and the use of 2 5V power core wires is strengthened, so that the transmission current is more powerful. Support up to 3A.
