25.5X25.5mm IFlight BLITZ F411 1S 5A BWhoop AIO F411 Flight Controller BLHELIS 5A 50mW Built In 2.4G CC2500 /2.4G ELRS RX 1S

25.5X25.5mm IFlight BLITZ F411 1S 5A BWhoop AIO F411 Flight Controller BLHELIS 5A 50mW Built In 2.4G CC2500 /2.4G ELRS RX 1S Item NO.: F47048-D1 F47048-D2

Write a Review
US$ 61.91
US$ 72.84 Save US$ 10.93 (15% Off)
Color
2.4G ELRS 2.4G CC2500
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name 25.5X25.5mm IFlight BLITZ F411 1S 5A BWhoop AIO F411 Flight Controller BLHELIS 5A 50mW Built In 2.4G CC2500 /2.4G ELRS RX 1S
Item NO. F47048-D1 F47048-D2
Weight 0.05 kg = 0.1102 lb = 1.7637 oz
Category DIY RC Drone Accessories
Brand iFlight
Creation Time 2022-04-29

PRODUCT DESCRIPTION

TOP FEATURES:

  • Built in 2.4G CC2500 Receiver/2.4G ELRS w/SMD Antenna

  • Support BLHeliSuite programmable

  • 5A continuous current

  • Super light only 4.8g

  • MCU:STM32F411

  • Power supply: 1S

  • Gyro: BMI270

  • Built-in VTX

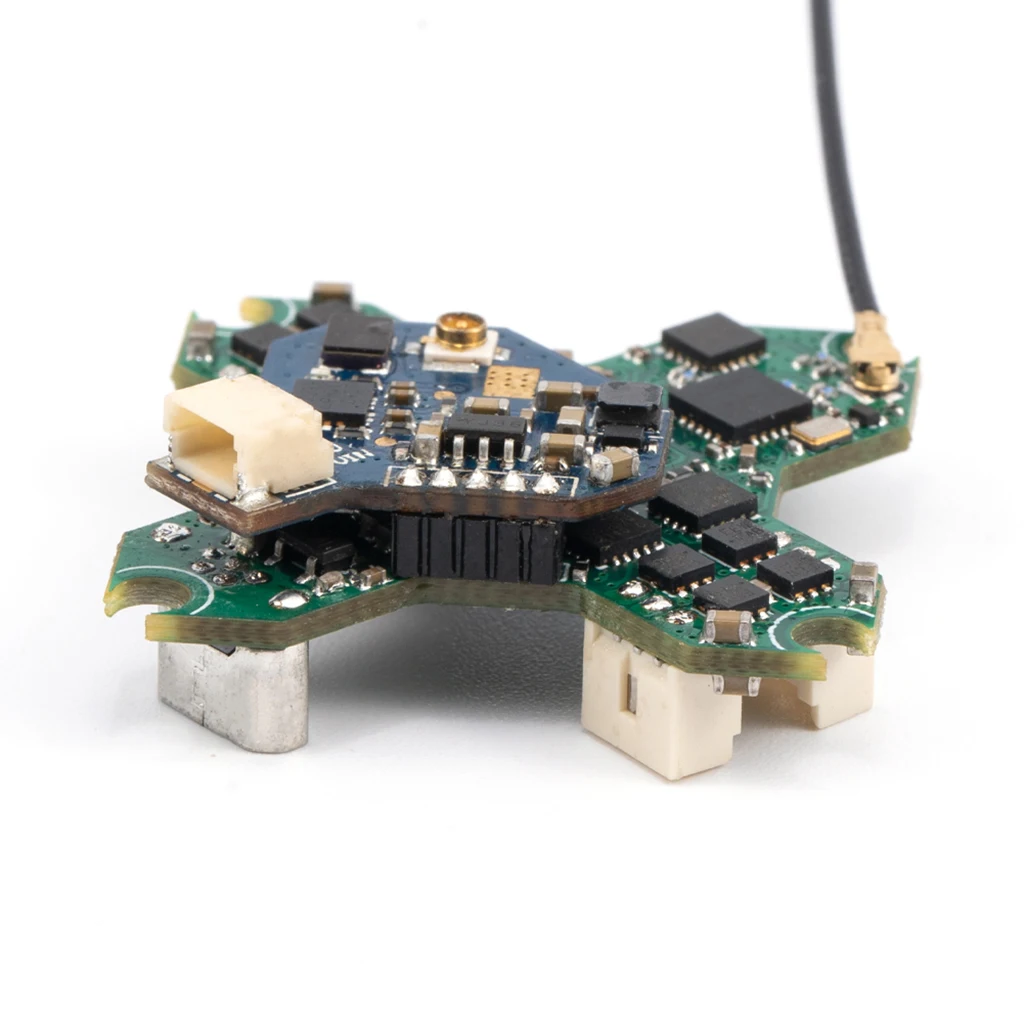

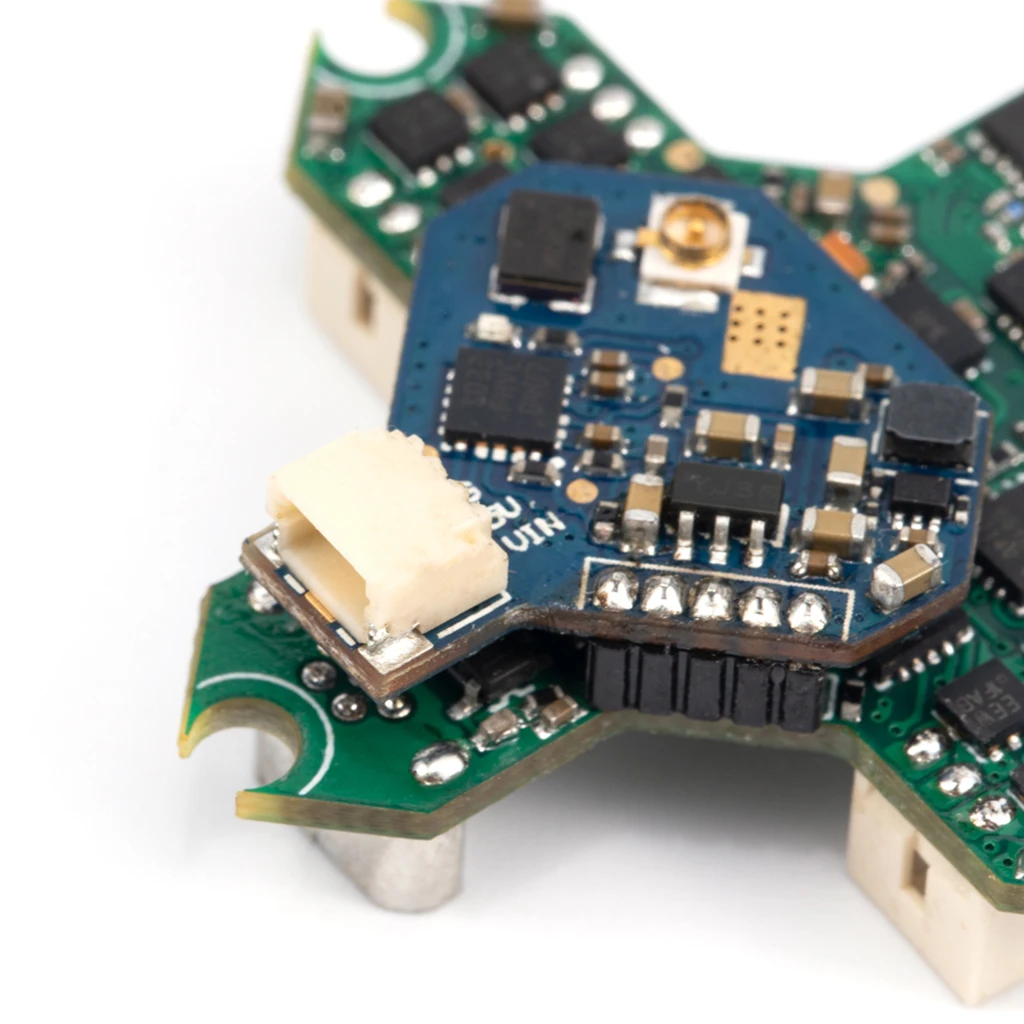

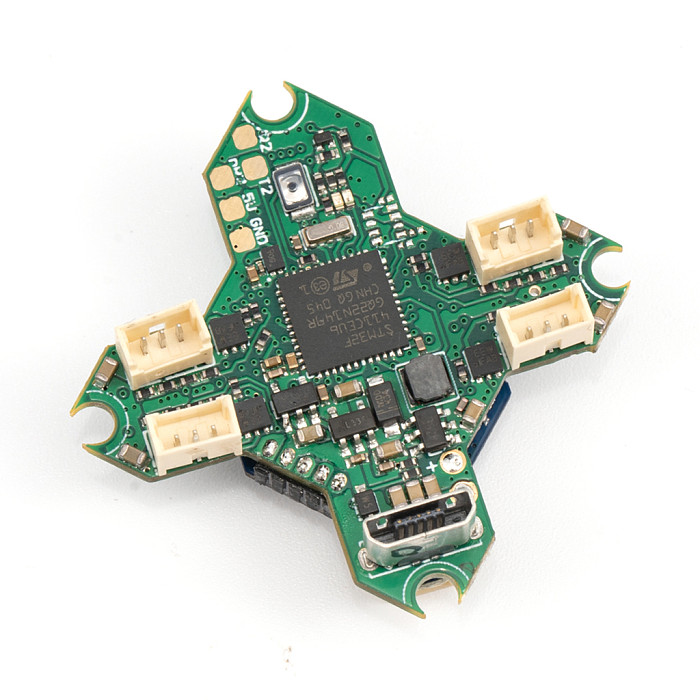

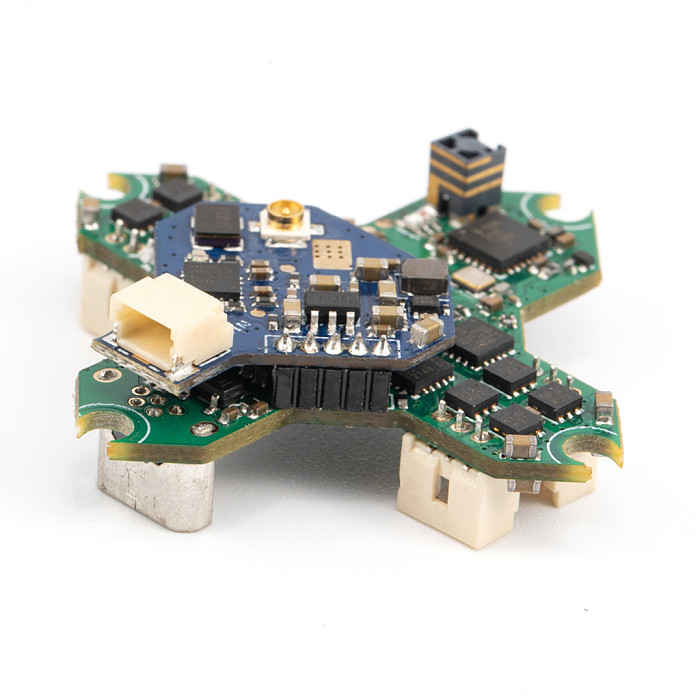

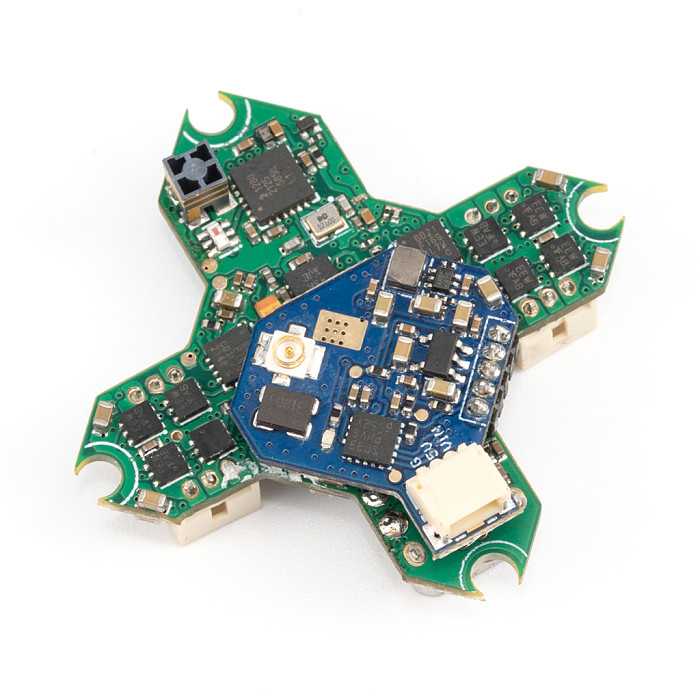

FC // BLITZ F411 1S 5A Whoop AIO Board

Weight: 4.8g (with power cable, VTX, and VTX antenna)

Mounting pattern: 25.5*25.5mm/φ3mm (half-hole)

FC Firmware: IFLIGHT_BLITZ_F411RX

BEC output: 5V 500mA

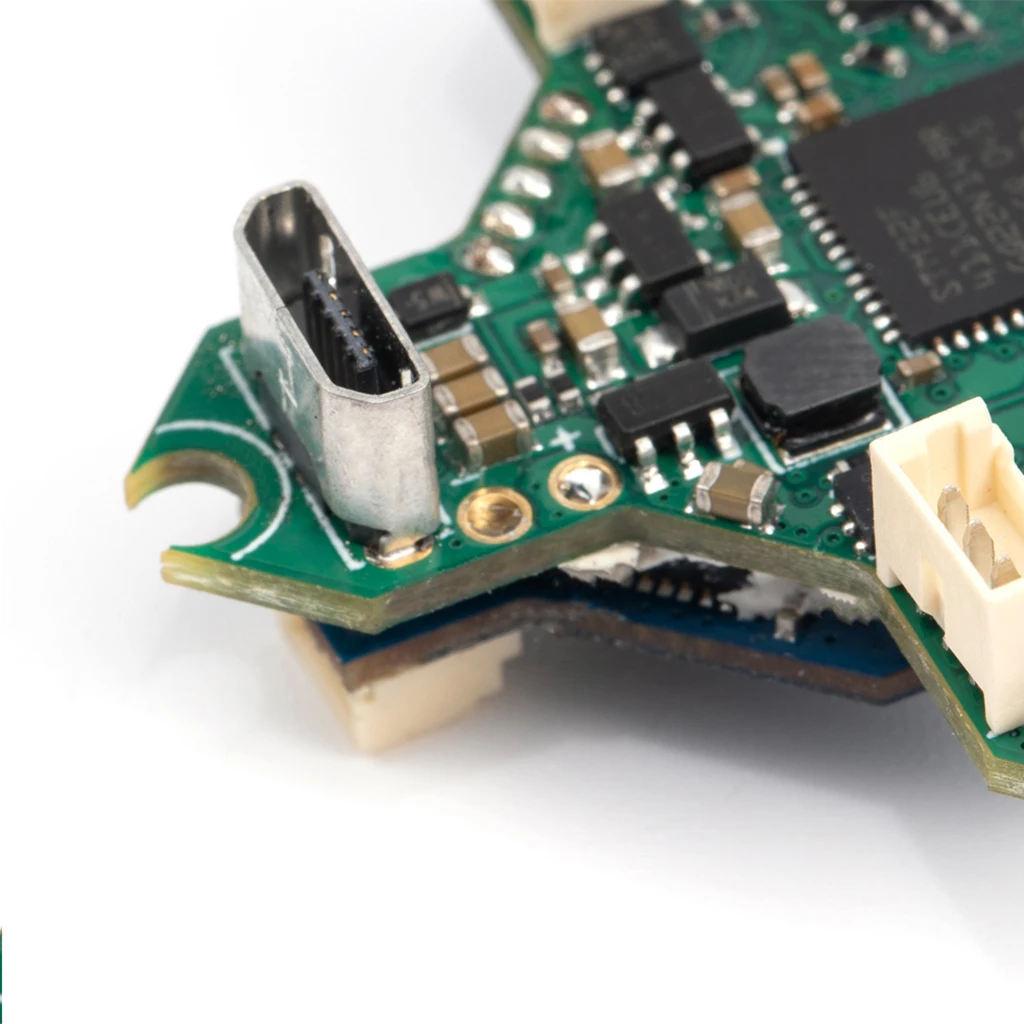

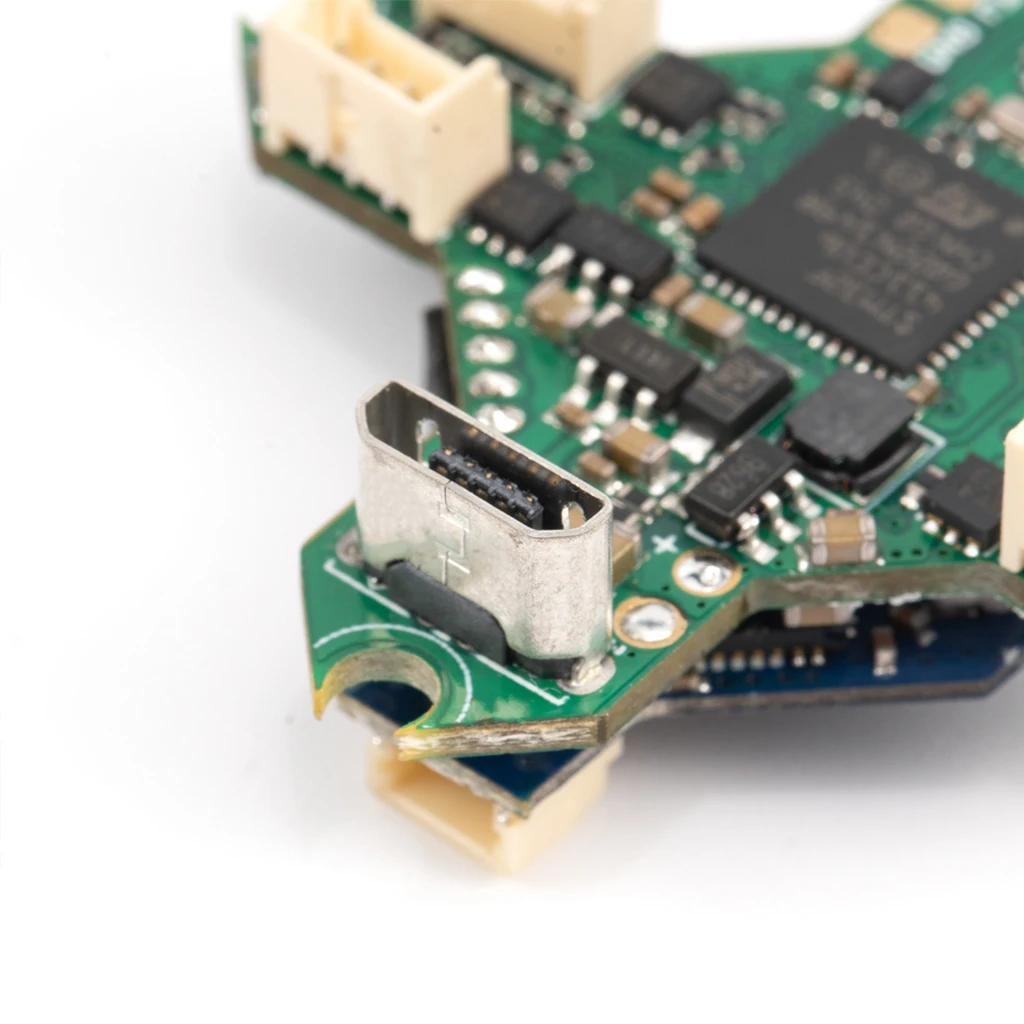

Connector: Micro-USB

MCU: STM32F411

INA pad: n uart2

Barometer: NO

Size: 29*29mm

Gyro: BMI270

Blackbox: NO

NOTE: F.PORT protocol RX input support, telemetry not supported.

ESC // 5A

Signal Support: Dshot, Oneshot, Multishot

Current: 5A continuous and peak 6A

ESC Firmware: O-H-30 BLS 16.8

Current sensor: yes

ESC Telemetry: NO

Current scale: 400

BLHeli: BLHeli-S

Input: 1S

VTX:

Protocol: Smart audio

Power: PIT/25/50mW

Connector: UFL/IPEX

Input voltage: 5V

Channels: 48CH


Package Includes:

1 x BLITZ F411 1S 5A Whoop AIO Board with Built-in 2.4G CC2500 Receiver / 2.4G ELRS w/SMD Antenna (As optional)

4 x M2 Rubber Balls

1x Whip antenna
