CopyProduct Name | HI-LINK HLK-20D2412C 20WDC DC 24v to 12v1600mA Power Module Wide Woltage Single-Channel Regulated Output DC Buck Module |
Item NO. | F37277 |
Weight | 0.045 kg = 0.0992 lb = 1.5873 oz |
Category | Consumer Electronics > Industrial Module |
Brand | HI-LINK |
Creation Time | 2020-04-17 |

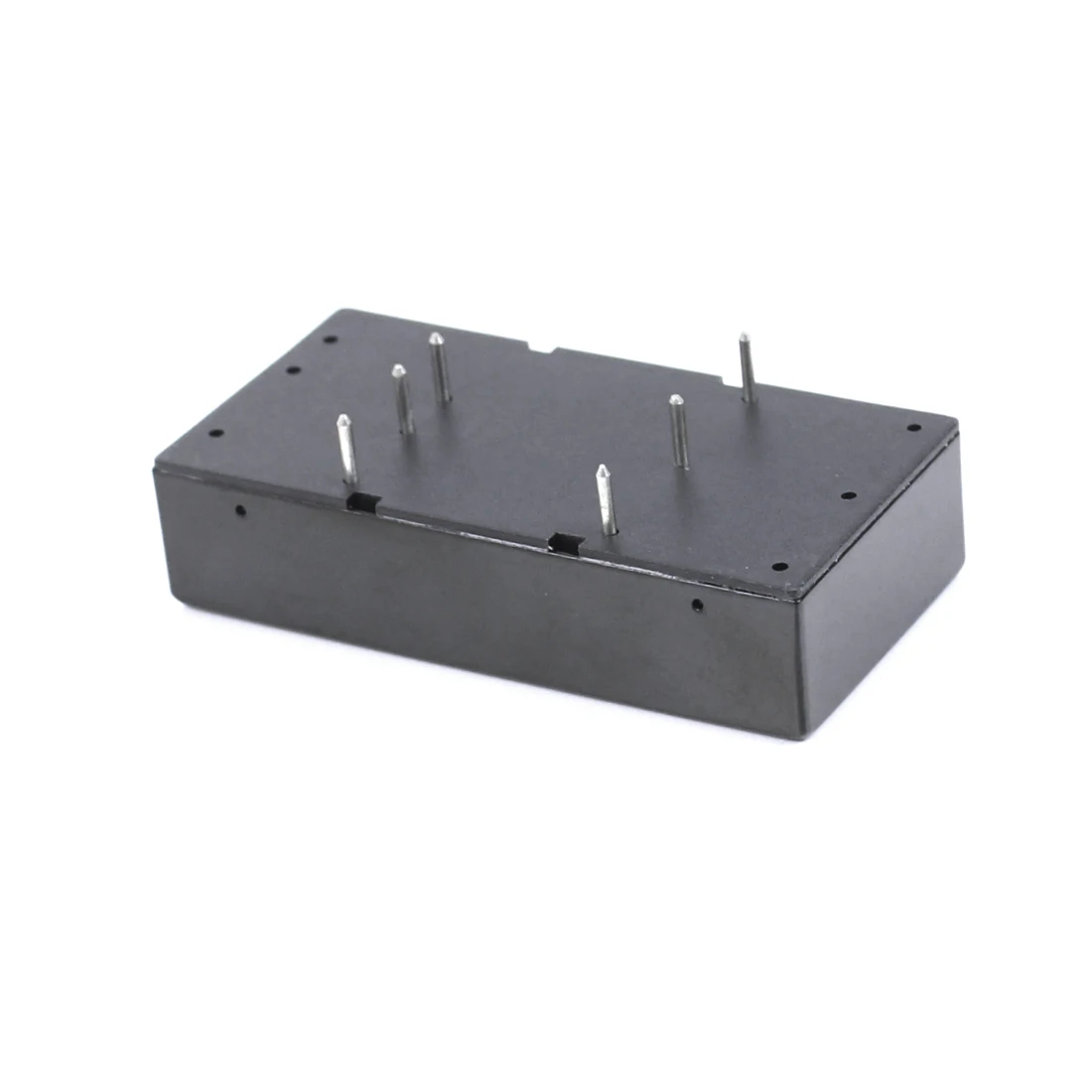

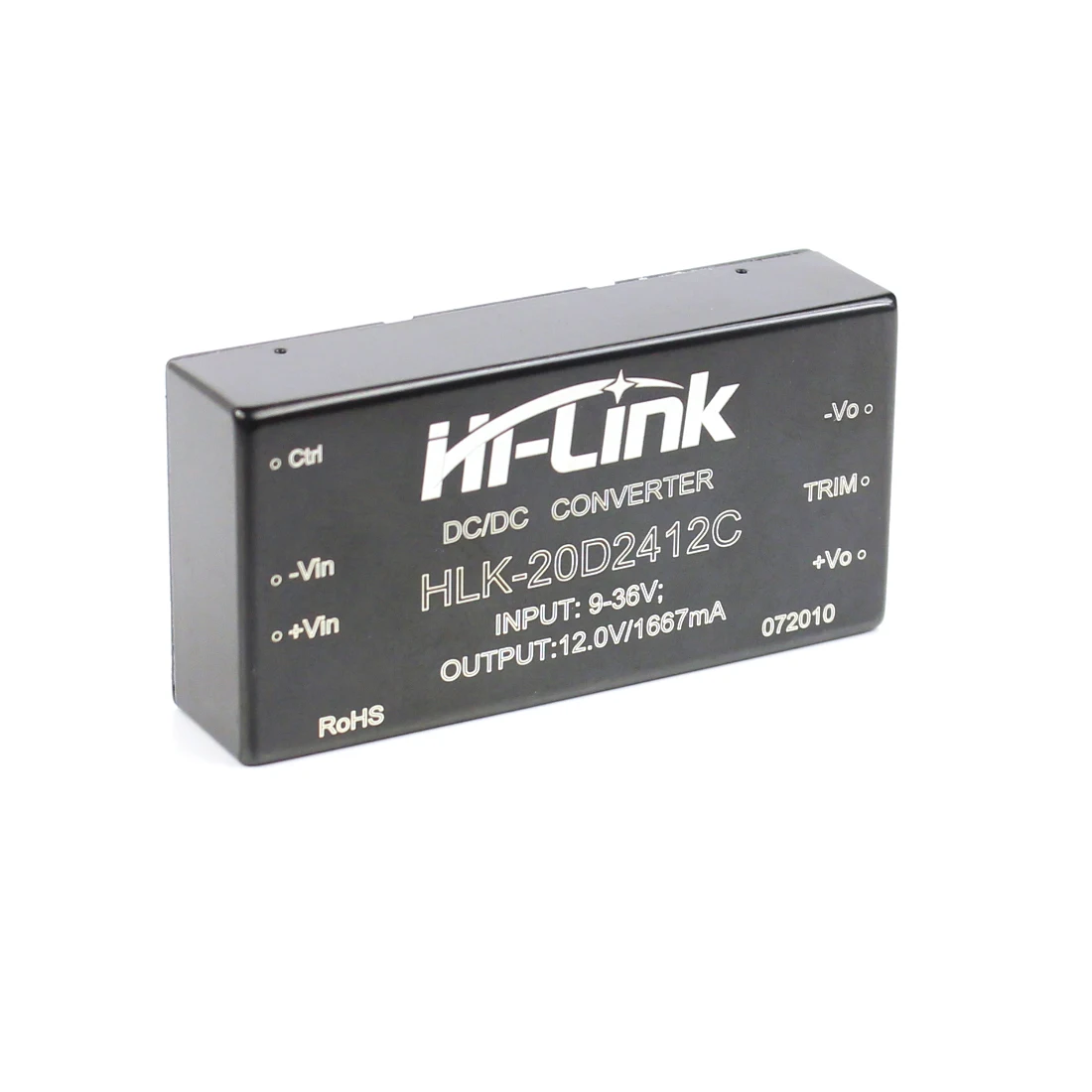

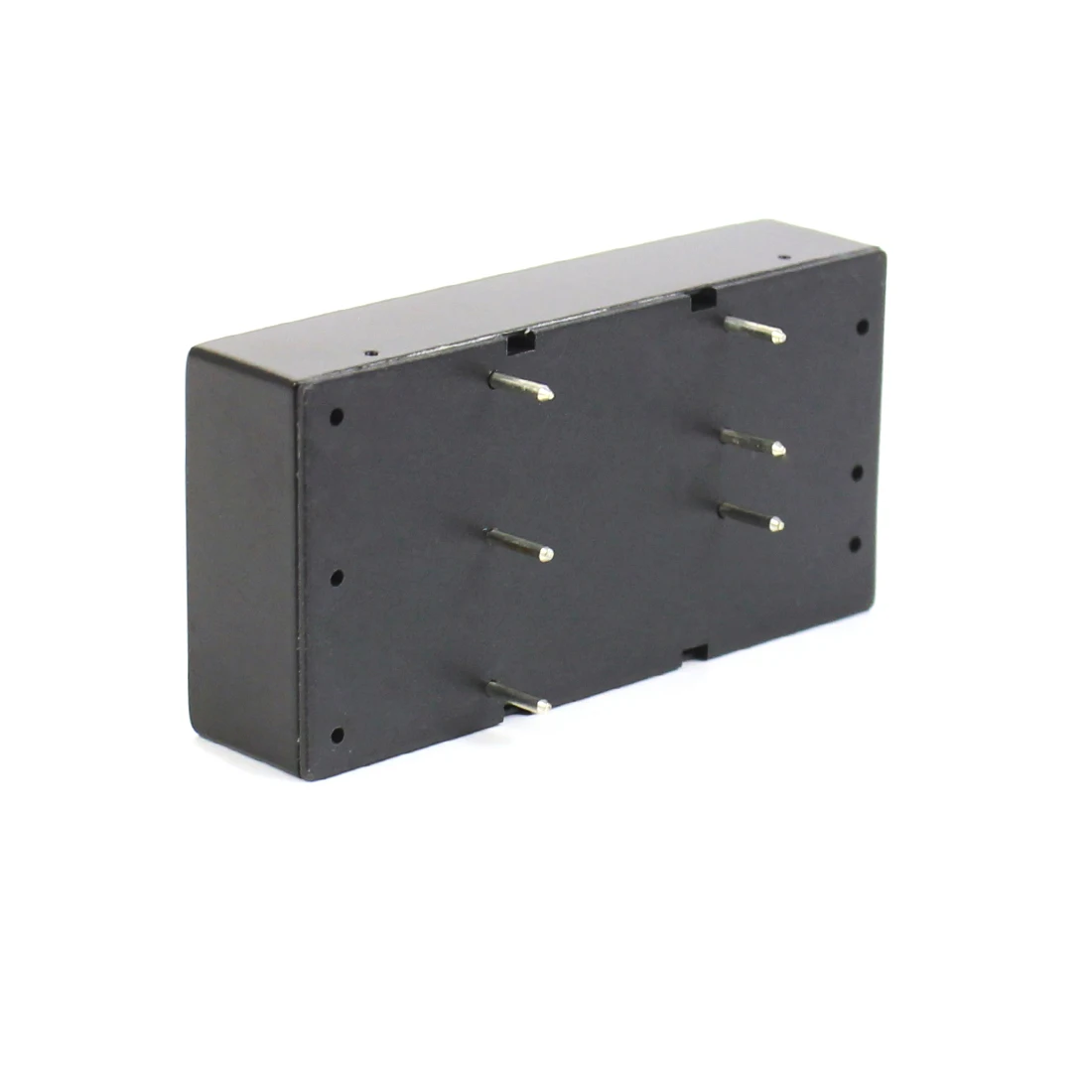

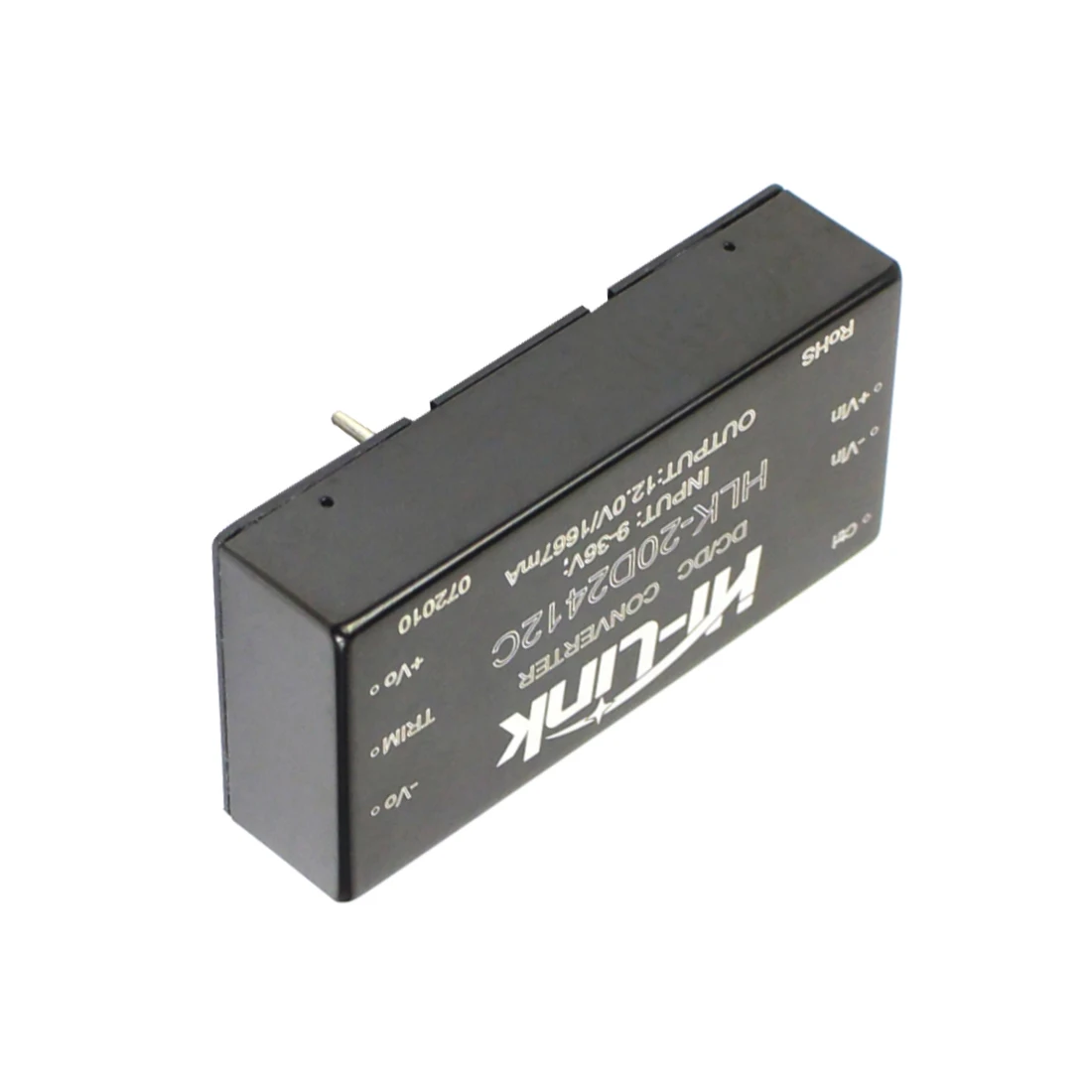

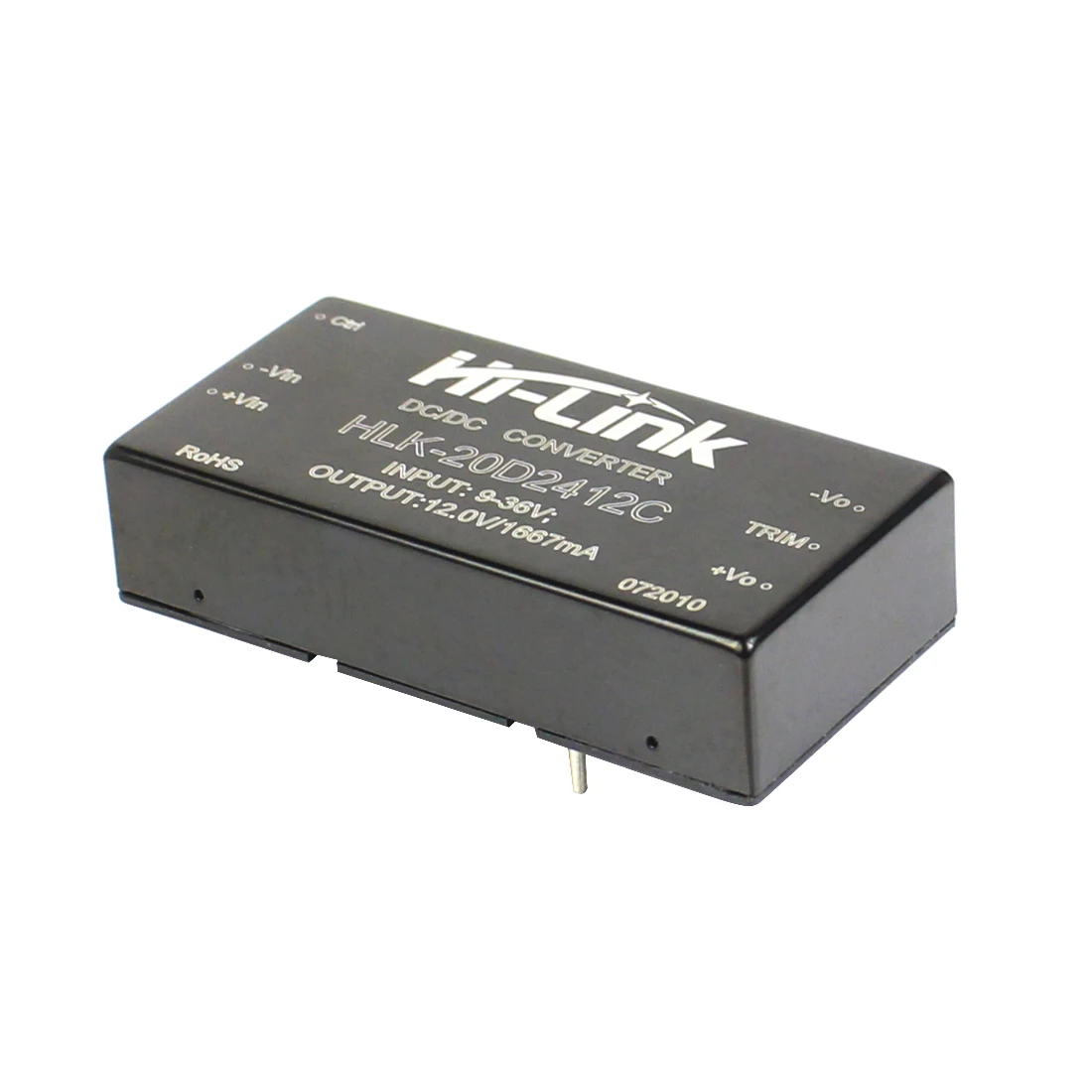

HI-LINK HLK-20D2412C 20WDC DC 24v to 12v1600mA Power Module Wide Woltage Single-Channel Regulated Output DC Buck Module
20W DC / DC power module 24VC series products output power is 20W, 4: 1 wide voltage input range, efficiency up to 91%, 1500VDC conventional isolation voltage, allowable operating temperature -40 ℃ ~ + 85 ℃, with output overcurrent, short circuit Protection function is widely used in medical, industrial control, power, instrumentation, communication, railway and other fields.
Product performance
I. Ultra wide range input (4: 1), output 20W
2. Conversion efficiency: 91% (Typ)
3. Isolation voltage: 1500Vdc
4. Ultra-low standby power consumption: 0.036W (typical value)
5. Super fast start: 1mS (typical value)
6. Operating temperature range: -40 ℃ ~ + 85 ℃
7. Input undervoltage protection, output short circuit, overcurrent, overvoltage protection
8. Metal outer wall, low output ripple
9. National standard pins, PCB board straight plug installation
10. Adopting high-grade environmental protection waterproof and thermally conductive adhesive potting, moisture-proof, shock-proof. Meet the waterproof and dustproof IP65 standard.
11. High reliability, long life design, long continuous working time
Size:50.8*25.4*11mm
