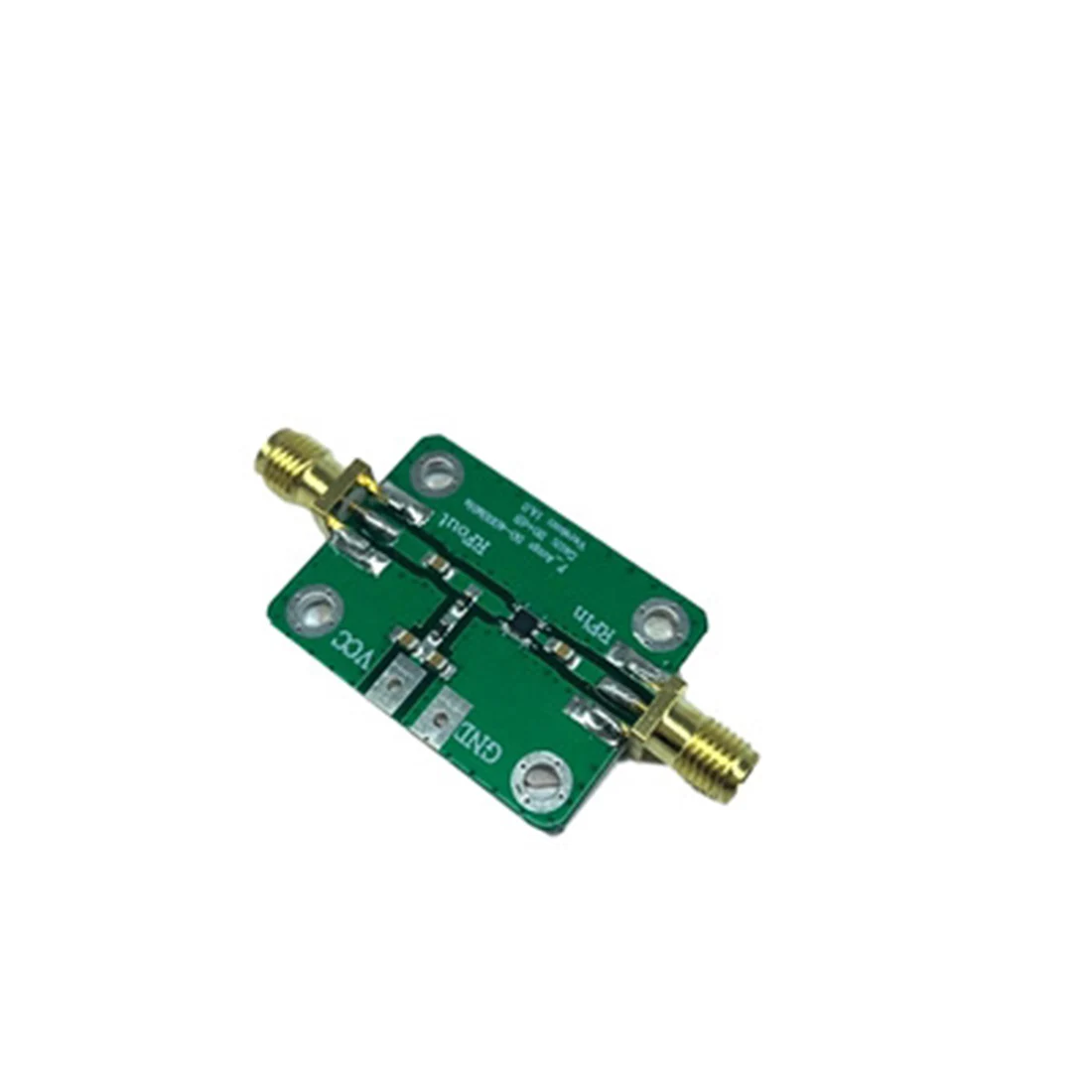

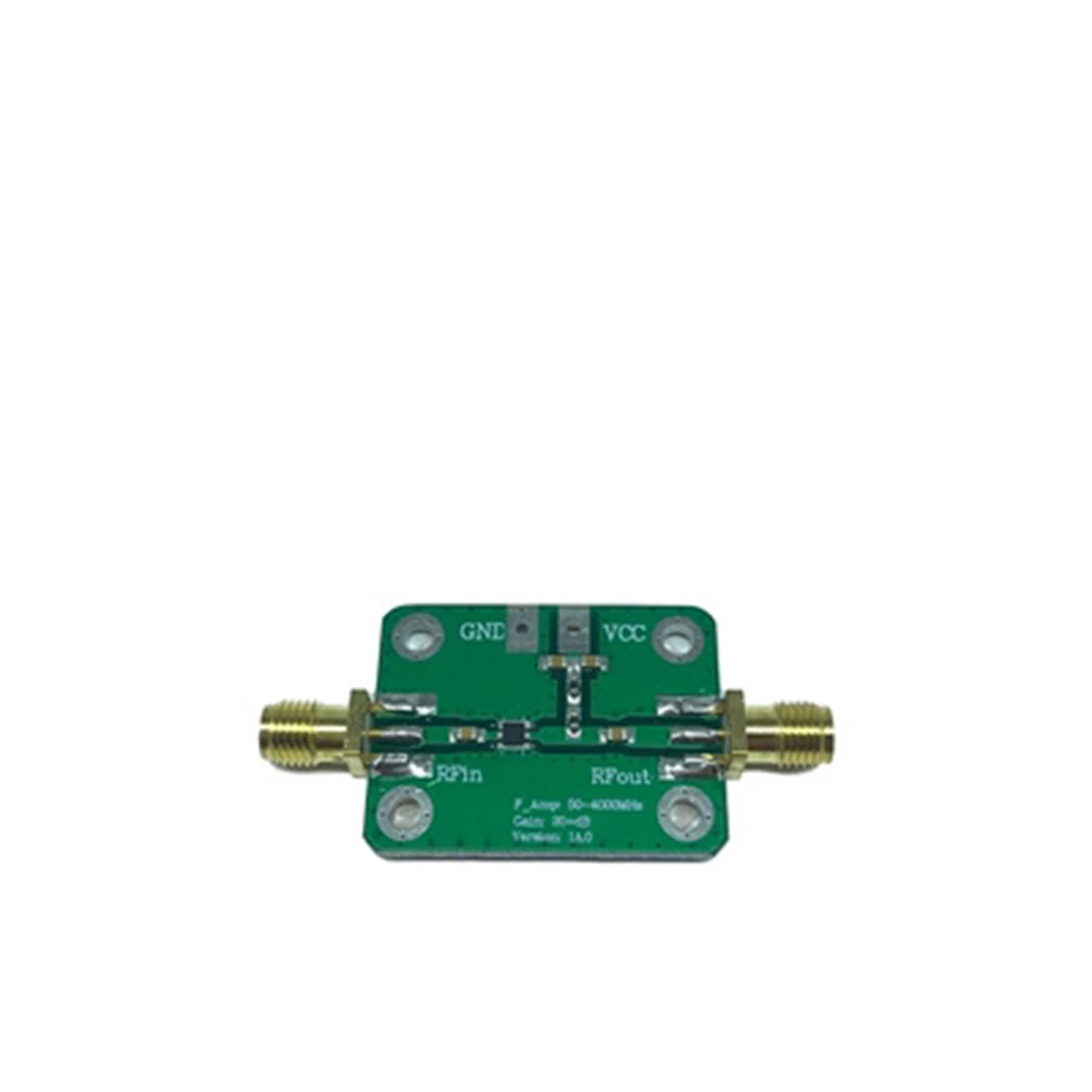

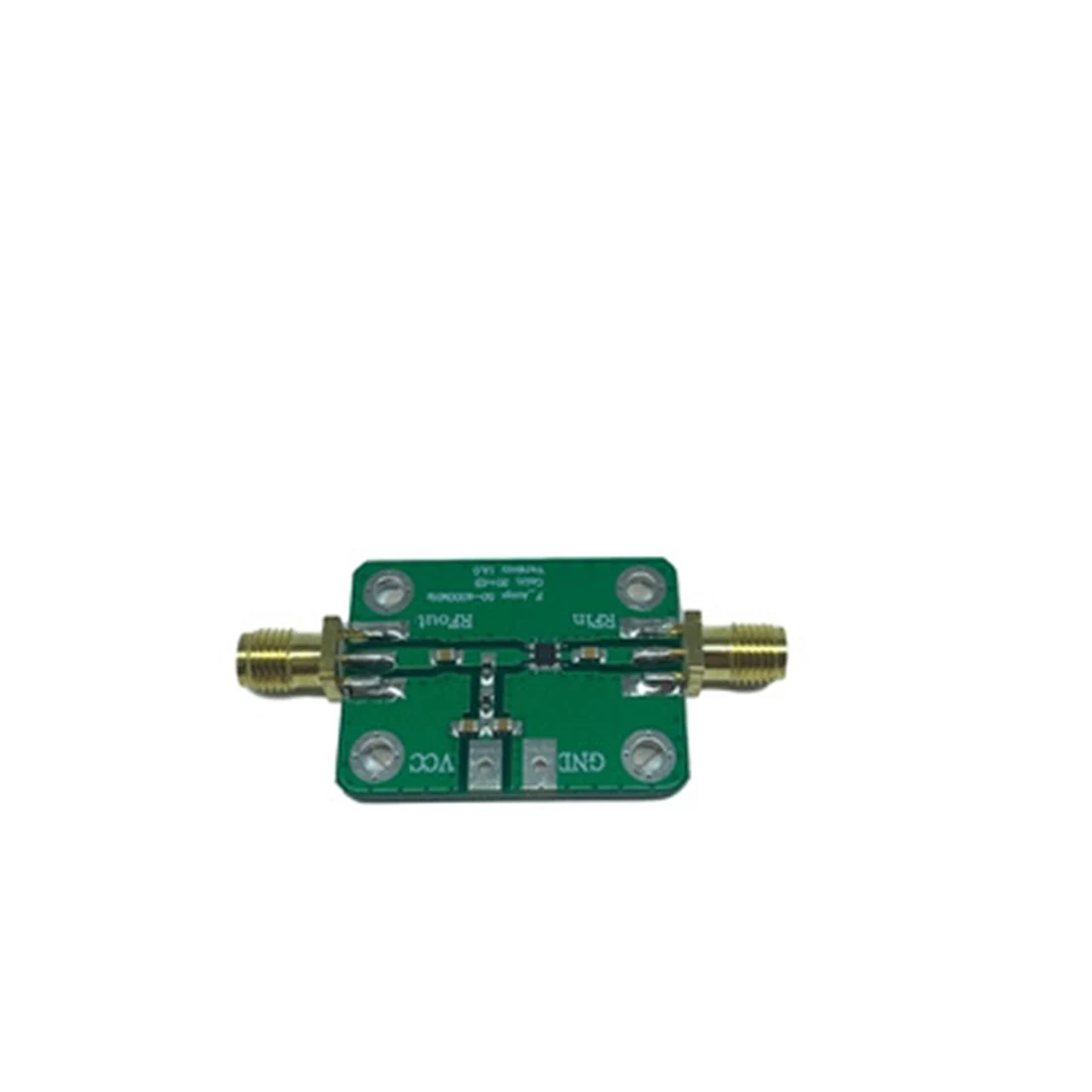

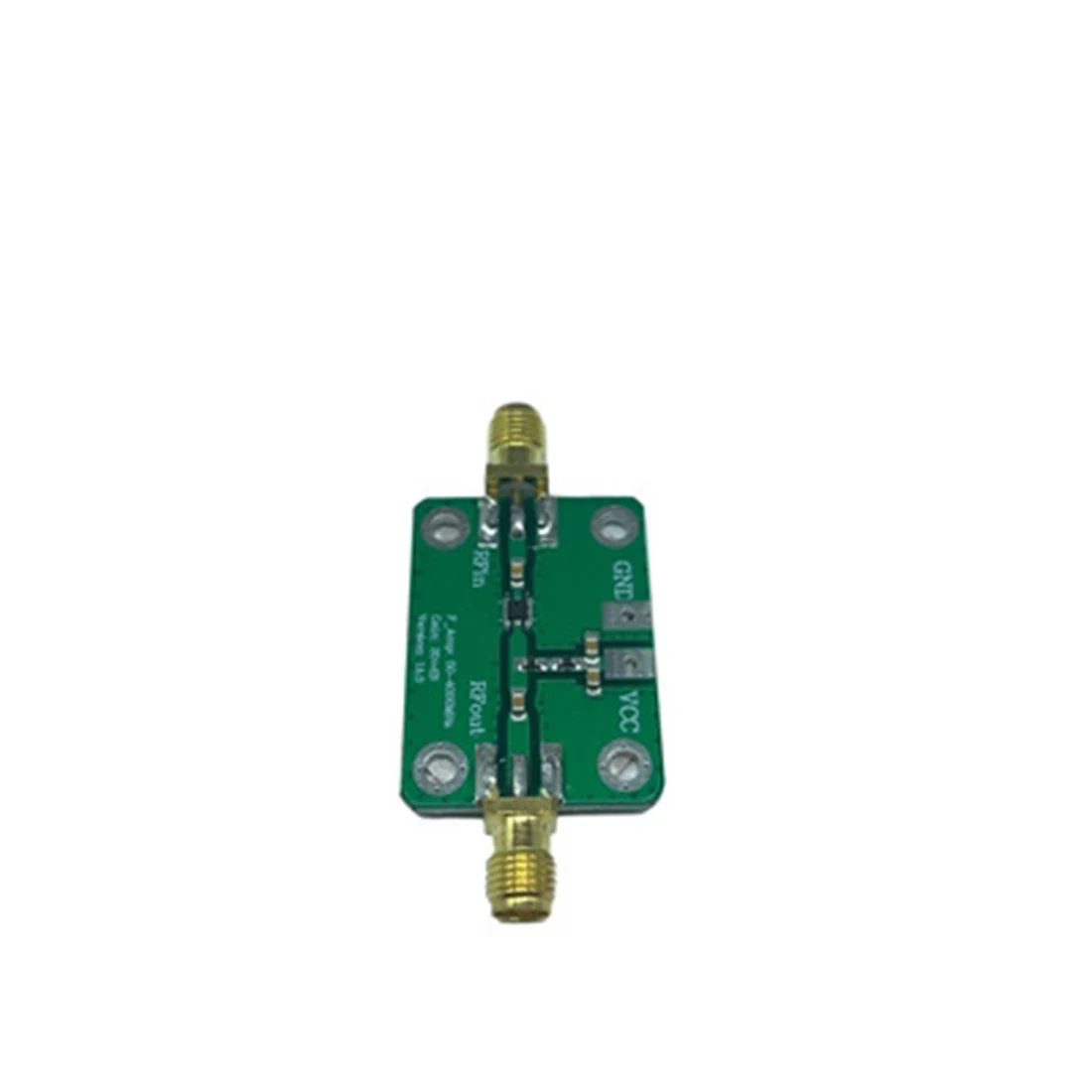

| Product Name | XT-XINTE 433MHz Gain 24dB Ultra Low Noise RF Amplifier LNA Front-end Amplifier for 433MHz Radio Receivers |
| Item NO. | F46674 |
| Weight | 0.06 kg = 0.1323 lb = 2.1164 oz |
| Category | DIY RC Drone Accessories |
| Creation Time | 2022-03-29 |
Front-end amplifier for 433MHz receivers with ultra-low noise figure and high RF gain. It is very suitable for amateur radio receiver front-end amplifier use.
Technical specifications:
1）Working voltage: 3---5V
(2) Operating current: 50--100mA
3）Working frequency: 380-480MHz
4) Amplification gain: 24dB
5) Maximum output: 100mW
6) Noise figure: 0.5dB (very small)
Dimension: 25*33mm (not including connector size)
Product weight: 10g
