Tarot Tarot Z25 CNC Folding Arm Seat Mount TL25A1 / 6 Degree Tilt Holder TL25A2 Matte Black for RC DIY FPV Multicopter
Tarot Z25 CNC Folding Arm Seat Mount TL25A1 / 6 Degree Tilt Holder TL25A2 Matte Black for RC DIY FPV Multicopter

Tarot Z25 CNC Folding Arm Seat Mount TL25A1 / 6 Degree Tilt Holder TL25A2 Matte Black for RC DIY FPV Multicopter Item NO: F23365- F23366

US$ 17.30 (12% Off)
US$ 19.66 Save US$ 2.36
type:
TL25A1 TL25A2
Shipping Cost:
Estimate Shipping Cost
Quantity:

Specifications
Product Name Tarot Z25 CNC Folding Arm Seat Mount TL25A1 / 6 Degree Tilt Holder TL25A2 Matte Black for RC DIY FPV Multicopter
Item NO F23365- F23366
Weight 0.1210 Kg
Category DIY RC Drone Kit / RC Drone Accessories > DIY RC Drone Kit
Brand Tarot
Creation time 2017-12-05

Detail

Tarot Z25 CNC Folding Arm Seat Mount TL25A1 / 6 Degree Tilt Holder TL25A2 Matte Black for RC DIY FPV Multicopter



Applicable to the diameter dia. 25MM four-axis / six-axis / eight-axis multi-rotor unmanned aerial vehicle use, the use of button-type unlock, a key to unlock the automatic folding, easy to use simple, retractable. Locking mechanism can be based on the arm vibration, automatic one-way lock function.
In line with the needs of industrial-grade unmanned aerial vehicles, the overall use of 6061-T6 aluminum alloy super-hard aluminum alloy material, high-precision multi-axis CNC machining. X4 / X6 / X8  and other models can be installed directly.

Related Product Code:
Z25 folding arm seat / matte black TL25A1
T25 folding arm seat / 6 degrees tilt TL25A2
Z28 waterproof folding arm seat / matte black TL28A1
T28 waterproof folding arm seat / 6 degrees tilt TL28A2
Z30 waterproof folding arm seat / matte black TL30A1
Z28 / Z30 metal connection plate TL28A3

Packing lists:
Metal left support plate × 1 (54.5 × 40 × 5.5MM) 15.0G
Metal right support plate × 1 (54.5 × 40 × 5.5MM) 15.0G
M3.0 × 5MM step hexagon screw × 8
M2.5 × 5MM cup head hexagonal screws × 4
dia 4 × 26MM spring × 2
H5 × 22.5MM hexagonal aluminum column × 2
M2.5 × 5MM semi-circular hexagonal screws × 2
Unlock the slider × 1 (66 × 16 × 21.5MM) 6.2G
Self - locking copper pillar × 1 (dia 6 × 27MM) 5.8G
dia 25MM metal machine arm clamp × 1 (58 × 30 × 35MM) 24.8G
dia 6 × 28.5MM Locating pin × 1 (dia 7 × 37.5MM) 6.1G
M3.0 × 6MM round head with hex head screws × 1
M3 metal gasket x 1

Applicable to the diameter dia. 25MM four-axis / six-axis / eight-axis multi-rotor unmanned aerial vehicle use, the use of button-type unlock, a key to unlock the automatic folding, easy to use simple, retractable. Locking mechanism can be based on the arm vibration, automatic one-way lock function.
In line with the needs of industrial-grade unmanned aerial vehicles, the overall use of 6061-T6 aluminum alloy super-hard aluminum alloy material, high-precision multi-axis CNC machining. X4 / X6 / X8 and other models can be installed directly.

Related Product Code:
Z25 folding arm seat / matte black TL25A1
T25 folding arm seat / 6 degrees tilt TL25A2
Z28 waterproof folding arm seat / matte black TL28A1
T28 waterproof folding arm seat / 6 degrees tilt TL28A2
Z30 waterproof folding arm seat / matte black TL30A1
Z28 / Z30 metal connection plate TL28A3

Packing lists:
Metal left support plate x 1 (54.5 x 40 x 5.5MM) 15.0G
Metal right support plate x 1 (54.5 x 40 x 5.5MM) 15.0G
M3.0 x 5MM step hexagon screw x 8
M2.5 x 5MM cup head hexagonal screws x 4
dia 4 x 26MM spring x 2
H5 x 22.5MM hexagonal aluminum column x 2
M2.5 x 5MM semi-circular hexagonal screws x 2
Unlock the slider x 1 (66 x 16 x 21.5MM) 6.2G
Self - locking copper pillar x 1 (dia 6 x 27MM) 5.8G
dia 25MM metal machine arm clamp x 1 (58 x 30 x 35MM) 24.8G
dia 6 x 28.5MM Locating pin x 1 (dia 7 x 37.5MM) 6.1G
M3.0 x 6MM round head with hex head screws x 1
M3 metal gasket x 1

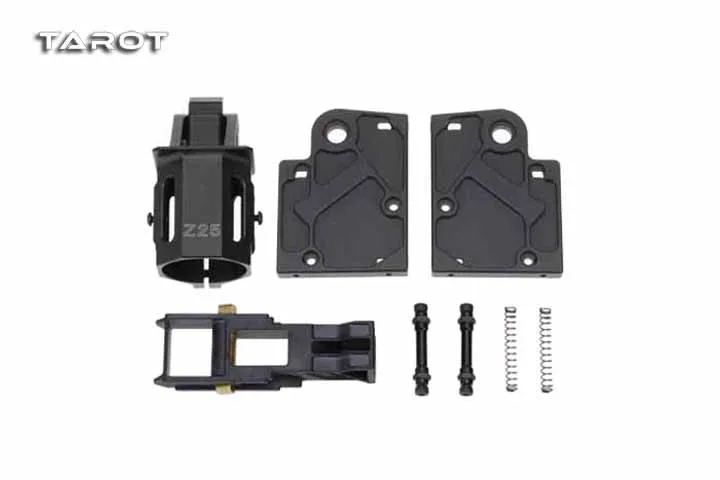

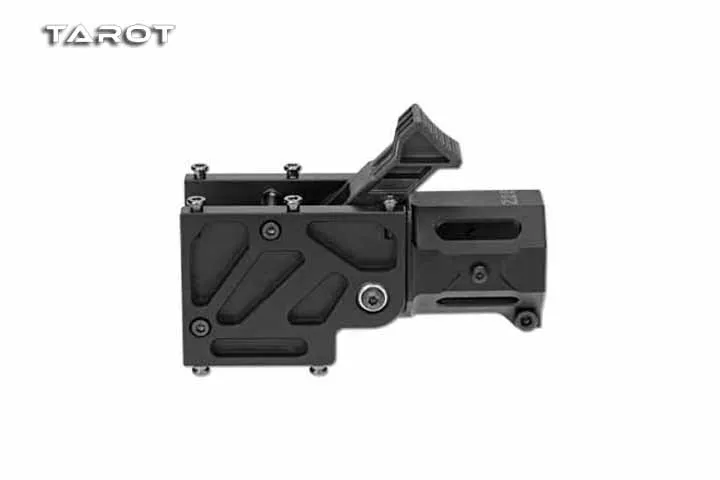

TL25A1:

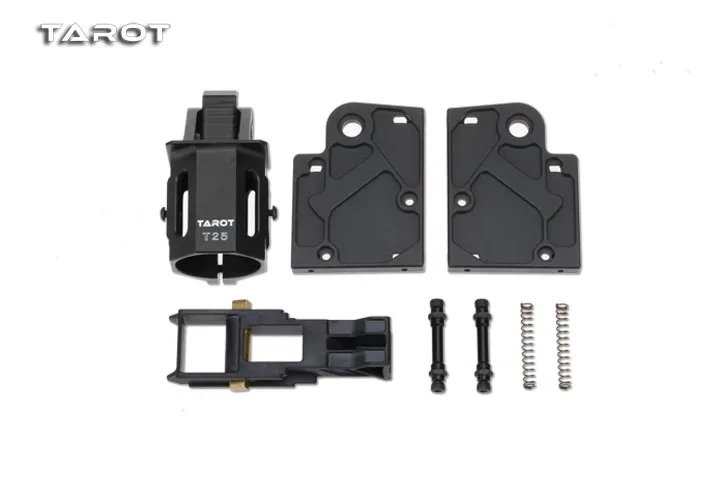

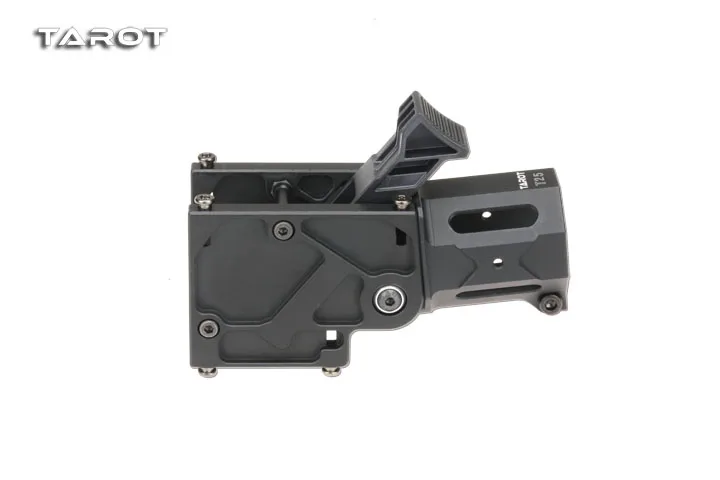

TL25A2:
