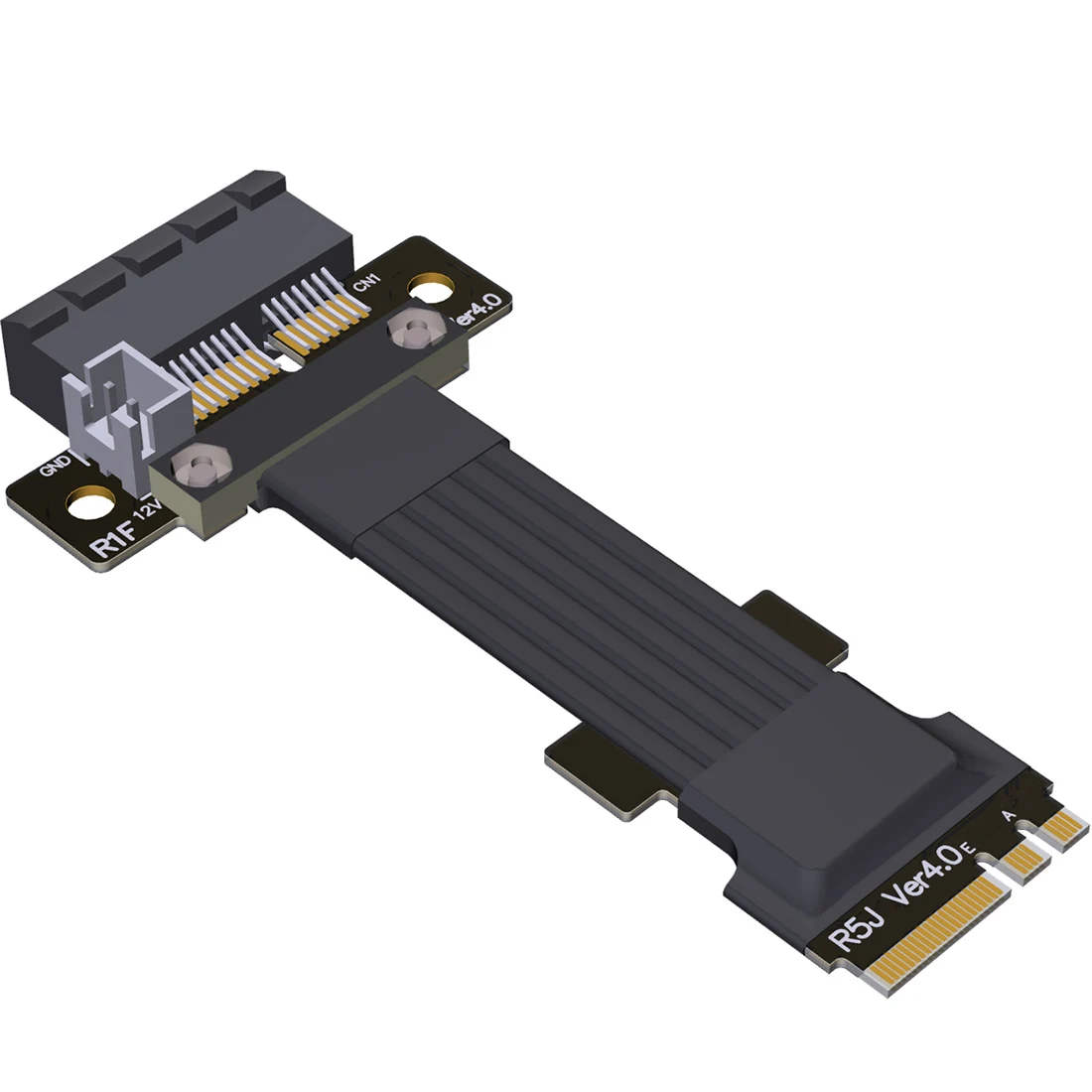

M.2 WiFi A.E Key To PCIe4.0 x1/x4/x16 Extension Cable Full Speed Gen4 8Gbps Adapter PCI-E 4.0 M2 WiFi A+E key To 1x Riser Cable

Brand：XT-XINTE

Product Name: M.2-AEkey to PCIE4.0 X1/x4/x16 adapter board extension cable

Cable length: 15cm 25cm (support cable length customization, if you need other length, please contact us to change the price.)

Speed bandwidth: PCIe4.0x1/x4/x16 gen4 8G/bps

Product function: M.2 NVME SSD through the extension cable to the motherboard M.2 WiFi interface

Purchase Restrictions: Only for professional engineers to specify the purchase, not for general use.

Purchase Tips: Be sure to buy 1~2 samples first to test and verify that they are correct before purchasing in bulk.

Tips: There is a problem that this product is not compatible with other products, incorrect assembly or improper operation will burn your device. Limited to professional engineers designated to buy. This product is a custom product is not refundable or exchangeable, please consider and confirm clearly before placing an order to buy.

Length description: The length of the wire refers to the part of the wire alone, not including the PCB and connectors.

Product advantages:

1. Wire advantage, the use of high-speed wire, support PCIe high-speed stable transfer.

2 wire length advantage, from 3 cm to 1 m can accept custom, the store sales of adapter cable, wire impedance is low, within 60 cm wire length support PCIe3.0 full speed.

3. differential signal without over-hole design, there is no parasitic capacitance and parasitic inductance signal attenuation interference problems, not to mention the CAF micro-short circuit phenomenon, the product is durable

4, the product uses high-quality materials, PCB workmanship precision, copper thickness thickened to 1oz, gold finger plating content sufficient, gold plating sufficient conductivity, can reduce the oxidation of rust impedance caused by the rise of the blue screen of death. Full-speed stability, no need to slow down, there is no compatibility problem.

5. The product selection of the wire itself is very durable, the use of metal welding points up to 3mm thick PCB spacer protection, and lock on the screws and hexagonal nuts fastened, the product is strong and reliable resistance to pulling, anti-interference, there will be no broken wire drop nail problem. The wire can be bent or folded, does not affect the use.

6. PCB shortening and fattening design, shortening will not be stuck to the graphics card, fattening and lengthening design makes the board easier to install, reducing the chance of damage.

Technical issues in general.

What is the thickness of the cable? Is it soft? Can be bent?

The wire thickness of this product is 1.4mm, so the wire of this product is a bit stiffer. The wire can be bent and folded, but do not pull it.

What is the quality of the wire? Is it shielded?

EMI shielding conductive polymer is used, a new material for EMI shielding, and flat cable design. This technology allows each cable to be completely covered by an EMI shield of conductive polymer to prevent incoming or outgoing emissions of electromagnetic frequencies, minimize interference and performance degradation, and reduce the weight of the spreader.

Is an external power supply required?

The power circuitry of our products is well designed and the extension cable does not require an additional external power supply.

Note for purchase:

1. When plugging in the line must identify the direction, do not insert the reverse or insert the offset, to prevent burning equipment. When plugging in the device first hold the socket before plugging in the line, to avoid excessive force will be plugged into the socket pins broken. The second end of the wire and the board welding within 2cm of the bend is prohibited to prohibit pulling.

2. various motherboards and equipment signal driving ability and other conditions are different, our results are not guaranteed and your test results are consistent, as long as the extension cord is connected, the signal will have loss.

3. graphics card or motherboard is an electronic device will increase with time and aging oxidation, and then connected to the extension cable will only be more unstable, does not support more than three years of old equipment.

4. only product engineers designated to buy, only for product testing, not for other uses.
