JMT Crazybee F3 Flight Controller OSD Current Meter 4 IN 1 5A 1S Blheli_S ESC Compatible Frsky / Flysky Receiver for Whoop Drone Item NO.: -F24210

Name: JMT Crazybee F3 Flight Controller OSD Current Meter 4 IN 1 5A 1S Blheli_S ESC Compatible Frsky / Flysky Receiver for Whoop Drone
Brand: JMT
SKU: -F24210
Price: 28.38 USD
Availability: SoldOut
Rating: 3.7 (3 reviews)

3.7

(3)

Sold (227)

US$ 25.54 ~ US$ 28.38

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 28.38	US$ 26.96	US$ 25.54

Sold Out

Product Name	JMT Crazybee F3 Flight Controller OSD Current Meter 4 IN 1 5A 1S Blheli_S ESC Compatible Frsky / Flysky Receiver for Whoop Drone
Item NO.	-F24210
Weight	0.045 kg = 0.0992 lb = 1.5873 oz
Category	DIY RC Drone Accessories > Receiver
Brand	JMT
Creation Time	2018-03-15

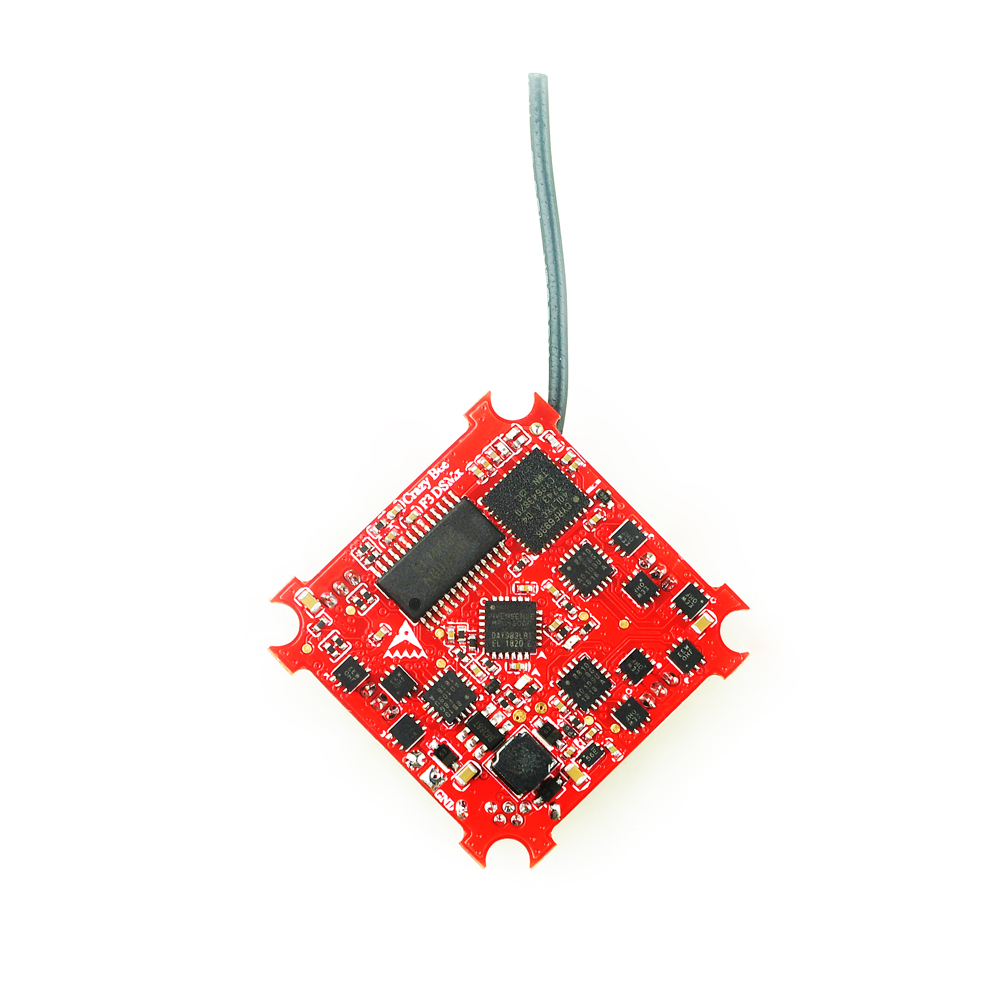

JMT Crazybee F3 Flight Controller OSD Current Meter 4 IN 1 5A 1S Blheli_S ESC Compatible Frsky / Flysky Receiver for Whoop Drone

Frsky or Flysky Receiver optional, Please choose the item according to your transmitter.

Specifications:
Firmware: Betaflight_3.3.0_Crazybee
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)
Power supply: 1S battery input (DC 3.5-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Flysky receiver with telemetry AFHDS/AFHDS-2A compatible
Built-in Betaflight OSD(SPI Controll)
Built-in Current meter (Max 14A,could be modified to 28A by replace resistor)
Built-in 5V 0.8A BEC with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Heading LED Ready
Board size: 28.5 * 28.5MM
Board weight: 3.5 g

ESC parameters:
Power supply: 1S LiPo/LiPo HV (4.2v/4.35v)
Current: 5A continuous Max 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_L_5_REV16_6.HEX
Motor connector: JST PH1.25 3pin
Signal Support: Dshot150/Dshot300/Dshot600/Oneshot125/Multishot/PWM

Receiver parameters:
SPI BUS receiver
Frsky D8/D16 switchable
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitting and receiving 1 m from the ground): 300m
Failsafe support

Package Included:
1 x Crazybee flight controller ESC Flysky/Frsky receiver

2019-09-15

Ga****sa

5V regulator died on the board after just a handful of batteries and now it will only power on properly via USB. Cheap junk and vendor become unresponsive after sending video showing the item was defective.

2018-11-02

K****N

Great price on this. Flies great and it's the v1.2 flight controller with smart audio !

2018-10-16

J****D

Perfect brushless whoop flight controller. Direct plug in for motors, only need solder video wires and lipo leads to get going. On-board SPI connected RX works well and it has telemetry back to the radio and ij OSD. Uart for smartaudio is available
