JMT 4-axle GPS Mini Drone Helicopter Parts ARF DIY Kit: GPS APM 2.8 Flight Control EMAX 20A ESC Brushless Motor

JMT 4-axle GPS Mini Drone Helicopter Parts ARF DIY Kit: GPS APM 2.8 Flight Control EMAX 20A ESC Brushless Motor Item NO.: F02047-C

Write a Review
US$ 62.70
US$ 73.76 Save US$ 11.06 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name JMT 4-axle GPS Mini Drone Helicopter Parts ARF DIY Kit: GPS APM 2.8 Flight Control EMAX 20A ESC Brushless Motor
Item NO. F02047-C
Weight 0.96 kg = 2.1164 lb = 33.8630 oz
Category DIY RC Drone Accessories > DIY RC Drone Kit
Brand JMT
Creation Time 2019-05-20

JMT 4-axle GPS Mini Drone Helicopter Parts ARF DIY Kit: GPS APM 2.8 Flight Control EMAX 20A ESC Brushless Motor


Package Include:

4 x A 2212 A2212 1400kv Brushless Outrunner Motor
4 x EMAX Simon K Multi-Rotor 20A Brushless Speed Controller ESC
2 x FC7X4.5 CW And CCW Electric Paddle Clover Propellers
1 x APM 2.8 Multicopter Flight Controller
1 x 6m GPS with Compass l5883 25cm Cable
1 x Multifunction Power Distribution Board 5.3V BEC
5 x 10cm Servo Extension Lead Wire Cable Male To Male Control Board
1 x GPS Folding Antenna Mount Holder Metal
12 x Thick Gold Plated 3.5mm Bullet Connector
1 x Hook and Loop Fastening Tape
1 x Deans Style T Plug Male Connector

aeProduct.getSubject()



aeProduct.getSubject()

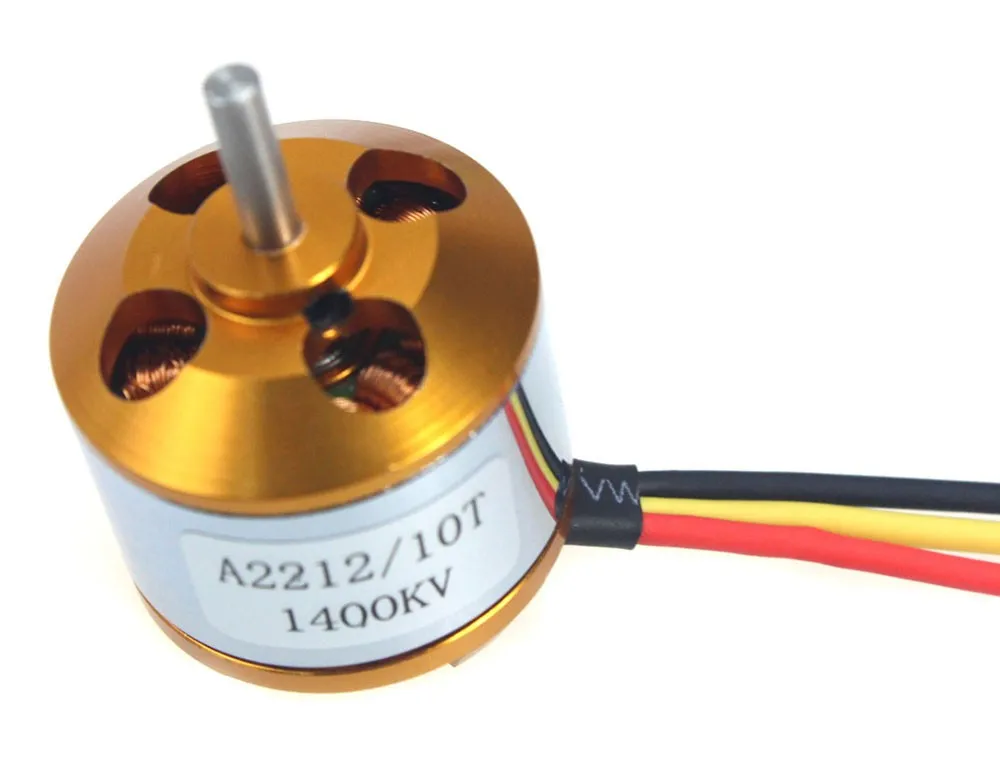

1. A 2212 A2212 1400KV Brushless Outrunner Motor With Mount 10T

For: RC Aircraft / KKmulticopter 4-axle/6-axle Quadcopter UFO
Quantity: 1 Set (4 Pieces)



aeProduct.getSubject()

2. EMAX Simon K Multi-rotor 20A Brushless Speed Controller ESC

Constant Current: 20A
Input Voltage: 2-3 cell Lipoly
BEC Output: 5V/2A
Dimension: 52*26*7 mm



aeProduct.getSubject()

3. FC7x4.5 7045 CW CCW Propeller

Quantity: 2 Pair (2 Pcs CW + 2 Pcs CCW)
Note: The Propellers Have Black Yellow Red Green Orange Blue 6 Colors for Option, We Will Ship Randomly, If You Have Requirement, Please Leave Message When Ordering



aeProduct.getSubject()

4. APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in

APM is An Open Source Flight Control, Can You Play APM Well Depend On Individual Ability. Player Must Have Ability of Basic Understanding of Monolithic Integrated Circuit, C-Language, Knowledge of Electrical,Mechanical, and Also Needs a Certain Degree of Mental Capacity, Financialand Material Resources, Energy Support.If You'Re Not Ready, Then We Recommend That You Prepare Some Introductory Information First.
Features:
- Arduino Compatible!
- Can Be Ordered with Top Entry Pins for Attaching Connectors Vertically, or As Side Entry Pins To Slide Your Connectors In To Either End Horizontally
- Includes 3-axle Gyro, Accelerometer and Magnetometer, Along with A High-Performance Barometer
- Onboard 4 Megabyte Dataflash Chip for Automatic Datalogging
- Optional off-Board Gps with Compass.
- One of The First Open Source Autopilot Systems To Use Invensense's 6 DOF Accelerometer/Gyro Mpu-6000.
- Barometric Pressure Sensor Upgraded To Ms5611-01ba03, From Measurement Specialties.
- ATMEL'S Atmega2560 And ATMEGA32U-2 Chips for Processing and USB Functions Respectively.



aeProduct.getSubject()

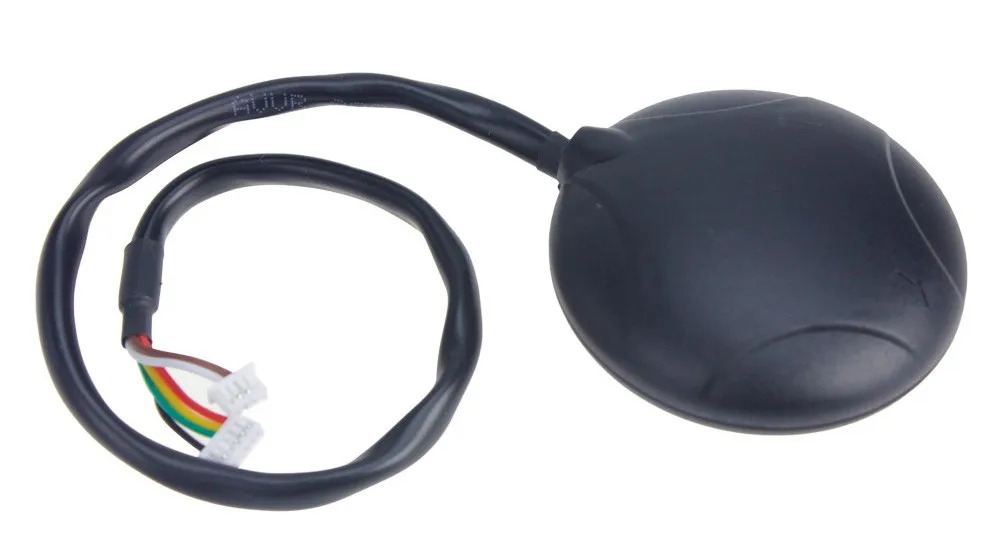

5. 6m GPS with Compass l5883 Protective Case 25cm Cable

GPS Features:
- Built-In Compass GPS Module
- Main Chip: 6M
- With Fast Satellite Searching Speed and High Precision
- Compatible With APM Serial Port and i2c Port
- Includes Round Plastic Shell
- Pre-Configured, Flashed With The Correct Settings, and Tested
- Super Bright Led,Blackplane with Standard MK Style Mounting Holes 45mm x 45mm
- Cable Included
- With l5883 Compass Cable Length In 25cm
- Dimensions: 53.5*53.5*15.5

Specification:
C/A Code,1.023mhz
Receiver Frequency:l1 [1575.42mhz]
Locate Performance
2d:3m(Average)
2d:2m(Average),with WAAS
Drifting<0.02m>
Accuracy:1us
Coordinate System:WGS84
Max Attitude Height:18000
Max Speed:515m/s
Tracking Sensitivity:161dbm
Capture Sensitivity:148dbm
Cold Start Time:38s Average
Warm Start Time:35s Average
Hot Start Time:1s Average
Capture Time:0.1s Average
Temperature:40 Centi Grade To +80 Centi Grade
Wide Power Supply Voltage:+3.5v~+5.5v

aeProduct.getSubject()

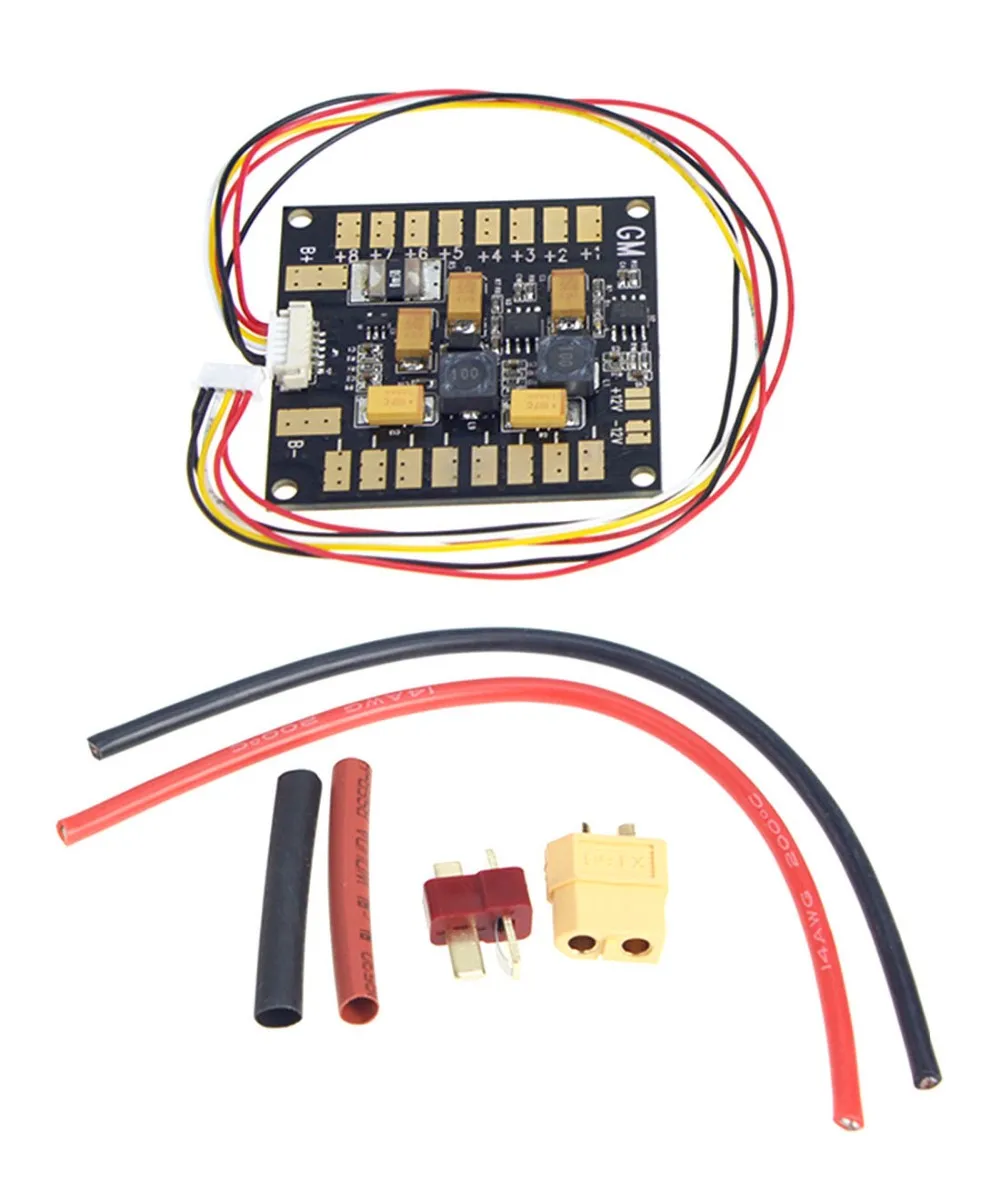

6. Multifunction Power Distribution Board 5.3V BEC

Note: It is DIY Kets, Recommend To Use 100W Iron To Welding.
Specifications:
Dimension: 55 * 55mm
Install pitch: 45 * 45mm
Output line: 6 way
Voltage input: 2S-6S
Voltage sampling: 10/1
BEC output: 5.3V (Avoid flight control's problem of insufficient voltage)
4~6S battery powered Support 2 group 12V output for Data Transmission and Camera Gimbal PTZ (12V output only support 4~6S,3S is not supported)

Package list:
1 * Current meter motherboard
1 * Red Silicone cord 15 cm
1 * Black silicone cord 15 cm
1 * XT60 Male plug
