JHEMCU RuiBet F4 1S-2S AIO Quadcopter Flight Control 12A ESC FPV 25.5*25.5mm Item NO.: F46520

JHEMCU RuiBet F4 AIO is a F4 1-2S AIO with built-in 12A quad brushless ESC, 2 serial ports (UART1,UART2), one I2C port, one SBUS interface (the serial port used for SBUS is RX2) and ws2812 interface . There are buzzer interface, camera plug interface.

Flight control parameters:

CPU: STM32F411

Gyroscope/Accelerometer: MPU6000

OSD: AT7456E

Barometer: yes

Black box: None

IIC: support

BEC: 5V

UART:UART1,UART2

USB: micro-usb

Size: 25.5x25.5MM M2

Receiver: ELRS,TBS,SBUS,IBUS,DSM2,DSMX

Support programmable LED like WS2812

Buzzer Support

Built-in current and voltage sensor

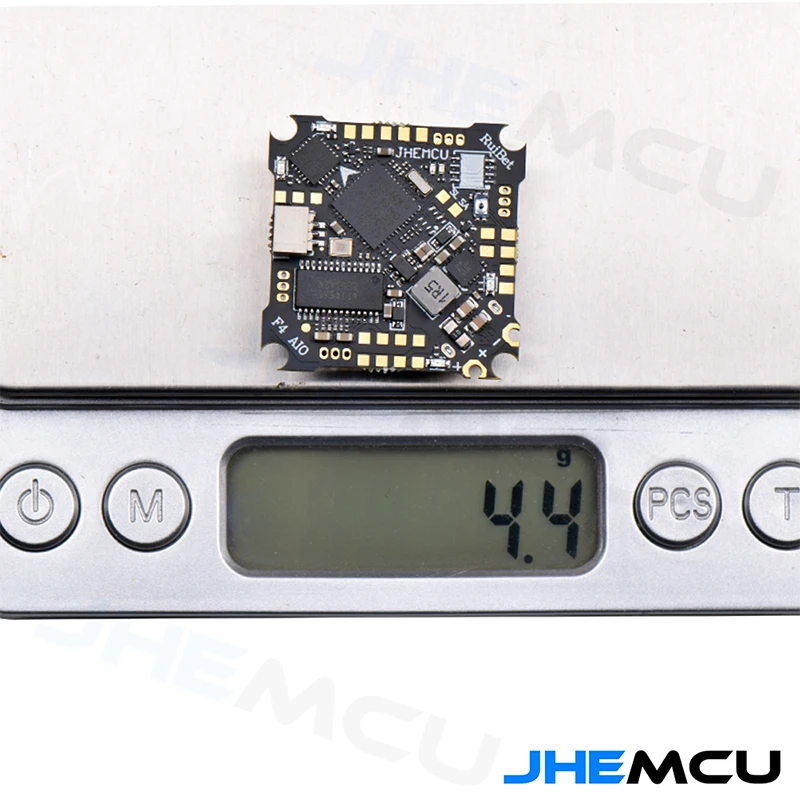

Weight: 4.4g

ESC Parameters:

Compatible with PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Input voltage: Lipo 1S-2S

Continuous Current: 12a

Firmware: BLHELI_S Z_H_30_REV16_7.HEX

Package List:

RuiBet F4 AIO*1

18awg wire*2

XT30*1

M2*6.5 Damping Ball*4

470UF/10V capacitor *1

2P plug cable*1
