Home>Computer Accessories>Intel I225 Chips 100/1000M/2500M RJ45 Network adapter PCIe PCI Express 2.5g Gigabit Etherent Network Lan Card

Intel I225 Chips 100/1000M/2500M RJ45 Network adapter PCIe PCI Express 2.5g Gigabit Etherent Network Lan Card Item NO.: F47824

Write a Review Sold (1)

US$ 11.59

Quantity: Stock ( 9999998 )

Intel I225 Chips 100/1000M/2500M RJ45 Network adapter PCIe PCI Express 2.5g Gigabit Etherent Network Lan Card

Product Name	Intel I225 Chips 100/1000M/2500M RJ45 Network adapter PCIe PCI Express 2.5g Gigabit Etherent Network Lan Card
Item NO.	F47824
Weight	0.085 kg = 0.1874 lb = 2.9983 oz
Category	Computer Accessories
Creation Time	2023-02-10

Intel I225 Chips 100/1000M/2500M RJ45 Network adapter PCIe PCI Express 2.5g Gigabit Etherent Network Lan Card

Feature:

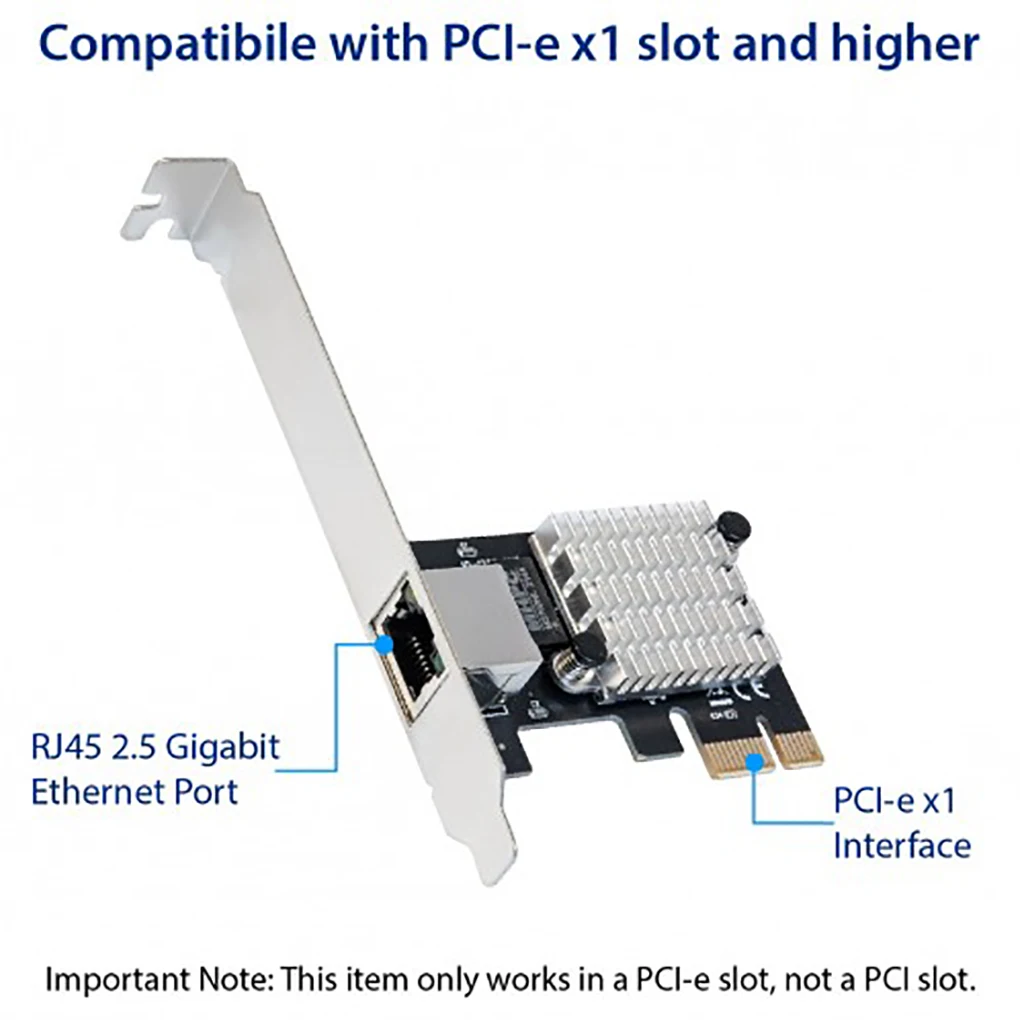

Supports PCI Express x1, x4, x8 or x16 socket

Integrated MAC/PHY supporting 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T 802.3

specifications

RJ45 connection ：Compatibility with cable lengths up to 100 meters using CAT5e, CAT6, or CAT6A.

PCI Express 3.1：5GT/s support for x1 width (Lane).

IEEE 802.3 autonegotiation

IEEE 802.3x and IEEE 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames

Multiple Queues: 4 Tx and Rx queues per device

Tx/Rx IP, SCTP, TCP, and UDP checksum offloading(IPv4 IPv6) capabilities

Active State Power Management (ASPM)

Full wake up support

ACPI register set and power down functionality supporting D0 and D3 states

MAC Power Management controls

Power Management Protocol Offload (Proxying)

Preboot Execution Environment (PXE) Support

TCP/UDP, IPv4 checksum offloads (Rx/Tx)

Transmit Segmentation Offloading (TSO) (IPv4, IPv6)

Low-Latency Interrupts

Receive Side Scaling (RSS) for Windows ：Up to four queues per port.

Support for packets up to 9.5KB (Jumbo Frames)：Enables faster and more accurate throughput of data.

Bus Type	PCI Express
Chipset ID	Intel I225
Interface	1xRJ45
Transfer Rate	2.5G
Energy Efficient Ethernet (EEE)	• IEEE 802.3az enabled for reduced power consumption. • Supports 10GBASE-Te (EEE of 10Mbps). Note: Enabled for 2.5,1GBASE-T, and 100BASE-TX in future release.
Environmental	• Operating Temperature 0 °C to 55 °C (32 °F to 131 °F) • Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F) • Storage Humidity Maximum: 90% non-condensing relative • humidity at 35 °C
OS Compatibility	Windows 10 Ubuntu 19.04 or higher
