HappyModel X12 AIO 5in1 1-2S Flight Controller Built-in BLHELIS 12A ESC OPENVTX 400mW For FPV Tinywhoop Toothpick Drone Item NO.: F47093 F47094 F47095 F47096 F47093-D2

Name: HappyModel X12 AIO 5in1 1-2S Flight Controller Built-in BLHELIS 12A ESC OPENVTX 400mW For FPV Tinywhoop Toothpick Drone
Brand: Happymodel
SKU: F47093 F47094 F47095 F47096 F47093-D2
Price: 50.99 USD
Availability: InStock

Write a Review Sold (21)

US$ 50.99

US$ 59.99 Save US$ 9.00 (15% Off)

Version: SPIELRS SPIFRSKY PNP Lite SPI FLYSKY

Quantity: Stock ( 19999995 )

Estimate Shipping Cost

Add to Cart

Happymodel X12 AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX support 1-2s

Product Name	HappyModel X12 AIO 5in1 1-2S Flight Controller Built-in BLHELIS 12A ESC OPENVTX 400mW For FPV Tinywhoop Toothpick Drone
Item NO.	F47093 F47094 F47095 F47096 F47093-D2
Weight	0.03 kg = 0.0661 lb = 1.0582 oz
Category	DIY RC Drone Accessories > Flight Control
Brand	Happymodel
Creation Time	2022-05-07

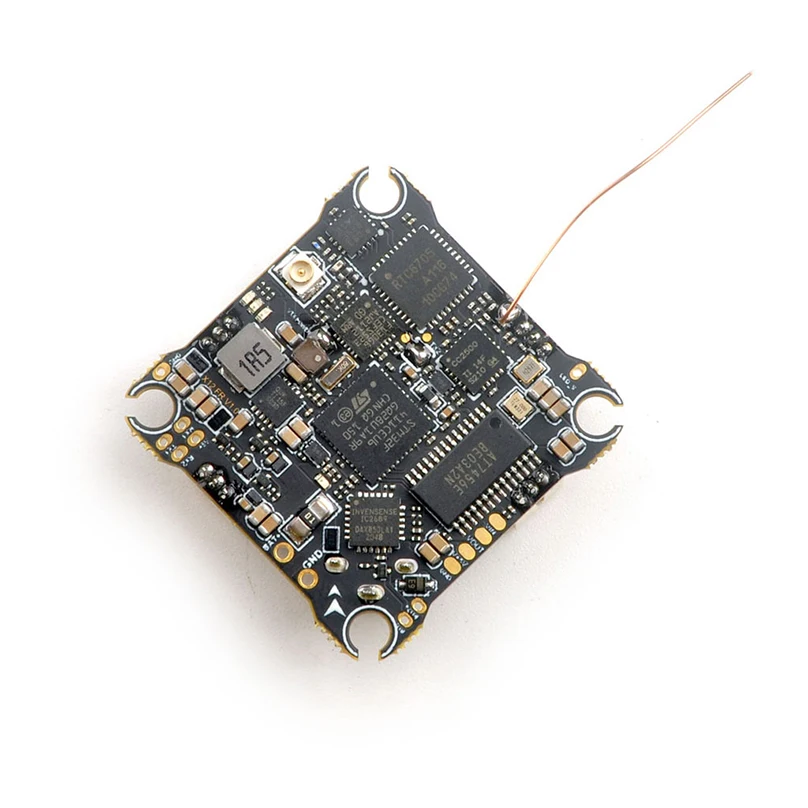

HappyModel X12 AIO 5in1 1-2S Flight Controller Built-in BLHELIS 12A ESC OPENVTX 400mW for FPV Tinywhoop Toothpick Drone

The world first 5-IN-1 AIO flight controller, OPENVTX(up to 400mw), 12A
Brushless Blheli_S ESC and Betaflight OSD coming out recently.

It comes with onboard SPI ELRS receiver
which support ELRS TX module 2.x firmware, and also provide other
receiver option like SPI Frsky receiver which support Frsky D8/D16 ,
REDPINE and SFHSS.

This is an amazing flight controller
for Brushless whoop. You could get unbelievable RX and VTX range by
using this flight controller.

Specifications:

Brand Name: Happymodel

Item Name: X12 AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX

Betaflight firmware target:

ELRS Version: CRAZYBEEF4SX1280

FRSKY Version:CRAZYBEEF4FR

PNP Version:CRAZYBEEF4DX

LITE Version:CRAZYBEEF4SX1280

VTX antenna: U.FL

Weight: 5.1g

**Size: 30mm30mm8mm**

Flight controller	X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280 X12 Frsky V1.0 flight controller built-in FRSKY 2.4G receiver Target: CRAZYBEEF4FR X12 PNP V1.0 flight controller without onboard receiver Target CRAZYBEEF4DX X12 LITE V1.0 flight controller built-in ELRS 2.4G receiver Target:CRAZYBEEF4SX1280 MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU6000 or ICM20689 or BMI270(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G,Frsky D8/D16 Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC	Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Z_H_30_REV16_7.HEX Default protocol: DSHOT300 Support Bluejay firmware When use Blujay firmware with 48khz, should set startup power to 1100/1200
Onboard SPI ExpressLRS 2.4GHz Receiver	Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn't flash separately ExpressLRS firmware
Onboard Frsky SPI D8/D16 receiver Version	SPI BUS receiver CC2500 RF Compatible Non EU transmitter D8 model Channels: 8ch No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support Support Frsky D8/ D16 , Redpine , SFHSS
Onboard 5.8g OPENVTX	Firmware version: OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U.FL
