FEICHAO VTX5848 LITE 48CH 5.8G Switchable VTX Video Transmitter Module OSD Control w FPV UVC Receiver/Antenna for FPV RC Drone

FEICHAO VTX5848 LITE 48CH 5.8G Switchable VTX Video Transmitter Module OSD Control w FPV UVC Receiver/Antenna for FPV RC Drone Item NO.: F39353-A/B/C/D/E/F/G//H/I/J/K/L

Write a Review
US$ 13.53
US$ 14.87 Save US$ 1.34 (9% Off)
Version
w FPV Watch w FPV Goggles w FPV RX Monitor w Black 60mm RP SMA w Red 60mm RP SMA w Red Short Antenna Black Short Antenna w Black StraightMMCX w Red StraightMMCX w Black AngleMMCX w Red AngleMMCX
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name FEICHAO VTX5848 LITE 48CH 5.8G Switchable VTX Video Transmitter Module OSD Control w FPV UVC Receiver/Antenna for FPV RC Drone
Item NO. F39353-A/B/C/D/E/F/G//H/I/J/K/L
Weight 0.05 kg = 0.1102 lb = 1.7637 oz
Category DIY RC Drone Accessories > FPV Monitor
Brand Feichao
Creation Time 2020-07-18

FEICHAO VTX5848 LITE 48CH 5.8G Switchable VTX Video Transmitter Module OSD Control w FPV UVC Receiver/Antenna for FPV RC Drone

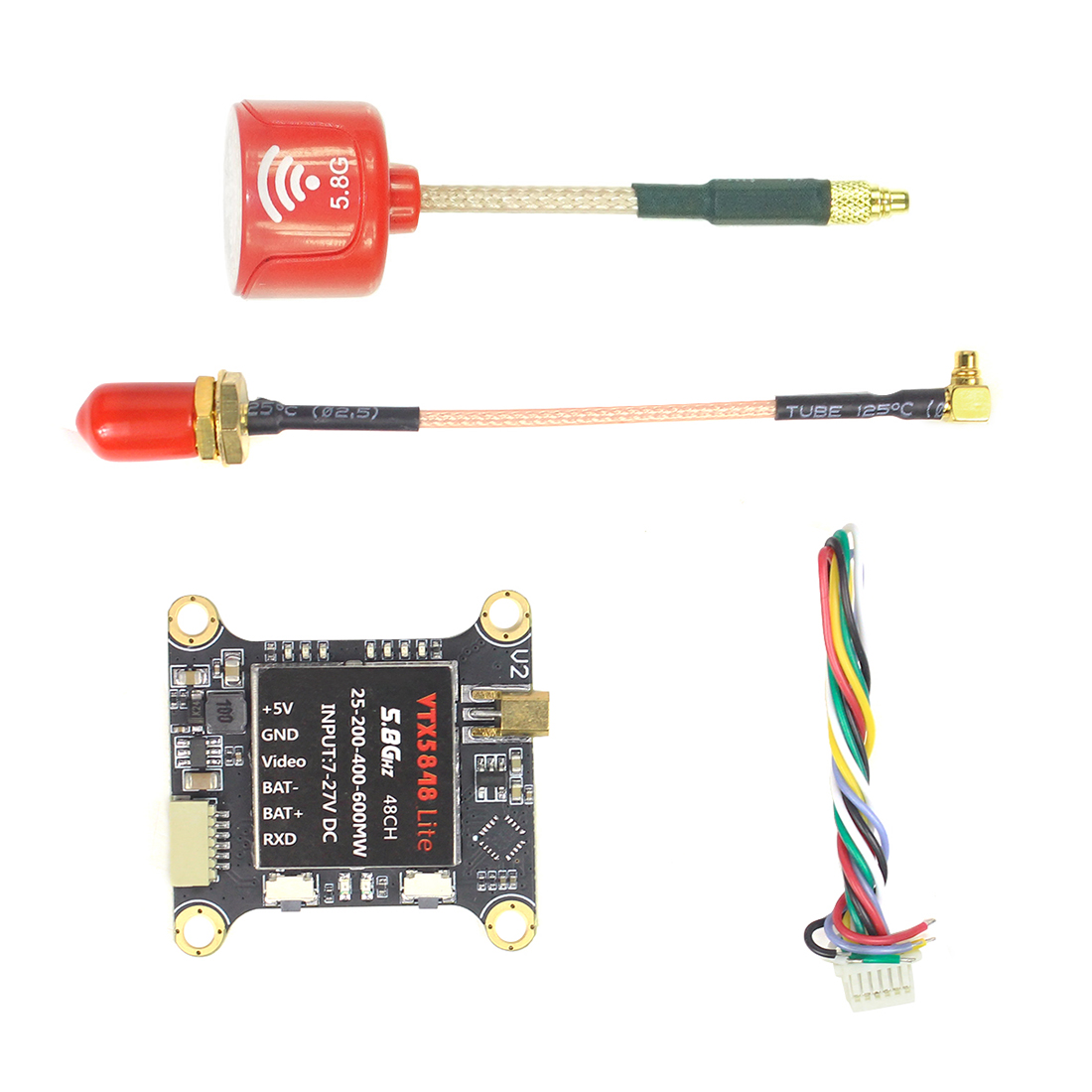

VTX5848 Lite VTX VTX Video Transmitter Module:

The Mini VTX5848 LITE Transmitter with high power transmitting and exquisite workmanship that can be connected to most FPV camera will enable you enjoy more FPV experience. It's perfect for mini drone and RC hobbyist.

Features:
Perfectly corresponds to mainstream flight control
The output power is stable, the transmission distance is far
Small size, 48 channels value, MMCX (transfer to SMA extension cable)
Powerful power chip, up to 27V input, output 5V / 1A low ripple, low interference
4 fast power switches, the current launch power 25mW200mW/400mW/600mW switchable

Specifications:
Item name: VTX5848 LITE image transmission module
Input voltage: DC 7V-27V
Input current: 16.4V (4S) 600mW = 360mA ± 10mA
Output voltage: 5V DC 1A
Power: 25mW, 200mW, 400mW, 600mW
The signal channel: 48 channels
Antenna Interface: MMCX (transfer to SMA extension cable)
Dimensions: 36 * 26 * 6mm  Hole: 30 * 30mm
Item weight: About 7g (does not include the antenna and plug line)
Frequency switching: manual button / OSD (at the same time support)

Kindly reminder:

There could be a few deviations due to manual measurement. Thank you for your attention
