90-130 Brushless Indoor Mini RC Racing Drone Electronic Kit PIKO BLX Mini F3 + FPV Transmission 25mw + Propellers + Props Guard

90-130 Brushless Indoor Mini RC Racing Drone Electronic Kit PIKO BLX Mini F3 + FPV Transmission 25mw + Propellers + Props Guard Item NO: F21698-A/F21698-B/F21698-C/F21698-D

US$ 63.32 (10% Off)
US$ 70.35 Save US$ 7.04
type:
with purple blades with green blades with blue blades with black blades
Remark:
Customized Requirements
Quantity:
Shipping Cost:
Estimate Shipping Cost
Specifications
Product Name 90-130 Brushless Indoor Mini RC Racing Drone Electronic Kit PIKO BLX Mini F3 + FPV Transmission 25mw + Propellers + Props Guard
Item NO F21698-A/F21698-B/F21698-C/F21698-D
Weight 0.2410 kg = 0.5313 lb = 8.5010 oz
Category DIY RC Drone Kit / RC Drone Accessories > Cable and connectors
Brand XT-XINTE
Creation time 2017-08-15

Detail

Packing list:

4 * 1104 4300KV 2s Brushless Motors

1 * blades(10pairs black / 4pairs purple / 4pairs green / 4pairs blue, 4options, please choose the one you want)

4 * props guards

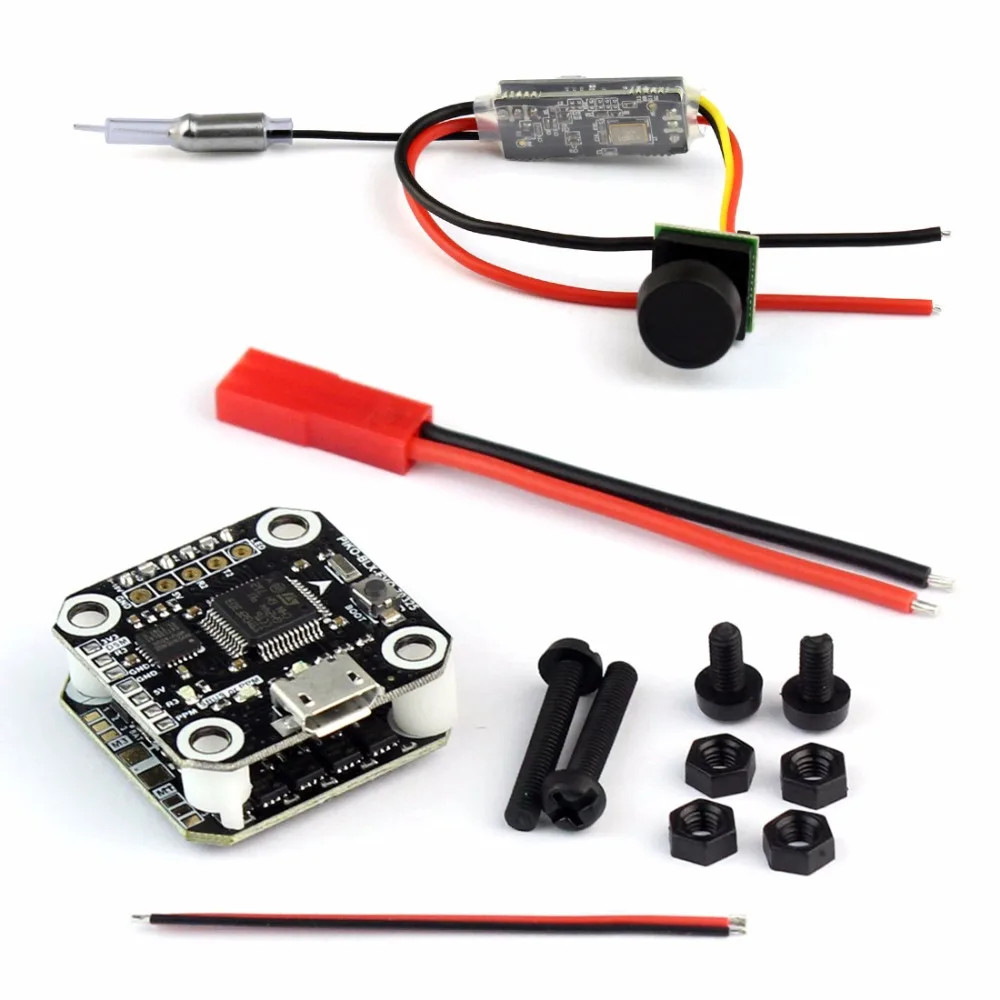

1 * mini PIKO BLX F3 Flight Control Tower 4 in 1 BLheIS 10A 2~3s ESC

1 * Q25 MINI VTX+CAMERA 25mw 16ch Transmitter 800tvl coms Camera

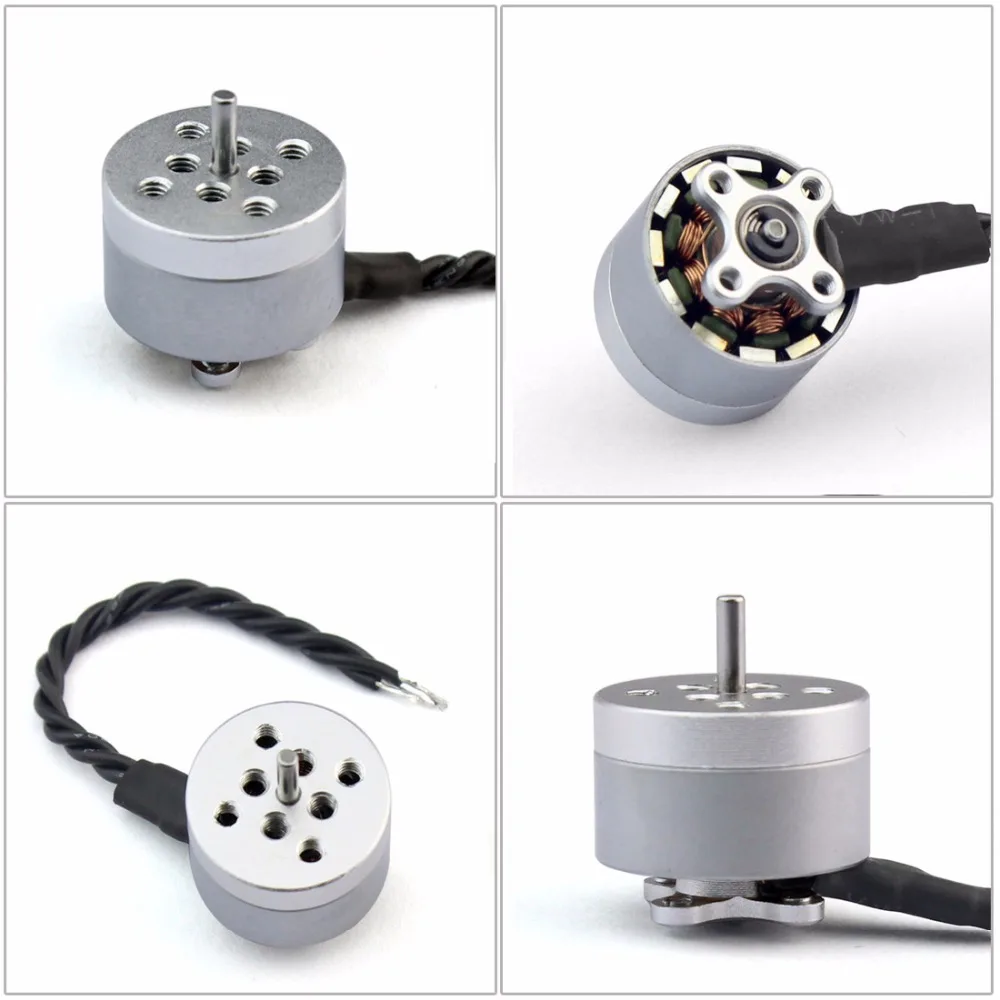

Motor details:

Motor size:

1, the motor diameter: 14.2mm;
2, the motor rotor length: 9mm;
3, the motor shaft diameter: 1.5mm;
4, the motor weight (including motor base): 5.5g;
5, the motor seat hole distance: 8.4mm;
6, the motor installation screws: 4 * M1.4 screws(NOT INCLUDED);

This motor is suitable for use in mini four-axis drones, such as Zerotech Dobby drone, DIY1-2S small four-axis, you can also be installed according to your needs in the fixed-wing small aircraft.

According to the need to use the measured parameters:
(A) 1S lithium 3.7V voltage measured data:
1, Blade: 4025,
    speed: 21280 RPM, the maximum tension: 50g, the maximum current: 2.0A, the maximum power: 7.4W;
2, Blade: 5030,
    speed: 16746 RPM, the maximum tension: 65g, the maximum current: 2.7A, the maximum power: 10W;
3, Blade: 6030,
    speed: 7170 RPM, the maximum tension: 72g, the maximum current: 3.1A, the maximum power: 11.5W;

 (B) 2S lithium 7.4V voltage measured data:
Blade: 3030
Speed: 25066 RPM, Maximum pull: 83g, Maximum current: 2.5A, Maximum power: 18.5W

ESC recommend:
XP-3a, for 1s lithium battery
Xp-7a, for 1-2S lithium battery

TB2Y4yApMxlpuFjy0FoXXa.lXXa_!!2669252953



Prop Guards details:

Material: PC
Weight: 1.5g/Pcs
For: 9mm Mounting h
Weight:1.5g/pcs
For: 9mm Mounting pitch 1102 / 1103 / 1104 / 1105 Motor
Fit for Propellers: Below 2.5" Propellers (including 2.5 inches)

Standard M2 * 6 screws, suitable for 1-1.5mm bottom plate, such as the thickness of the Plate is greater than 1.5mm recommended to choose a longer screw for installation, please be careful not to touch the motor coil installation, It is recommended to use screw glue when installing.



Mini PIKO BLX F3 Flight Control Tower 4 in 1 BLheIS 10A 2~3s ESC Deatails:

flight1

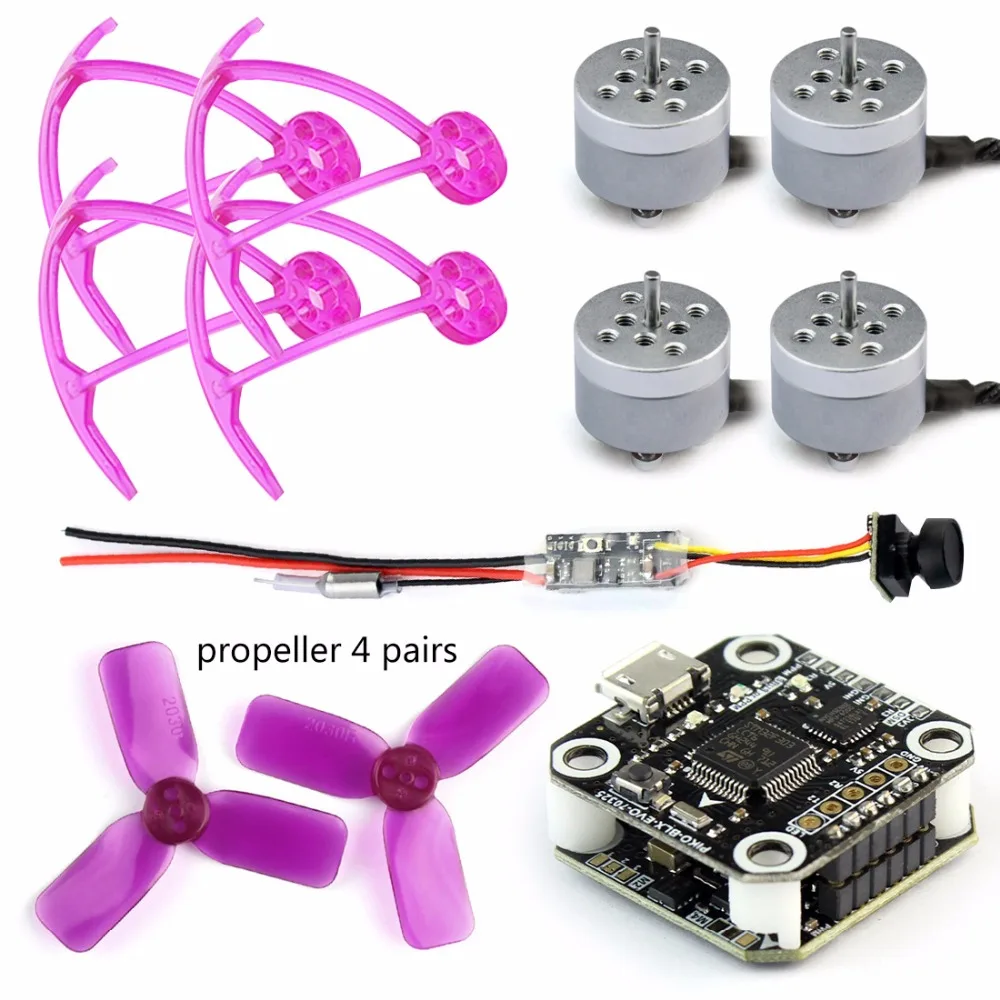

F21698-A-1-2-3

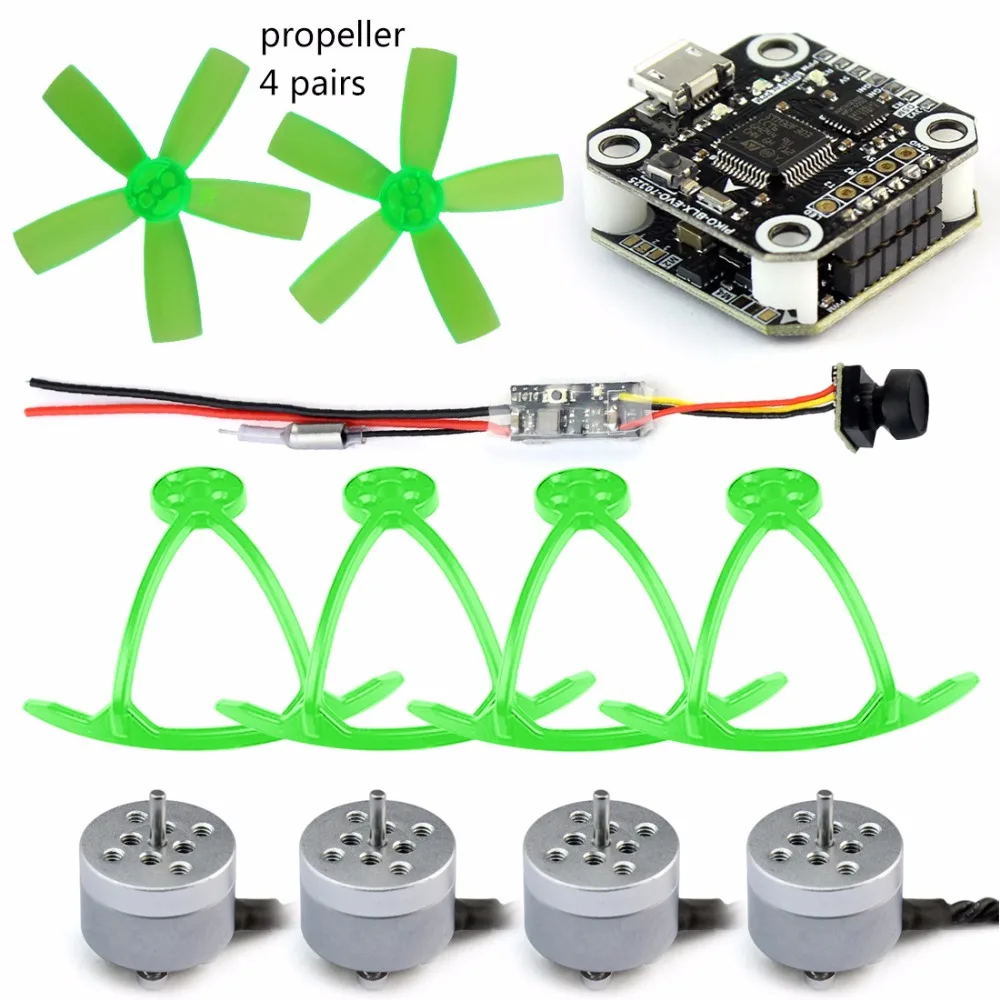

F21698-B-3

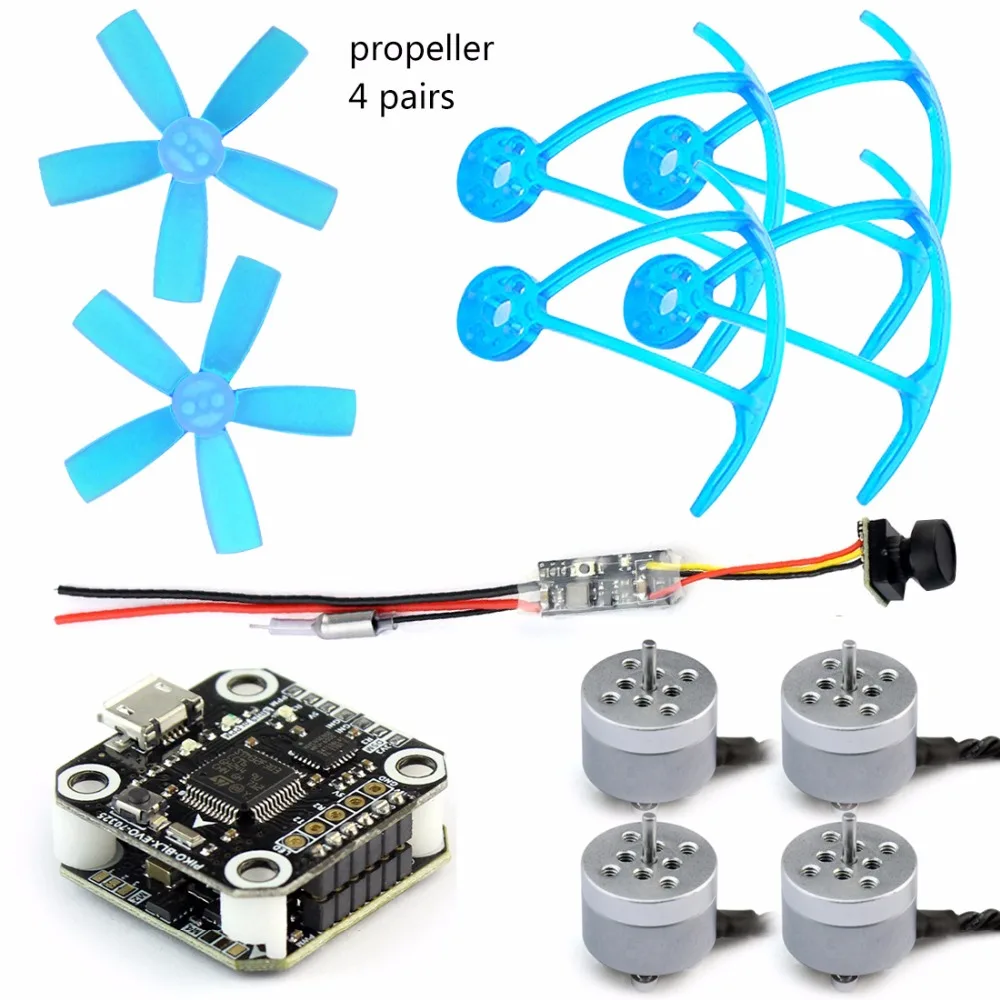

F21698-C-3(1)

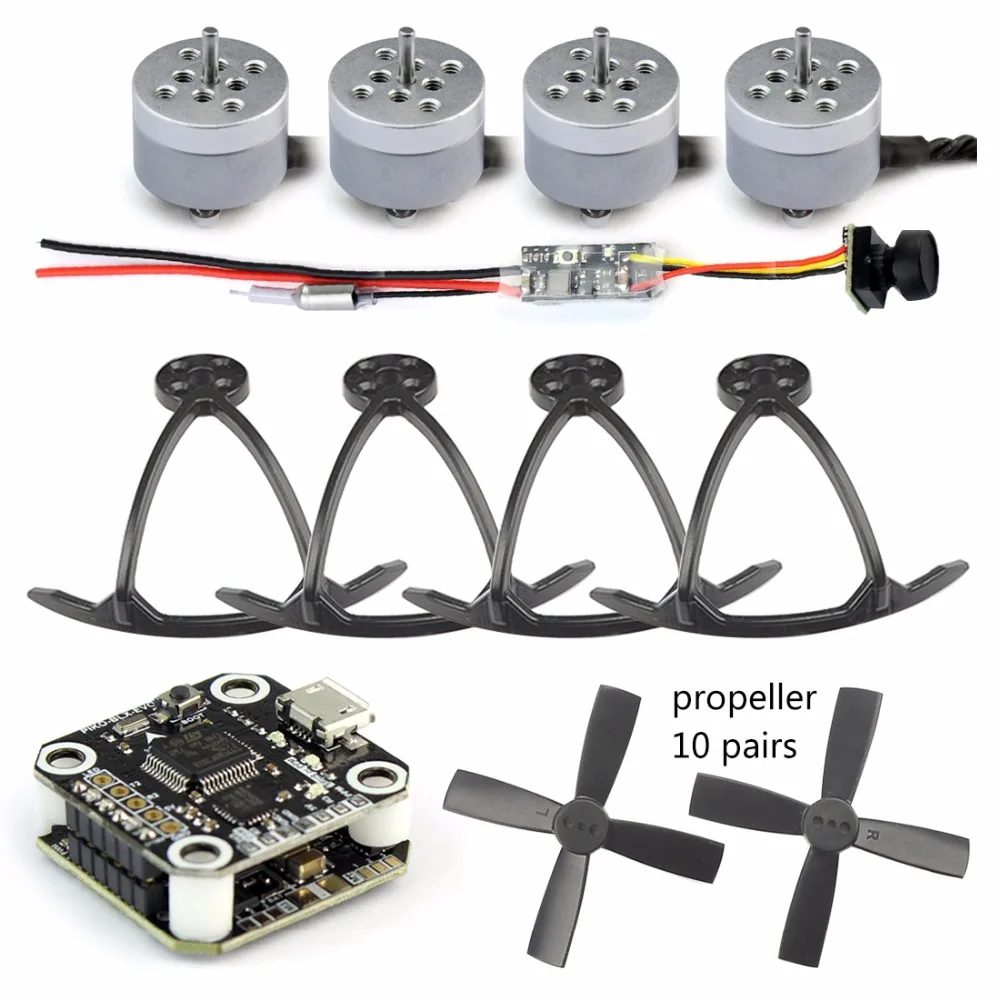

F21698-D-3
