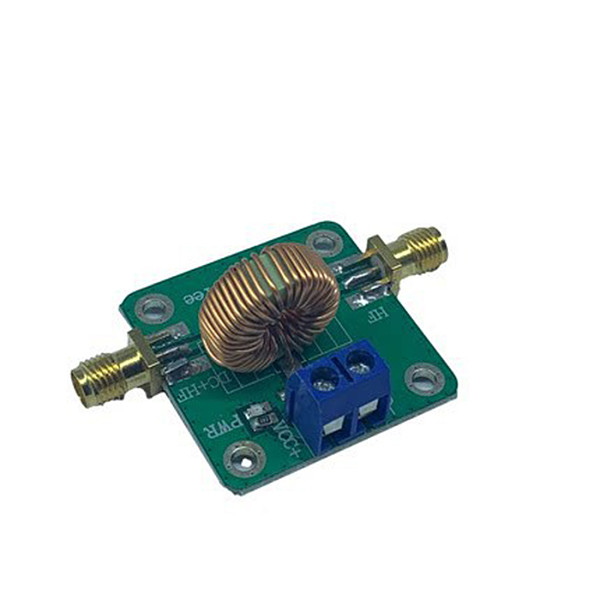

| Product Name | 0.2-180MHz RF Module DC Bias Isolator RF Microwave Flow Biasers For Broadband Amplifiers with SMA-K Female Connector |
| Item NO. | F46681 |
| Weight | 0.055 kg = 0.1213 lb = 1.9401 oz |
| Category | Consumer Electronics |
| Creation Time | 2022-03-29 |
RF microwave flow biasers, DC feeds
Uses:
1. RF power supply for active antennas
2. Output isolation of broadband amplifiers
3.Communication data injection through RF end
4. Imported high frequency low loss magnetic ring
Operating parameters:
1.Frequency range: 0.2 -180MHz
2. Insertion loss: 0.1dB@1MHz 0.4dB@100MHz
3. Max. voltage: 30V
4. Max. current: 3A
5. RF connector: SMA-K (external screw inner hole)
6. System impedance: 50 Ohm
7. External dimensions: 33mmx33mm without connector
Wiring method:
1.DC: External DC power supply
2. RF: RF signal end (this port can only transmit RF signal)
3.RF+DC: RF DC bias (this port can transmit RF and DC bias)
4.GND-: common ground for DC supply
5.VCC+: Power supply side of the DC supply
